DANA Spicer Transmission Slip Yoke 1350 Series - 3-3-4281X - 3-3-4281X
Details

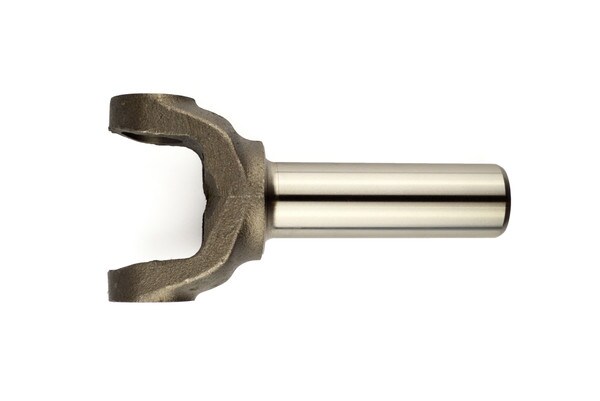

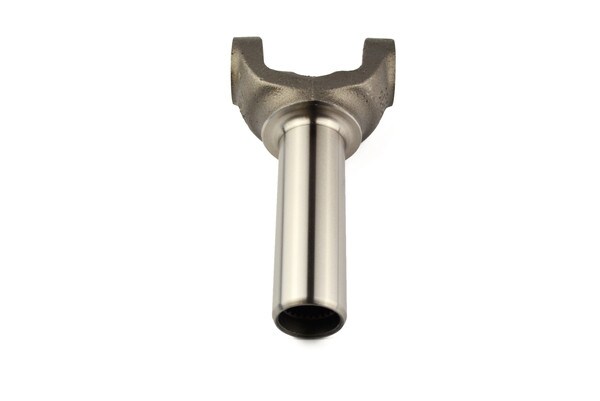

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This 1350 Series slip yoke assembly has 3638 splines and a 1.502 in. hub diameter.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
135-N-3-4281X, 135N34281X, 3-3-3111X, 3.3.4281X, 333111X, 334281X, 4281X, D334281X, E334281X, SP334281X, TWD334281X

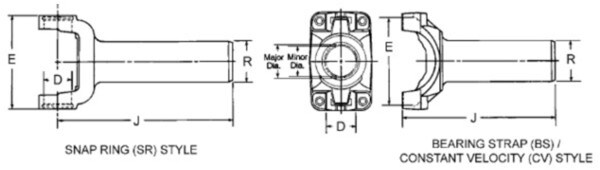

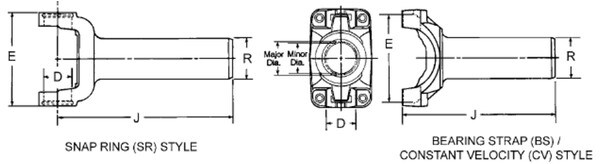

Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913229580 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | MX |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |
| Bearing Cap Diameter (D) In.: | 1.188 |
| California Proposition 65: | WARNING: Cancer - www.p65warnings.ca.gov |
| Counter Bore Depth: | 0.41 |
| Counter Bore Diameter: | 1.218 |
| Hub Diameter (R) In.: | 1.502 |
| Involute: | Y |
| Material: | Steel |
| No. Of Splines: | 26/27 I |
| Outside Yoke Dimension (E) In.: | 3.875 |
| Prop 65: | Yes |
| Series: | 1350 |
| Spline O.D. (STD): | 1.176 |
| Style: | SR |
| To End Of Spline (J) In.: | 6.94 |
| Description (Long Product Description): | Drive Shaft Transmission Slip Yoke-1350 Series |
| Description (Short Product Description): | Trans Slip Yoke |
| Description (Extended Product Description): | Drive Shaft Transmission Slip Yoke-1350 Series |
