DANA Spicer E1002 Steering King Pin Set - 328349 - 328349
Details
*THIS PART IS NON-RETURNABLE*
Product Description
Designed for minimal downtime and fewer maintenance intervals. Engineered, manufactured, and field-tested to ensure the application-specific demands of your vehicle. Trusted by OEMs and fleets.

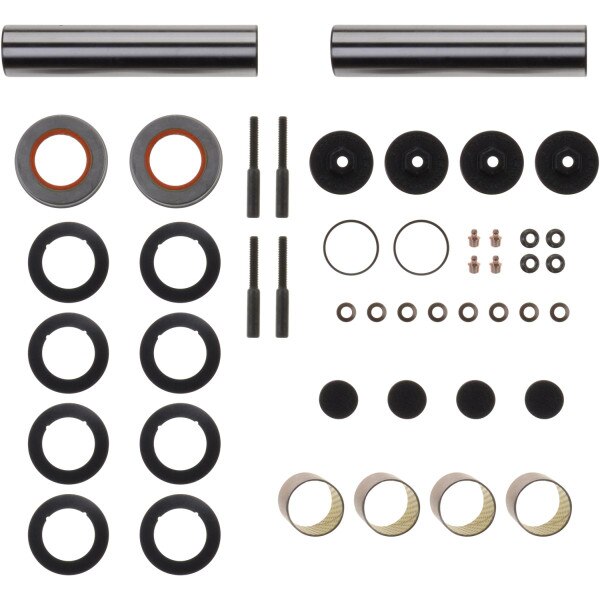

This king pin kit is designed for Spicer E1002-1462 models and includes: Eight (8) Steering Knuckle Stud Washers, Two (2) Steering King Pin Sets, Eight (8) Steering Knuckle Spacers, Two (2) Steering Knuckle Bearings, Four (4) Steering Knuckle Nuts, Four (4) Suspension Knuckle Bushings, Eight (8) Steering King Pin Shims, Four (4) Air Suspension Line Fittings, Four (4) Steering Knuckle Seals, Four (4) Steering Knuckle Caps, One (1) Technical Data Sheet, One (1) Instruction Sheet.
It features 9 pin type with a length of 9.06 inches and a diameter of 1.87 inches. Its bushing (806334)material is made from DX Garlock and is pre-sized. Bushing OD measures 2.06 inches and the length is 1.82 inches. With 4 total H drawkeys measuring 4.23 inches and 3.73 inches respectfully. Thrust bearing ID measures 1.885 inches, thrust bearing OD measures 3.276 inches and the thrust bearing height measures .937 inches.
This part is under warranty for twelve (12) Months/1 Year; some exceptions may apply depending on application and part. Please contact our customer service team for warranty details.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Features
- For E1002-1462 axle models
- Designed for minimal downtime and fewer maintenance intervals
- Engineered, manufactured, and field-tested to ensure the application-specific demands of your vehicle
- Trusted by OEMs and fleets
Includes
Eight (8) Steering Knuckle Stud Washers, Two (2) Steering King Pin Sets, Eight (8) Steering Knuckle Spacers, Two (2) Steering Knuckle Bearings, Four (4) Steering Knuckle Nuts, Four (4) Suspension Knuckle Bushings, Eight (8) Steering King Pin Shims, Four (4) Air Suspension Line Fittings, Four (4) Steering Knuckle Seals, Four (4) Steering Knuckle Caps, One (1) Technical Data Sheet, One (1) Instruction Sheet
Warranty
Twelve (12) Months/1 Year; some exceptions may apply depending on application and part
Cross Reference
Dana 328349 Cross References
2719-328347, 2719-328349, 2719328347, 2719328349, 300-305, 300-306, 300305, 300306, 308-305, 308305, 328347, 328347ETN, 328349ETN, 460.534B, 460534B, 50.147.05, 5014705, 503701, 503701ETN, 70.147.05, 70.148.05, 7014705, 7014805, 7843-7014705, 78437014705, 8004C, 89-030, 89030, 906638, DS328349, ETN328347, ETN328349, FAK5500, FAK5507, FKP-144-B, FKP144B, FLTKP5500, HDV147, HKP3450, K147E, K148E, KB868, KPK3002, NRK14705, NRK147E, NRKRS7014705, OTR147E, PP147E, R201327, R202006, R203038, S-13982, S-13983, S13982, S13983, SKB-717PS, SKB14705, SKB14705ATR, SKB717PS, SKS14705, SP328347, SP328349, SPI-328347, SPI-328349, SPI328347, SPI328349, STEK147E, STM7014705, ZBP0328347, ZBP0328349, ZCPK147E
Specifications
| Brand | spicer |
| MPN | 328349 |
| VMRS | 011001010 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | For E1002-1462 axle models. Designed for minimal downtime and fewer maintenance intervals. Engineered, manufactured, and field-tested to ensure the application-specific demands of your vehicle. Trusted by OEMs and fleets. |
