DANA Spicer End Yoke Assembly SPL90 39 Spline - 9042511X - 9042511X

Product Description

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you.

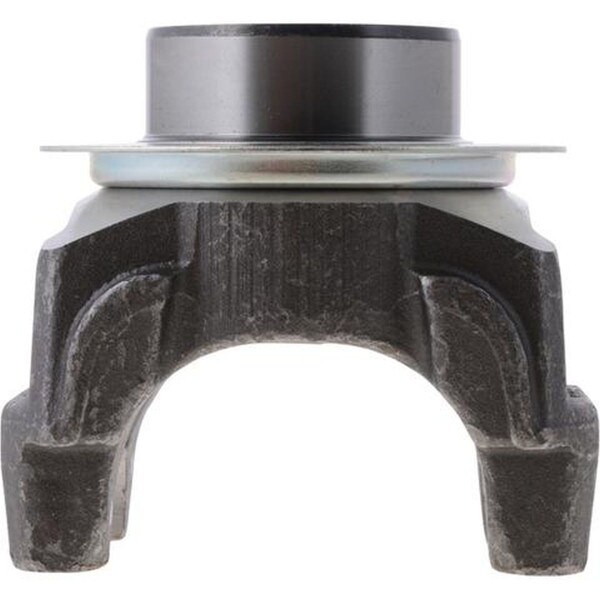

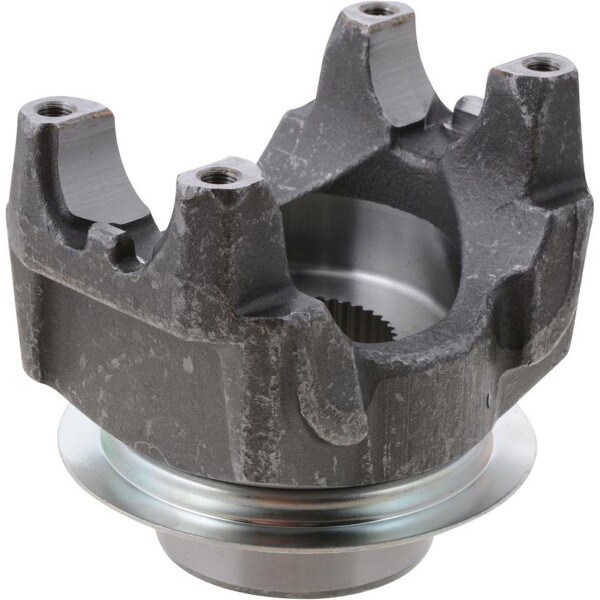

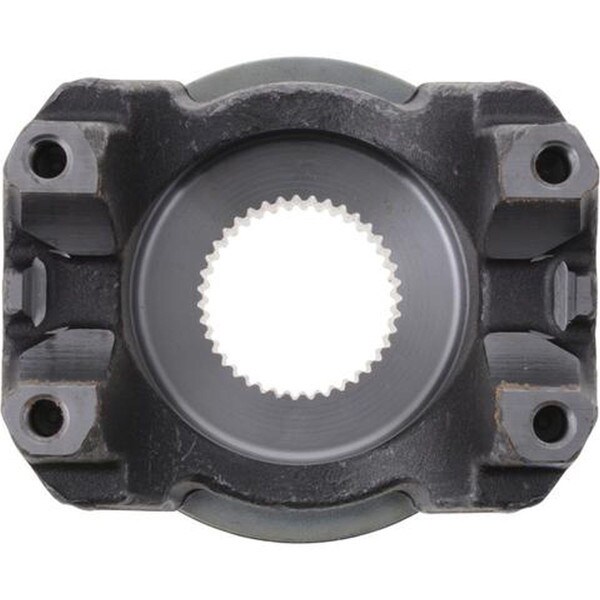

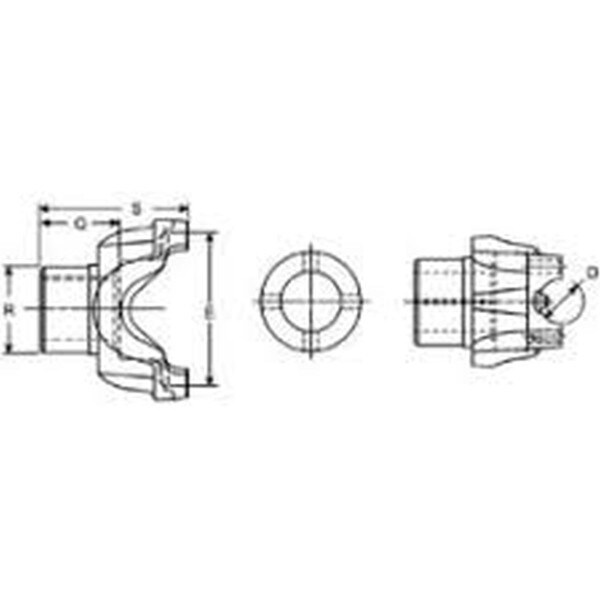

This involute splined hole SPL90 Series end yoke assembly made from steel has 39 splines, a BS yoke style and a 3.0 in. hub diameter. Outer yoke dimension is 5.375 inches and the yoke bearing dimension is 1.625 inches. Major diameter measures 2.024 inches.

Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.

Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.

Features

• SPL90 Series
• 39 splines
• BS yoke style
• 3.0 in. hub diameter

Includes

One (1) end yoke assembly, including slinger/plug

Warranty

1-3 years depending on vocation and part category. See Dana Spicer warranty guide for more information.

Cross Reference

90-4-251-1X, S-28128, 1689520C91

Specifications
