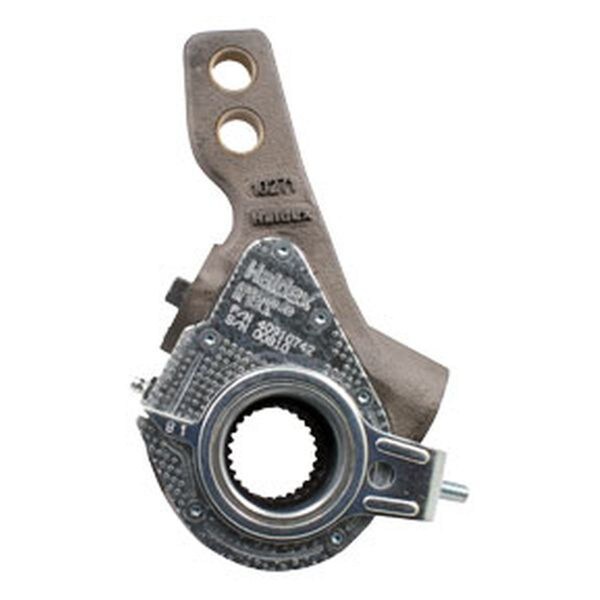

Haldex AA1 Clearance Sensing Automatic Brake Slack Adjuster Kit - 40010140
Details
Product Description
One of the best ways to avoid wear and tear on all of your brakes, is to have a high-quality Automatic Slack Adjuster. Acting as a lever, ASAs connect the actuator or the spring brake chamber to the camshaft. This compensates for the gradual wear and tear of the brake drum and shoe lining while keeping pace with the actuator's stroke. Automatic Slack Adjusters are one of the most reliable tools in measuring potential issues with your brakes, while getting the best out of them at the same time.
This Haldex AA1 Clearance Sensing Automatic Slack Adjuster makes the most consistent and precise gradual adjustments for optimum lining-to-drum clearance. Clearance Sensing slack adjusters keep brakes unaffected by deflection or thermal expansion. This specific ASA has a 5 or 6 inch arm length, is built with 28 splines with a spline diameter of 1.50 inches. It's compatible with a body angle of 34 degrees. It's control arm also makes for flexible application coverage. For Standard Drive Axel Brakes.
This product comes with a 6 year, 1 million mile warranty.
Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.
Read More About Slack Adjusters
Click here to read more about Slack Adjusters.
Features
- 1.50 inch, 28 teeth Clearance Sensing Automatic Brake Adjuster
- Control Arm makes for flexible application coverage
- Clearance Sensing adjustment type keeps brakes unaffected by deflection or thermal expansion
- Consistent and precise gradual adjustments make for optimum lining-to-drum clearance
- 5 or 6 inch Arm Length
- 34 degree Body Angle
- 6 year, 1 million mile warranty
Includes
One (1) Automatic Slack Adjuster Without Clevis
Warranty
6 year, 1 Million Mile Warranty
Cross Reference
0034286, 10-400-10140, 10140, 10140HDA, 1040010140, 106900, 106902, 107110, 107112, 107275, 1332830, 1352830, 1666360C91, 22103, 25QD259P2, 25QD259P4, 25QD260M, 25QD260M5, 25QD410, 25QD410P5, 289312/13, 28931213, 289313, 313577, 3398-AS1039, 3398AS1039, 3523702, 3946256, 400-10067, 400-10100, 400-10140, 40010067, 40010100, 40010140, 40010140-MD, 40010140M1D, 40010140MD, 40010183, 40020234, 409-10093, 409-10125, 409-10146, 409-10149, 409-10167, 409-10178, 409-10225, 409-10241, 409-10314, 409-10343, 409-10360, 409-10404, 409-10405, 409-10426, 409-10428, 409-10457, 409-10531, 409-10552, 409-10561, 409-10566, 409-10615, 409-10680, 409-10732, 409-10741, 409-10742, 409-10816, 409-10858, 409-10868, 409-10896, 409-10946, 409-10947, 409-10983, 409-10984, 40910093, 40910125, 40910146, 40910149, 40910167, 40910178, 40910225, 40910241, 40910314, 40910343, 40910360, 40910404, 40910405, 40910426, 40910428, 40910457, 40910531, 40910552, 40910561, 40910566, 40910615, 40910680, 40910732, 40910741, 40910742, 40910816, 40910858, 40910868, 40910896, 40910946, 40910947, 40910983, 40910984, 480 BRUCB22103, 480 MTRR801074, 500-10140, 50010140, 506272, 509-10093, 509-10149, 509-10225, 509-10241, 509-10314, 509-10404, 509-10405, 509-10426, 509-10566, 509-10742, 50910093, 50910149, 50910225, 50910241, 50910314, 50910404, 50910405, 50910426, 50910566, 50910742, 516160, 5396-40010140, 539640010140, 65173, 65175, 65176, 6925A, 6925B, 767653143361, 7883-40010140, 788340010140, 801354, 808129, 808132, 808142, 808166, 808179, 808685, 808746, 809614, 810601, 810603, 815787, 815806, 815828, 815829, 818223, 818991, 819675, 825703, 8316721, A-3275-X-596, A1-3275S1085, A1-3275T1086, A10-3275T592S, A10-3275Z598S, A103275T592S, A103275Z598S, A12-3275T592S, A12-3275Z598S, A123275T592S, A123275Z598S, A13275E1279, A13275S1085, A13275T1086, A19-3275-S-1059, A193275S1059, A2-3275K1051S, A2-3275T592S, A2-3275U1087S, A2-3275V1088S, A2-3275Z598S, A20-3275-S-1059, A203275S1059, A23275B600, A23275B600S, A23275K1051S, A23275T592, A23275T592S, A23275U1087S, A23275V1088S, A23275V594, A23275V594S, A23275Z598, A23275Z598S, A23849, A3-3275B1042S, A3275S1059, A3275X596, A33275B1042S, A44-3275-S-1059, A443275S1059, A453275S1059, ABPN42AS40010140, ACCAS1141, AS1001, AS1039, AS1041, AS1139, AS1141, AS1173, ASH40010140, BBH-RB-10140, BBHRB10140, BG40010140, BNDK041877, BP10140, BW065175, BW065176, BXK041877, CI22103, CI221A3, CS52321, CS52343, CS52355, CS56012, CS56039, E-146K, E-149K, E-167K, E-167K1, E-234K, E-235K, E-241K, E-6904, E-6925, E-6925A, E-6925B, E-6993, E-6993A, E146K, E149K, E167K, E167K1, E234K, E235K, E241K, E6904, E6925, E6925A, E6925B, E6993, E6993A, ECE6925B, EIE6925, EIE6925A, EIE6925B, ET815806, EUE6925A, EUE6925B, F2HS2308BA, FLT40010140, FLTAS1141, FRL 42005322, GHE6925B, GT-56140, GT56140, GTA-40010140, GTA40010140, GUN AS1039, GUNAS-1141, GUNAS1039, GUNAS1141, HA-400-10140, HA40010140, HAE40010140, HAL40010140, HB40010140, HDV-10140, HDV-65175, HDV10140, HDV175P, HDV65175, HDX400-10140, HDX40010140, HE40010100, HE40010140, HSA-5041, HSA5041, HX400-10140, HX40010140, HZ40010140, HZ40910405, K020316, K041877, K041877BXW, KN52310, KSA10140, M807024, MB22103, MB22183, MB22953, MB40010140, MBI40010140, MD40010100, MD40010140, MI40010100, MI40010140, MID40010140, MK22103S, MK22103SG, MK22106S, MK42106S, MK42106SH, MSE6925B, N42AS, OTR OTR10140, OTR-10140, OTR10140, OTR65175, P0065175, P0065176, P065175, P065176, PL-10140, PL10140, PROSA56140, R801074, R801077, R801078, R802400, R802401, R802402, R802403, R802410, R802411, R802412, R802413, R802414, R802415, R802416, R802417, R802486, R802487, R802490, R802491, R806024, RB-10140, RB10140, S-23849, S23849, SA00205, SA00206, SA04801, SA08101, SA08401, SA10100, SA10801, SA11101, SA56140, SAB40010140, SAP10140, SAS1016, SAS1018, SAS1039, WA10140, ZBRAS1039, ZBRAS1139, ZBRAS1141, ZSA40010140, ZY40010140, ZZ40010140
