Gabriel GasSLX WCTA Shock - 89430

Product Description

Shocks are an important component of a truck's suspension system. They take the "beating" from road instabilities and keep vehicles grounded. Driving with bad shocks can be uncomfortable for drivers and create unpredictable accidents during the long-haul trip.

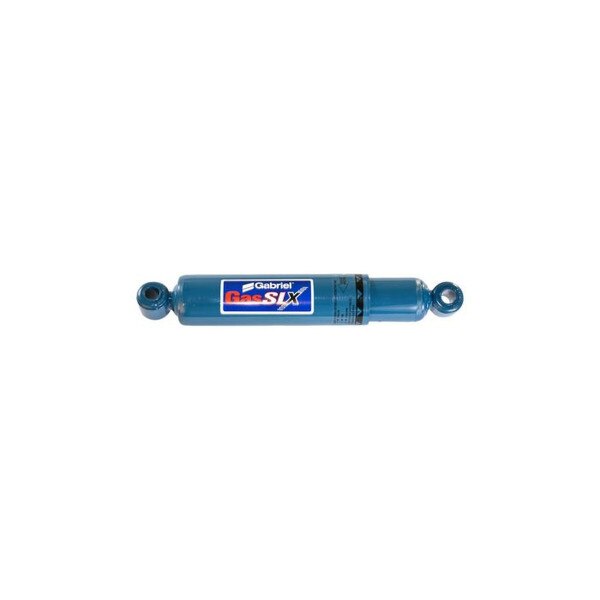

This blue Gabriel shock absorber is part of the GasSLX series. It is designed to fit WCTA Series dump trailers with air suspension vehicles. Its unique gas cell design reduces fade and increases ride comfort and offers three adjustable settings: regular, firm and extra firm to deliver customizable comfort and suit ride controls. Additionally, this GasSLX shock has a robust multi-lip seal for greater fluid retention and high-temperature performance. It contains a dust tube and recoil cutoff. It is important to note that for the GasSLX Series, forces are at the "Firm" (F) Setting. This shock has a rebound of 1462 pounds and compression of 279 pounds. It contains a 1-5/8 inch bore size and a stroke measurement of 9.53 inches. Lastly, it has compressed to extended length measurements of 15.39 inches to 24.6 inches.

Gabriel Fleetline shocks come with a 12 month or 100,000 mile warranty.

In 1907, Gabriel invented the original automotive shock absorber; and they continue to be one of the most trusted names in the industry for quality shocks.

Features

• Designed to fit WCTA Series dump trailers with air suspension vehicles
• Contains a dust tube and recoil cutoff
• Rebound of 1462 pounds and compression of 279 pounds
• 1-5/8 inch bore size
• Stroke measurement of 9.53 inches
• Compressed to extended length measurements of 15.39 inches to 24.6 inches

Includes

One shock absorber

Warranty

12 months or 100,000 miles.

Cross Reference

03-1106460, 10-13051-001, 10-13776-000, 10-13859-000, 10-85005, 1013051001, 1013776000, 1013859000, 1085005, 12051176, 12128, 1253069B000, 1275943B, 134134C, 14392, 14396, 14QK-392AM, 14QK-392AM3, 14QK-392BM, 14QK-392BM3, 14QK-392M, 14QK-396, 14QK-396M, 14QK392AM, 14QK392AM3, 14QK392BM, 14QK392BM3, 14QK392M, 14QK396, 14QK396M, 16-14667-000, 1613957000, 1614667000, 1615817000, 1618708000, 16771, 16773, 16779, 1707405, 17358-01, 1735801, 17408-01, 1740801, 1745500, 19495-01, 1949501, 2012501, 2012601, 2029200C91, 20887, 21497-01, 2149701, 22002293, 22007701, 22012095, 22012166, 25436, 25625743, 290460, 301366, 31106460, 315399, 315546, 3171462, 3192890, 3199940, 341617, 345613, 345618, 37301-0018, 373010018, 373013405, 3919902, 3919916, 3919931, 3919940, 3945816, 3U2Z18124BV, 3U2Z18124BW, 3U2Z18124JAA, 3U2Z18125DA, 406967, 410040, 471700000000, 471700000000000, 471700005079, 472000000000, 47200000000000, 47902-22, 47902-3, 4790218, 4790222, 479023, 48500-3710, 485003710, 485003710A, 4885030, 4940606, 4940662, 4975497, 508-30, 50830, 510019, 517-05001-23, 5170500123, 550-13, 550-73, 55013, 55073, 557014, 57306833, 57306969, 57324-3, 573243, 57366833, 57645, 58059, 58061, 59020, 59032, 59040, 5HA994 MTM, 5HA994MTM, 5U2Z18V124AHA, 63300, 650110, 651012, 65110, 65110M, 651116, 65421, 659300, 665115, 665118, 665198, 665405, 665531, 665533, 66554540I, 665727, 665784, 665969, 66833, 66833M, 66833MM, 66878, 66897, 66969, 671921, 671931, 680281, 680464, 680616, 727602, 727619, 727621, 728617, 728623, 728632, 83122, 83126, 83176202, 83176214, 83176237, 83202, 83218, 83221, 83310, 85005, 85011, 85030, 85916, 89430, 89440, 90044001, 90044626, 90044679, 90045096, 90045175, 90045384, 90045418, 90045433, 90045504, 921227, A-20887, A-2230, A-2232, A-4084, A20886, A20887, A2218, A2230, A2232, A4084, A83126, A85005, A89430, AA502, AA504, AMS 600102, AMS 600172, AMS600102, AMS600172, AMS650110, AMS650421, AMS65110, AMS660102, AMS660172, AR-134-C, AR134C, AS1086, AS30698, AS3069B, AS485G, AS575B, ASH1130, ASH1131, ASH1132, ASH1135, ASH1155, ASH23454, ASH23458, ASH364, ASH394, ASH684, ASH706, ASHV1015, ASHV1025, ASHV1049, ASHV1050, AT546, AT568, AT713, AT715, AX-97A, AX97A, B-25436, B25436, CAT733, CAT760, CAT761, CAT972, CAX-833, CAX-894, CAX833, CAX894, CLT109, CLT113, DAY34183201, DP34183201, DPM65110, DPM66833, DPM66897, DPM66969, E3122, E3130, E66833, E83201, E83202, E83218, E83221, E85005, E85011, E85030, E89430, EAE89430, EIE3122, EIE3130, EIE66833, EIE83202, EIE83218, EIE83221, EIE85005, EIE85030, EIE89430, EIEMN65110, EIEMN66833, EIEMN66969, EMN65110, EMN66833, EMN66897, EMN66969, EMN6833, EMNEMN65110, EU65110, EU66833, EU66969, EU85030, EUE83201, EUE83202, EUE83221, EUE85005, EUE85011, EUE85030, EUE89430, EUEMN65110, EUEMN66833, EUEMN66897, EUEMN66969, EUEMN6833, EUEMNEMN65110, EUSA65110, EUSA66833, EUSA66897, EUSA66969, F0HT18080AA, F0HZ18125A, F65110, F66833, F66897, F66969, F6HT18045AA, F6HT18045CC, F6HT18045EC, F6HT18045GC, F6HT18045HB, F6HZ18124C, F6HZ18124E, F6HZ18124F, FF66833, FLF65110, FLF66833, FLF66897, FLF66969, FLS-83126, FLS-85005, FLSD66833, GSX-89430, L57645, L59020, L59040, LT66833, LTL57645, LTL59020, LTL59040, M65110, M66833, M66897, M66969, MBSA65110, MBSA66833, MBSA66969, MG202447, MI65110, MI66833, MI66969, MISA65110, MISA66833, MISA66884, MISA66897, MISA66898, MISA66969, MISA6833, MN65110, MN66833, MN66833MM, MN66897, MN66969, MN6833, MN6897, MN6969, MNEMN65110, MNEMN66833, MNEMN66969, MNEMNEMN65110, MNSA65110, MNSA66833, MNSA66969, MO65110, MO66833, MO66969, MO6833, MO6969, MON66969, MON6833, MR66833, MS65110, MS66833, MS66969, MS6833, MS6969, MSF66833, N65110, N66833, N66897, N66969, N6833, NEW900-44-626, NEW90044626, NS500699, NW57306833, NW57306969, NW57366833, NW65110, NW66833, NW6833, NW6897, NW90044626, NW90044679, NY90044626, RC SA5005, RCSA5005, RWAS3069B, RWAS575B, S-20887, S-2230, S-2232, S-25436, S-4084, S20886, S20887, S2218, S2230, S2232, S25436, S4084, S4850-03710, S485001950, S485002750, S485003710, SA3126, SA5005, SA5916, SA65110, SA66833, SA66884, SA66897, SA66898, SA66969, SA6833, SD66833, SMR560404, TK19679, TW34183201, VC85030, WSA0083202, Y34183201, ZYWSA0083202
