Gabriel Volvo VHD/VNM Series Shock - 85065

Product Description

Shocks are an important component of a truck's suspension system. They take the "beating" from road instabilities and keep vehicles grounded. Driving with bad shocks can be uncomfortable for drivers and create unpredictable accidents during the long-haul trip.

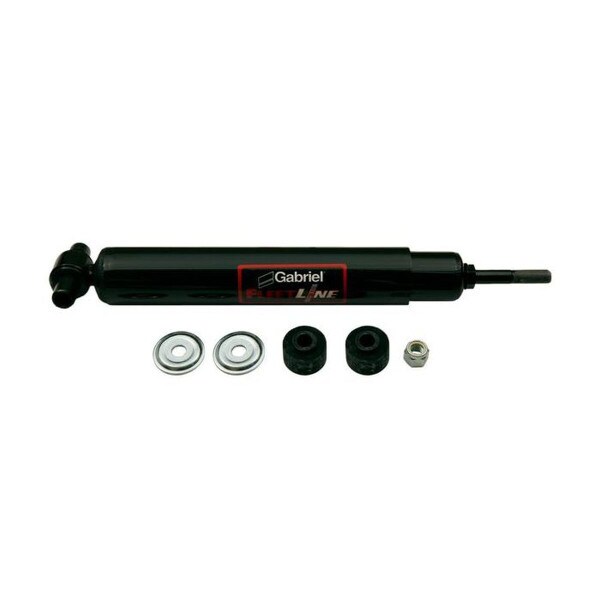

This black Gabriel shock absorber is part of the Fleetline 85000 Series for Class 6-8 trucks. It is designed to fit Volvo VHD ('08-20) and VNM Series (2016) vehicles. Its unique design provides increased fluid capacity and cooler operation in extreme conditions. Additionally, this 85000 series shock features D.O.M. (Drawn-Over-Mandrel) tubing to reduce internal wear as well as forged solid steel eye rings and 360 degree arc-welded end mounts to reduce end mount failures. It contains a dust tube and recoil cutoff. It has a rebound of 1059 pounds and a compression of 300 pounds. It contains a 1-5/8 inch bore size and a stroke measurement of 11.03 inches. Lastly, it has compressed to extended length measurements of 16.99 inches to 28.02 inches.

Gabriel Fleetline shocks come with a 12 month or 100,000 mile warranty.

In 1907, Gabriel invented the original automotive shock absorber; and they continue to be one of the most trusted names in the industry for quality shocks.

Features

• Designed to fit Volvo VHD ('08-20) and VNM Series (2016) vehicles
• Contains a dust tube and recoil cutoff
• Rebound of 1059 pounds and a compression of 300 pounds
• 1-5/8 inch bore size
• Stroke measurement of 11.03 inches
• Compressed to extended length measurements of 16.99 inches to 28.02 inches

Includes

One shock absorber

Warranty

12 months or 100,000 miles.

Cross Reference

12039, 20433427, 24186537, 315434, 471700000000, 471700000000000, 471700131256, 471700131259, 472000000000, 47200000000000, 65475, 8060026, 8073212, 8075257, 8075287, 85065, 86065, A85065, AMS650475, FLS-85065, L-12039, L12039, M65475
