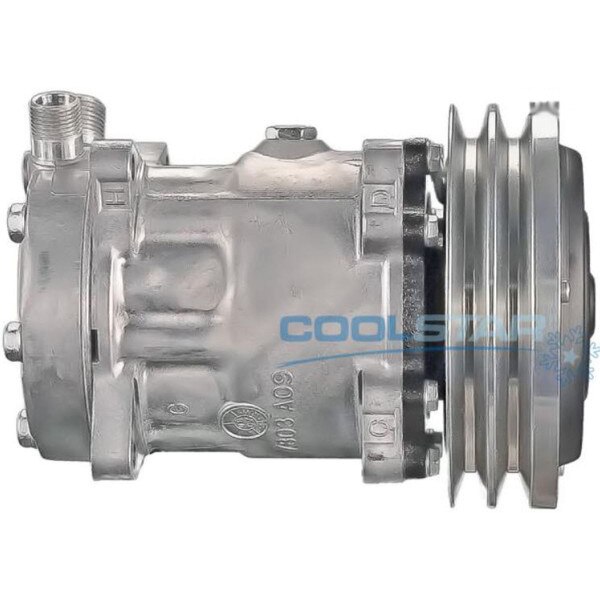

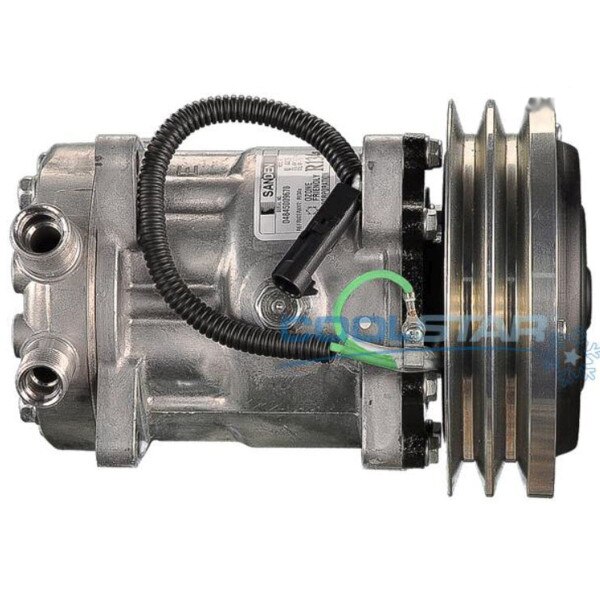

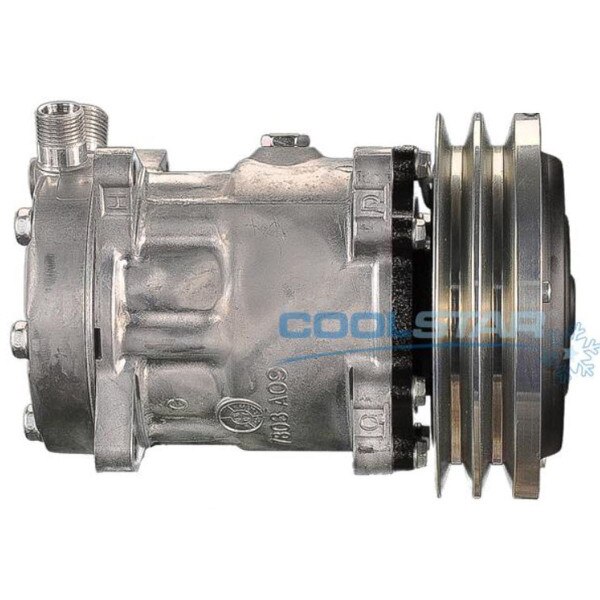

CoolStar Sanden SD7H15-E Compressor - 24V - 330-4048
Details
*THIS PART IS NON-RETURNABLE*
Product Description
The CoolStar Sanden SD7H15-E Compressor - 24V - 330-4048 was designed to be the ideal replacement part for your semi-truck.
This compressor hgas a 152 mm clutch diameter, a 12V rating, and 7 cylinders.
Warranty information may be based on the product and application. Please contact us for additional information.
CoolStar has been a trusted name in the trucking industry for an extremely long time, and the CoolStar Sanden SD7H15-E Compressor - 24V - 330-4048 is the direct result of their dedication to quality.
Features
- OEM Number: 4409
- Make: Sanden
- Manufacturer: Sanden
- Manufacturer #: 4409
- Application: Farm & Off Road Applications
- Description: Sanden SHD Comp 2 gr 152mm
- Additional Description: Enhanced Version
- Volts: 24V
- Clutch Diameter: 152mm
- No. of Grooves: 2 groove
- Belt Type: Two 1/2'' Belts
- No. Comp. Cylinders: 7 cyl
- Comp. Displacement (ci): 13 cu.in.
- Factory Oil Charge: 300cc Oil

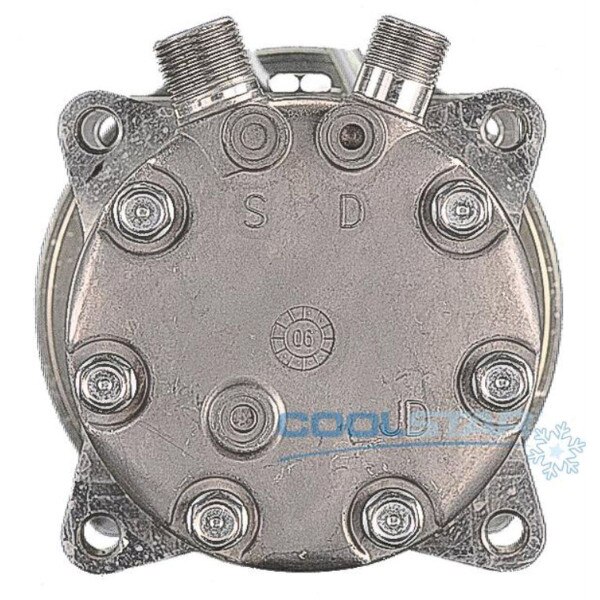

- Fitting Port Position: Vertical
- Fitting Style: Male Insert O-Ring #8 & #10
- Head Type: JDA

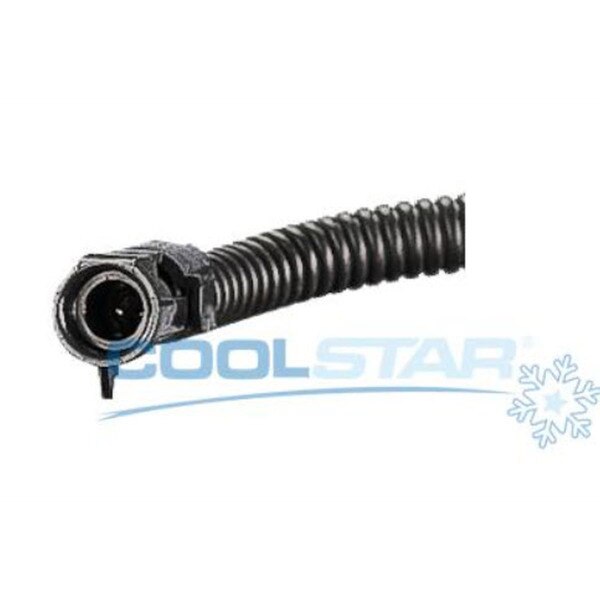

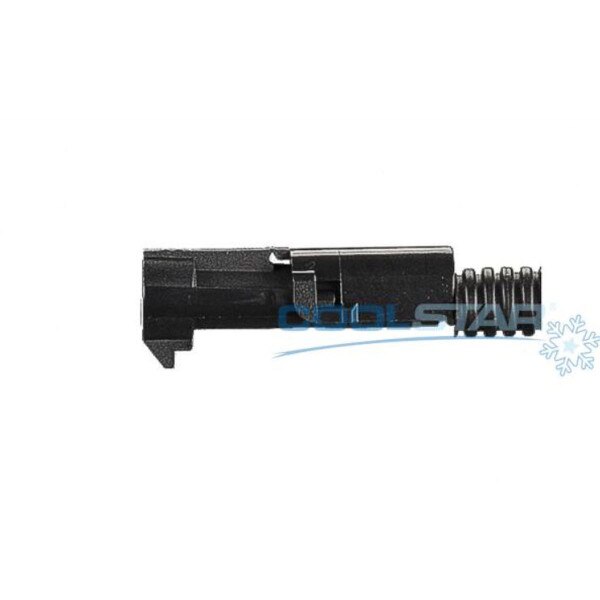

- Wire Type: 1 Wire Female Packard #12010996
- Replacement Compressor: NULL
- Replacement Head Assy: 03-6533A
- Model: SD7H15E
- Oil Type: PAG100
- Product Name: A/C Compressor w/clutch
- Refrigerant Type: R134a
- Rotation: CW
- Shaft Type: Long Key Shaft
- Diode Protection: w/diode
Includes
One (1) compressor
Cross Reference
4409
Specifications
| Brand | CoolStar |
| MPN | 330-4048 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This compressor has a 152 mm clutch diameter. |
