Red Dot Switch - Fan Cycling - RD-5-8218-0P

Product Description

The fan cycling controls are pressure switches that sense high-sidepressure, or temperature controls that sense liquid line temperature that turn the fan off when the condensing pressure-temperature falls, and on when the pressure-temperature reaches the upper setting on the fan cycling switch.

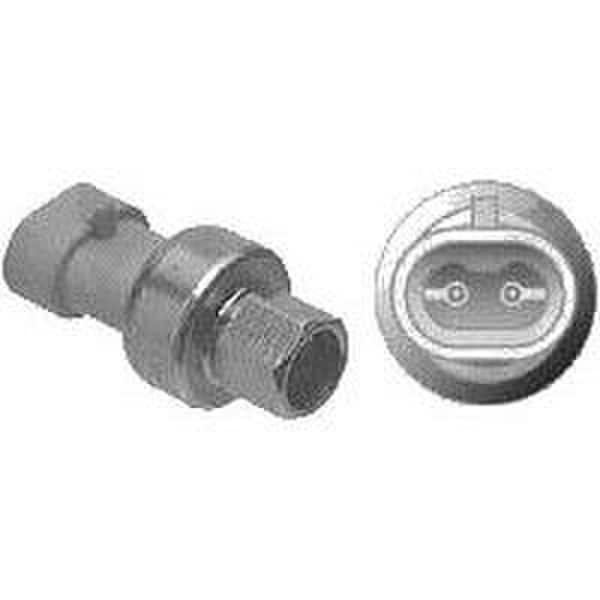

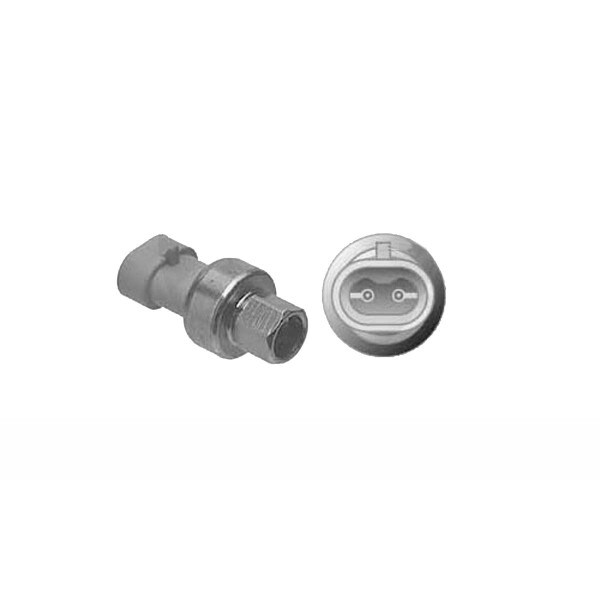

This pressure switch, model 71R6160, is a high side fan override type with M10 x 1.25 female / integral two-prong (oval) fitting. This switch is normaly open, and it closes at 270 psi and opens at 200 psi.

Red Dot Corporation warrants its on and off highway air conditioners, heaters and replacement parts against any defects that are due to faulty material or workmanship for a period of one year from date of purchase or date of installation unless otherwise noted.

Red Dot has been designing and building premium mobile HVAC units and components since 1965. Red Dot delivers innovative climate control solutions to even the most demanding commercial and military customers.

Features

• Type: High side? Fan Override ? Gray
• Fitting/Connector: M10 x 1.25 female / integral two-prong (oval)
• normaly Open ? Closes at 270 PSI ? Opens at 200 PSI
• Mating Plug: Packard no.12052643

Warranty

Warrantied against any defects that are due to faulty material or workmanship for a period of 1 (one) year after purchase or after installation unless otherwise noted in the attached warranty information.

Cross Reference

112657, 18-03836, 18-038536, 18-0386, 18-04307, 1803836, 18038536, 180386, 1804307, 220202, 232-8475, 276795, 4379-RD582180P, 6015118MX, 71R-6160, 71R6160, 850-8125, 8508125, 912-1108, ABP N83 318160, ABPN83318160, K301-390-1, K3013901, MT1638, N83 318160, N83318160, P39CAA-3606-01, P39CAA360601, P93CAA-3606-1, P93CAA3606-01, P93CAA360601, P93CAA36061, PTAC1437, RD-5-8218-0P, RD5-8218-DP, RD582180P, RDHRD582180P, RDT71R6160
