Red Dot Motor Assembly Field Service Kit - RD-5-5634-1P

SKU RD-5-5634-1P
$63.34
(0) No Reviews yet

Details

Product Description

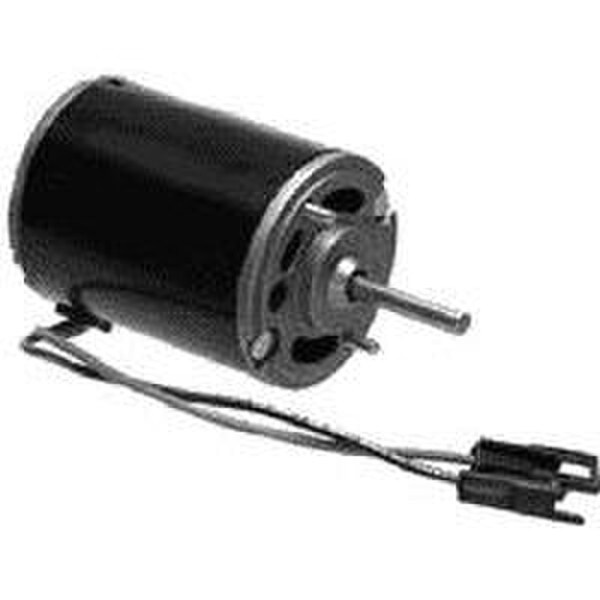

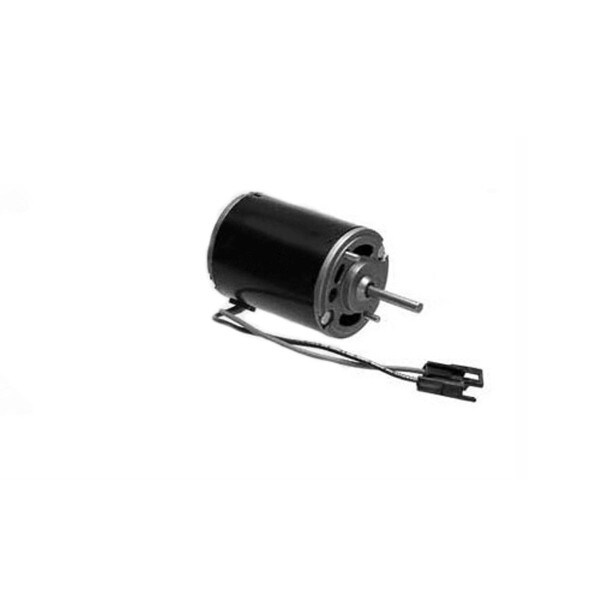

The blower motor is the fan that pushes heated or cooled air through dashboard vents based on the climate system settings and the fan speed selected.

This single shaft blower motor has an overall length of 4 7/8 in., a motor length of 4 1/4 in., a shaft length of 1 5/8 in., a shaft diameter of 5/16 in., and a motor diameter of 3 in. It features a clockwise rotation and permanent magnet motor with a stud mount spanning 2 5/6 in. It is vented.

Red Dot Corporation warrants its on and off highway air conditioners, heaters and replacement parts against any defects that are due to faulty material or workmanship for a period of one year from date of purchase or date of installation unless otherwise noted.

Red Dot has been designing and building premium mobile HVAC units and components since 1965. Red Dot delivers innovative climate control solutions to even the most demanding commercial and military customers.


Features

  • Application: Red Dot - Multi Applications
  • Volts: 12V
  • Overall Length (A): 4 7?8 in.
  • Motor Length (B): 4 1?4 in.
  • Shaft Length (C): 1 5?8 in.
  • Shaft Diameter: 5?16 in.
  • Motor Diameter (D): 3 in.
  • Speed: 1
  • Shaft Rotation: CW - Rotates Clockwise
  • Type: PM - Permanent Magnet Motor
  • Mount: Stud Mounted, Span 2 5?16 in.
  • Vent: Vented
  • Connector: Two conductor Packard no.2984528, 2971859

Warranty

Warrantied against any defects that are due to faulty material or workmanship for a period of 1 (one) year after purchase or after installation unless otherwise noted in the attached warranty information.


Cross Reference

0HK171, 102-1072, 1099009, 110674, 11SB058, 13004, 13026, 15556130, 1643, 1643B, 1643B-100, 1643B100, 1643B100CHR, 1643CHR, 1643R, 1740270, 1740272, 1743, 18010623K, 180CR1643, 199835, 19QJ123, 19QJ261, 19QJA261, 19QJA29304, 19QJA29305, 19QJA29307, 19QJA313, 19QJA319, 19QJA320, 19QJA39301, 19QJA41SR32, 2055746, 2077573, 244415, 2444415, 2455043, 2457424, 26-14513, 260422C11, 2614513, 27003053, 27003942, 27023479, 27074739, 27134964, 2809-541-176, 280979, 300-4009, 3004009, 3004009B, 3034009, 340-4009, 340-4046, 340-4095, 340-4249, 340009, 3404009, 3404046, 3404093, 3404094, 3404095, 3404098, 3404103, 3404188, 3404249, 3404261, 3404324, 34250, 343-4046, 343-4249, 3434009, 3434046, 3434091, 3434093, 3434094, 3434095, 3434098, 3434103, 3434113, 3434118, 3434131, 3434147, 3434174, 3434249, 3434250, 3504009, 3514009, 3524046, 35433, 35542, 387947C91, 388247C93, 3918242, 398770, 4009P, 401602, 401603, 401605, 401606, 401607, 401613, 401615, 401663, 401692, 401823, 411601, 411601P, 41SR32, 42002175, 42005, 431620R92, 4379-RD556340, 4379-RD556340P, 4379-RD556341, 4379-RD556341P, 4379RD556340, 4426A, 4426C, 4874009, 506084, 506089, 510-337, 512936C91, 529106, 531984, 532265, 585943C91, 60009-5003, 600095003, 611250, 64009, 64010, 680272R92, 680391, 697770, 698770, 73R0012, 73R0332, 73R0922, 74009, 74009B, 74009G, 76000, 781565C91, 78433404046, 78433404095, 78433434249, 803017, 862500, 900331, 921010003, 921010009, 921010010, 921010011, 9961010, A13262C133, A34009, A4009, A64046, A64094, A64095, ABP N83 301097, ABP N83 301921, ABPN83301921, AM86500, AU11SB058, BA110674, BG411601, BG411601P, BKHSG51686, BR280979, C3VY-18527B, C3VY18527B, C9HS1131B, C9HS1131C, C9HS1131H, CHR1743, CR1543, CR1566, CR1613, CR1630, CR1643, CR1643B, CR1703, CR1733, CR1743, CR1772, CR1783, CR1843, CR1943, CR2444415, CR529106, CR531984, CR532265, D0HA1131N, D0HZ1131D, D0HZ1131L, D1AZ-18527A, D1AZ18527A, D1HA1131KA, D2HS1131CA, D411601, D4HS1131AA, D5UZ-18527A, D5UZ18527A, D7HS1131AA, DE244415, DE398770, DE680391, DE697770, DOHA1131N, DOHZ1131L, E-803013, E-803017, E04009, E3404095, E3PZ-18527A, E3PZ18527A, E6HS1131BA, E803017, EA506084, EA506089, EFD0HA1131N, EH013004, EIE04009, EUE04009, EUE803017, F2199835, FOC9HS1131B, FOC9HS1131C, FOC9HS1131H, FOD0HA1131N, FOD0HZ1131D, FOD0HZ1131L, FOD1HA1131KA, FOD2HS1131CA, FOD4HS1131AA, FOD7HS1131AA, FODOHA1131N, FODOHZ1131L, FOE6HS1131BA, FP74009, FP74009B, FVCHR1743, GIM10HK171, GLA4009, GM00244415, GM00398770, GM00680391, GM00697770, GM15556130, GM2055746, GM2077573, GM244415, GM2444415, GM2455043, GM2457424, GM398770, GM680391, GM697770, GM698770, H1AE757102, HA1131KA, HA1131N, HC4009, HC4046, HDAE757102, HDAE757103, HDAE757108, HM76000, HS1131AA, HS1131BA, HS1131CA, HS1131H, HSG51686, HU009A, HU046A, HU110A, HUJA39302, HZ1131D, HZ1131L, IH387947C91, IH431620R92, IH512936C91, IH680272R92, IH781565C91, JA39302, K341SR32, KW41SR32, M10HK171, M3404009, M3404046, M3404095, M3404249, M3434046, M3434249, M519QJ261, MA401602, MA401603, MA401605, MA401606, MA401607, MA401612, MA401613, MA401615, MA401663, MA401692, MA401823, MB401606, MB401612, MB401613, MB401615, MB401823, MB411601, MB411601P, MD411601, MD411601P, MER04009, MI401601, MI411601, MI411601P, MID411601, MK19QJ123, MK19QJ261, MK19QJA261, MK19QJA29304, MK19QJA29305, MK19QJA29307, MK19QJA313, MK19QJA319, MK19QJA320, MK19QJA39301, MK19QJA41SR32, MK41SR32, MKHUJA39302, MM-427, MM427, MS009, MS4009P, MSS2A4009, MSST3434249, N83 301921, N83301921, NA1743, NAB300, NAHC4009, NAHC4046, NAHU009A, NAHU046A, NAHU110A, NAHW009A, ND4426C, NI260422C11, NI388247C93, NI512936C91, NI585943C91, NI680272R92, NI781565C91, NP4426A, NTHC4009, NTHC4046, NTHU046A, R1643, R1743, R64009, R64046, R64249, RB64010, RD-5-10379-0P, RD-5-4925-0P, RD-5-5634-0P, RD5103790P, RD549250P, RD556340P, RD556341P, RDHRD556340P, RDHRD556341P, RDT73R0922, RIA13262C133, RSR64009, RSR64046, RSR64249, S2A4009, SI3404009, SI3404046, SI3404095, SI3434249, SKF-1643, SM3004009, SM3404009, SM3404046, SM3404093, SM3404094, SM3404095, SM3404249, SM3404261, SM3434009, SM3434046, SM3434249, SM4009, SM4046, SM4094, SM4095, SM4103, SS1613, SS1643, SS1643B, SS1643R, SS1743, SS1843, SS3004009, SS3004009B, SS3404009, SS3404046, SS3404095, SS3404103, SS3404249, SS3434046, SS3434094, SS3434098, SS3434147, SS3434249, SS3514009, ST3004009, ST3034009, ST3404009, ST3404046, ST3404093, ST3404094, ST3404095, ST3404098, ST3404103, ST3404188, ST3404249, ST3404324, ST3434009, ST3434046, ST3434091, ST3434093, ST3434094, ST3434095, ST3434098, ST3434103, ST3434113, ST3434118, ST3434131, ST3434147, ST3434174, ST3434249, ST3504009, ST3524046, ST4009, ST4046, ST4094, ST4095, ST4103, ST78433404046, ST78433404095, ST78433434249, STE3004009, STE3404095, STM3404009, STM3404046, STM3404095, STM3404249, STM3434046, STM3434249, T164009, T164046, TC64046, TO3434046, TO3434091, TO3434095, TO3434098, TO64009, TO64046, TOA34009, TOA64046, TOA64094, TOA64095, TS64010, TTT009, VI13004, VI13026, WI027003053, WI027003942, WI027023479, WI027074739, WI027134964, WI1740270, WI1740272, WI42626, WI862500, WI921010003, WI921010009, WI921010010, WI921010011, WIND4426C, WINP4426A, ZCP3404249, ZZ4009


Specifications

BrandRed Dot Corporation
Voltage12V
MPNRD-5-5634-1P
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsThis single shaft blower motor has an overall length of 4 7/8 in., a motor length of 4 1/4 in., a shaft length of 1 5/8 in., a shaft diameter of 5/16 in., and a motor diameter of 3 in.. It features a clockwise rotation and permanent magnet motor with a stud mount spanning 2 5/6 in.. It is vented.

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
