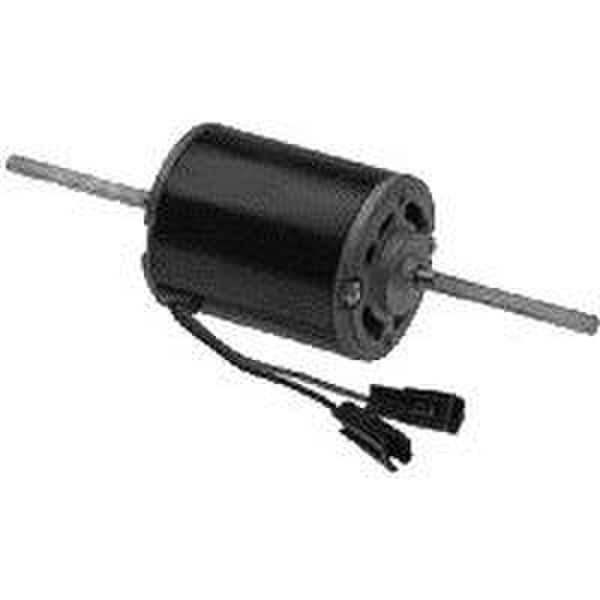

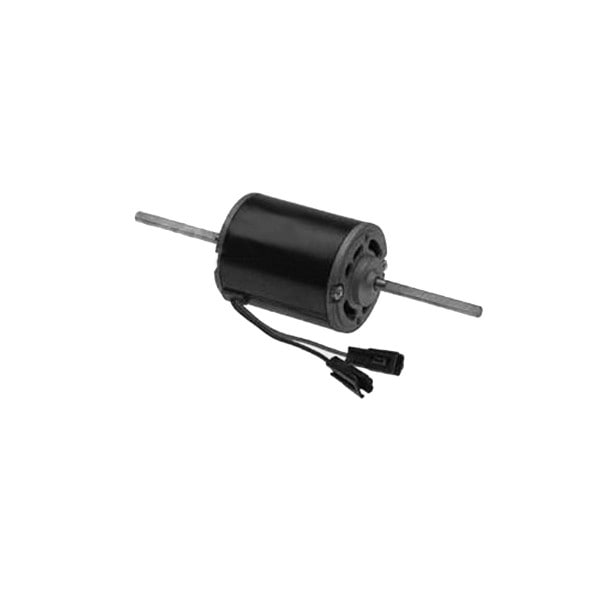

Red Dot Motor 12V - RD-5-5614-0P

Product Description

The blower motor is the fan that pushes heated or cooled air through dashboard vents based on the climate system settings and the fan speed selected.

This single speed blower motor has a diameter of 2 59/64 in., a length of 4 23/32 in., and a motor length of 4 9/32 in. It has a 21 amp max with a stud mount and PM rotation. It is 12V, with a shaft diameter of 5/16 in. and a shaft length of 2 57/64 in.

Red Dot Corporation warrants its on and off highway air conditioners, heaters and replacement parts against any defects that are due to faulty material or workmanship for a period of one year from date of purchase or date of installation unless otherwise noted.

Red Dot has been designing and building premium mobile HVAC units and components since 1965. Red Dot delivers innovative climate control solutions to even the most demanding commercial and military customers.

Features

• Amp Draw: 21 amps max
• Connector: Amp
• Diameter: 2 59/64 in. (74.4mm)
• Length: 4 23/32 in. (119.7mm)
• Motor Length: 4 9/32 in. (108.7mm)
• Mount: Stud
• Rotation: PM
• Shaft Diameter: 5/16 in. (7.937mm)
• Shaft Length: 2 57/64 in. (73.5mm)
• Speed: 1
• Stud Span: 2 5/16 in. (58.7mm)
• Type: 21 amps max
• Vent: V
• Voltage: 12
• Wires: 2
• Unit of Measure: EA

Warranty

Warrantied against any defects that are due to faulty material or workmanship for a period of 1 (one) year after purchase or after installation unless otherwise noted in the attached warranty information.

Cross Reference

01-1000, 01-1001, 01-2012, 02-17040, 1-1101, 1-1444, 1-1640, 101475, 1099002, 1099015, 1099020, 1099047, 1099049, 110-1036, 110-1064, 1118390, 12014, 150-3502, 150-3510, 1613278, 1691404C91, 1691704C91, 1691733C91, 169733C91, 176101, 176118, 176141, 203061, 203070, 203080, 203080BSM, 203179, 203198, 205630BSM, 205780, 205780BSM, 20578P, 20579P, 205840, 205840BSM, 208912, 22100X, 22100XX, 229500, 229524, 229763, 229932, 229933, 229996, 232-8809, 232-8815, 243051KB, 26-13351, 2613351, 274319, 274387, 275002, 275099, 275100, 275102, 275103, 275152, 275153, 275154, 275156, 275232, 275237, 275240, 275263, 275265, 275277, 275281, 275296, 275331, 275384, 275709, 275716, 275741, 275866, 275888, 276181, 276209, 276334, 276362, 276919, 277023, 277070, 277891, 277892, 278444, 278571, 278639, 278792, 278804, 278805, 278809, 278891, 278954, 278961, 278994, 278998X, 278999, 279029, 279173, 279596, 279655, 279682, 279684, 279837, 279872, 279874, 280053, 280054, 280349, 280427, 280736, 2809-541-009, 2809-541-163, 2809-551-021, 2809541009, 280994, 281820, 281822, 2819-530-002, 2819-530-008, 2819-530-016, 2819-530-024, 282418, 283491, 283853, 284771, 286700, 286710, 288245, 303196, 3385, 35500, 35510, 3949266, 406145, 411620, 41640, 4379-RD556140, 4379-RD556140P, 4379-RD568010, 4379-RD568010P, 4379RD588370P, 470533C1, 510-264, 510-411, 5396KN22100X, 73R4062, 73R4182, 7979-275102, 803127, 8566-0007, 8566-0102, 900304, 900335, 900336, 900350, ABP N83 301072, ABP N83 301105, ABP N83 301106, ABP N83 301172, ABP N83 301202, ABP N83 301252, ABP N83 301282, ABP N83 301292, ABPN83301072, ABPN83301105, ABPN83301106, ABPN83301202, ABPN83301252, ABPN83301282, ABPN83301292, APL-100839, BGIKN22100X, BGKN22100X, BGKNX22100C1, BSM301252, BX229500, BX229524, BX229763, BX229932, BX229933, BX229996, BX275002, BX275099, BX275100, BX275103, BX275153, BX275156, BX275232, BX275237, BX275240, BX275263, BX275265, BX275277, BX275281, BX275296, BX275331, BX275384, BX275709, BX275716, BX275741, BX275866, BX275888, BX276181, BX276209, BX276334, BX276362, BX276919, BX277023, BX277070, BX277891, BX277892, BX278444, BX278571, BX278639, BX278792, BX278804, BX278805, BX278809, BX278891, BX278954, BX278961, BX278994, BX278999, BX279029, BX279173, BX279596, BX279655, BX279682, BX279684, BX279837, BX279872, BX279874, BX280053, BX280054, BX280349, BX280427, BX280736, BX280994, BX281820, BX281822, BX282418, BX283491, BX283853, BX284771, BX286700, BX286710, BX288245, BXKN22100X, C3AZ-19805B, C3AZ19805B, CLIHB1610, E-803029, E803029, E803127, EH012014, EH900304, EH900336, EUE803029, EUE803127, EV900350, EVM4805, H2KN22100X, HA17100, HB10160, HB1035, HB10350, HB1040, HB10400, HB1050, HB10500, HB1610, HB16100, HB16700, IA275152, IKN22100X, K318-20-1, K318201, KB-275152, KB275152, KN22100, KN22100X, KN22100XC1, KN22100XX, KNWHB1610, KNWHB16100, KNWRF36110442, KNX22100, KNX22100C1, KW274319, KW275154, KY275102, LI278998X, LNKN22100X, M4805, MBKN22100X, MC3182, MDKN22100X, ME3182, MI5396KN22100X, MIKN22100, MIKN22100XC1, MIKNX22100, MK101475, MQ3182, MQ3389, MSMDKN22100X, N20837, N20837C, N83 301072, N83 301105, N83 301106, N83 301202, N83 301252, N83 301282, N83301072, N83301105, N83301106, N83301202, N83301252, N83301282, PF23058Q, PF26122Q, PF2615Q, PF2638Q, PF2646Q, PF2770Q, PM3510, PM385, PRKN22100X, PV23113Q, PV26122Q, R955229501N, R955277863N, R955KN22100X, RD-5-4942-0P, RD-5-6801-0P, RD5-4292-0, RD5-6801, RD5-6801-0, RD542920, RD549420P, RD56801, RD568010, RD568010P, RDHRD556140P, RDHRD568010P, RDT73R4062, RDT73R4182, RF36110442, RKN22100, TA012014, TP012014, X22100, ZGG11256, ZGG11444, ZGG11645Q, ZGG12569, ZGG12886, ZGG16317, ZGG19348, ZGG701004
