Red Dot Motor 12V - RD-5-4937-0P

SKU RD-5-4937-0P
This item is no longer available for purchase.
(0)No Reviews yet

Out of Stock

Back

Details

Product Description

The blower motor is the fan that pushes heated or cooled air through dashboard vents based on the climate system settings and the fan speed selected.

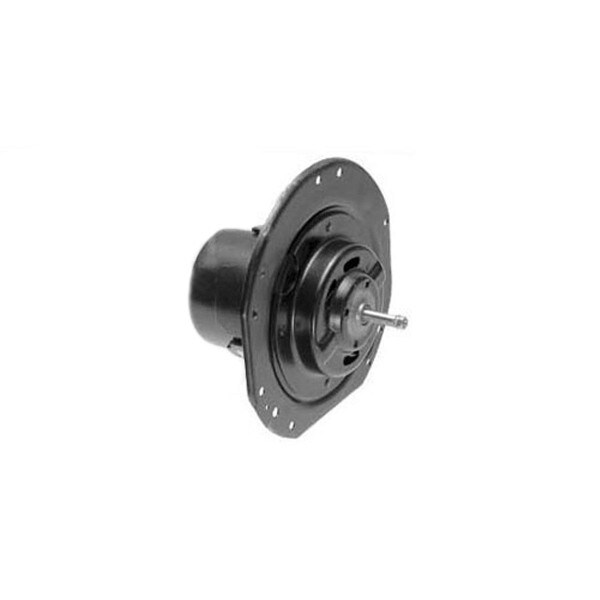

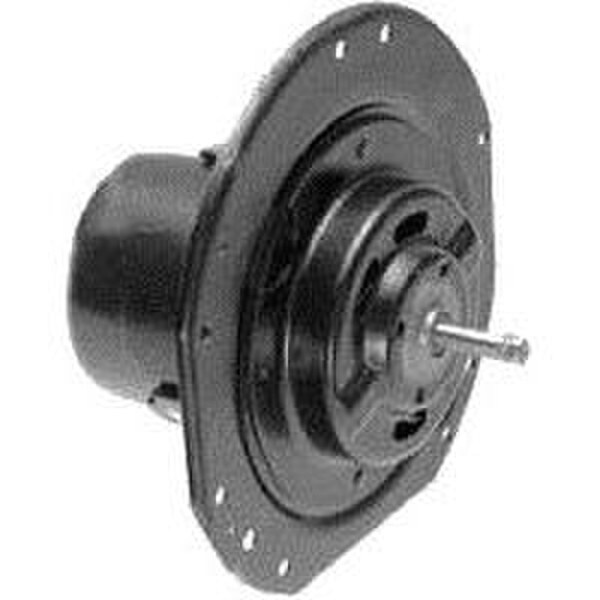

This single shaft blower motor is a 73R series blower motor with overall length of 4 3/4 in., 1 1/16 in. shaft length, 5/16 in. diameter and clockwise rotation. This single speed blower motor also has two male spade plug connectors and plate (flange) mounting type with 7 in. diameter. It is vented with a permanent magnet motor and includes wire assembly.


Red Dot Corporation warrants its on and off highway air conditioners, heaters and replacement parts against any defects that are due to faulty material or workmanship for a period of one year from date of purchase or date of installation unless otherwise noted.


Red Dot has been designing and building premium mobile HVAC units and components since 1965. Red Dot delivers innovative climate control solutions to even the most demanding commercial and military customers.


Features

  • Volts: 12V
  • Mount Type: Plate (Flange)
  • Plate/Flange Diameter: 7 in.
  • Overall Length: 4 3/4 in.
  • Motor Length: 4 1/8 in.
  • Motor Diameter: 3 1/8 in.
  • Rotation: Clockwise
  • Shaft Type: Single (5/16 in. dia)
  • Shaft Length: 1 1/16 in.
  • Speed(s): Single
  • Vent: Vented
  • Type: Permanent Magnet Motor
  • Connector: Male spade
  • Note: Includes wire assembly

Warranty

Warrantied against any defects that are due to faulty material or workmanship for a period of 1 (one) year after purchase or after installation unless otherwise noted in the attached warranty information.


Cross Reference

01-0200, 01-0205, 01-0810, 01-0814 / 01-0815, 02-17032, 1-2602, 1-2603, 1-3728, 1-4165, 1-4864, 1-6069, 1-6249, 1013003, 1099003, 1099014, 115-4201, 150-4001, 1669786C1, 176110, 203046, 203156, 208902, 208971, 208990, 209020, 232-8788, 2500485C1, 274243, 274393, 3093425, 3102, 3109, 35473, 35550, 35554, 35587, 3925, 3949261, 4379-RD549370, 4379-RD549370P, 474086C1, 510-226, 73R2102, 85100164, 890063, 980100, 980104, 980151, 980152, ABP N83 301025, AM86551, E-803057, E-803060, E-803102, FLTBM1669786, HA12450, HA15850, HA19250, HA20000, PM125, RD549370P, RDHRD549370P, RDT73R2102, RDT73R2102, ZGG12603, ZGG16249


Specifications

BrandRed Dot Corporation
MPNRD-5-4937-0P
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
BenefitsThis single shaft blower motor is a 73R series blower motor with overall length of 4 3/4 in., 1 1/16 in. shaft length, 5/16 in. diameter and clockwise rotation. This single speed blower motor also has two male spade plug connectors and plate (flange) mounting type with 7 in. diameter. It is vented with a permanent magnet motor and includes wire assembly.
