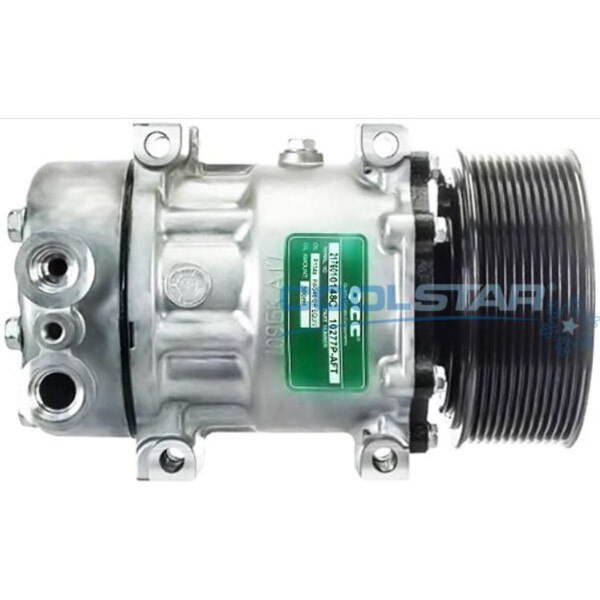

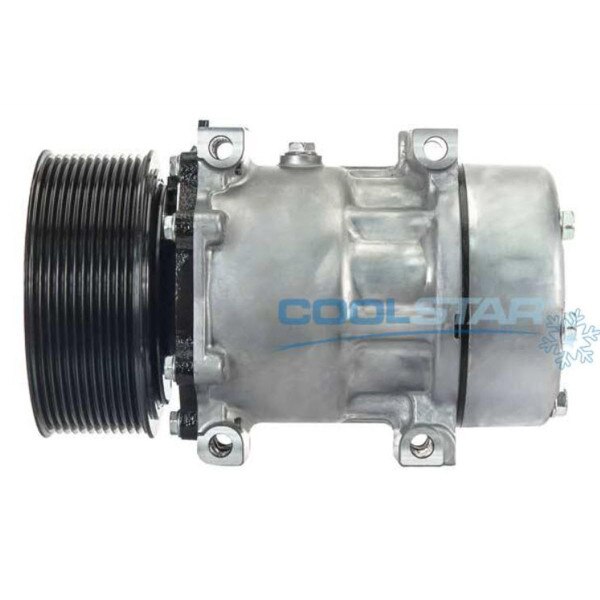

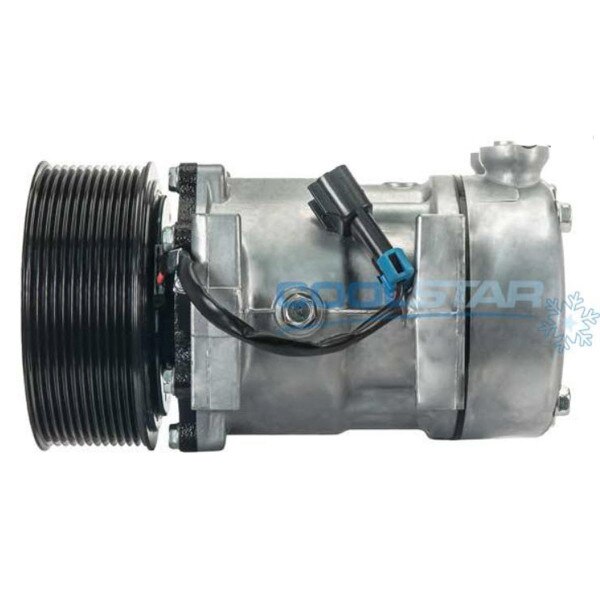

CoolStar QCC Compressor - Professional Grade - 330-2459
Details
*THIS PART IS NON-RETURNABLE*
Product Description
The CoolStar QCC Compressor - Professional Grade - 330-2459 was designed to be the ideal replacement part for your semi-truck.
This CoolStar compressor has a 126mm clutch diameter, 12 grooves, and 7 cylinders.
Warranty information may be based on the product and application. Please contact us for additional information.
CoolStar has been a trusted name in the trucking industry for an extremely long time, and the CoolStar QCC Compressor - Professional Grade - 330-2459 is the direct result of their dedication to quality.
Features
- OEM Number: repl. F69-6003-151
- Make: Sanden Style
- Manufacturer: QCC
- Manufacturer #: QP7H15-4370
- Application: Kenworth Trucks
- Description: QCC AFT Comp 12 gr 126mm 12V
- Additional Description: QCC Super HD style Compressor
- Volts: 12V
- Other OE Sanden #: 4370

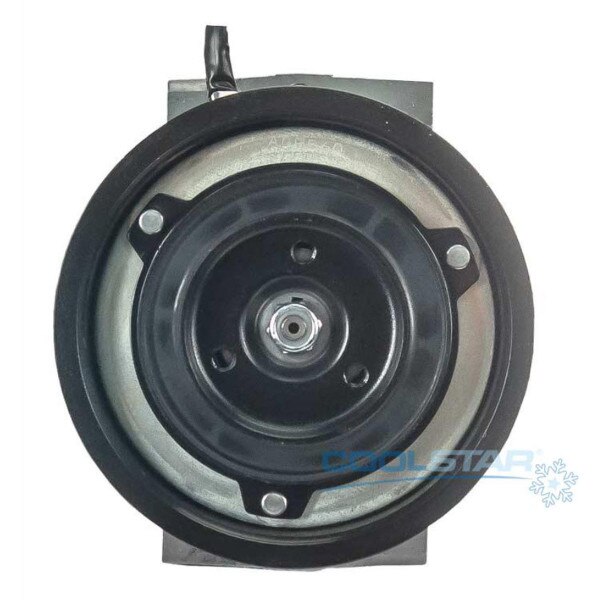

- Clutch Diameter: 126mm
- No. of Grooves: 12 groove
- Belt Type: Serpentine
- No. Comp. Cylinders: 7 cyl
- Comp. Displacement (ci): 9.5 cu.in.
- Factory Oil Charge: 300cc Oil
- Fitting Port Position: Lateral
- Fitting Style: O-ring Pad @ 90 deg

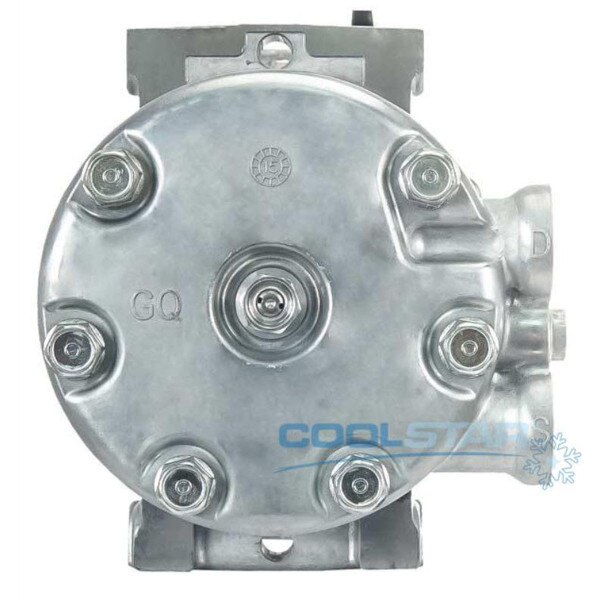

- Head Type: GQ

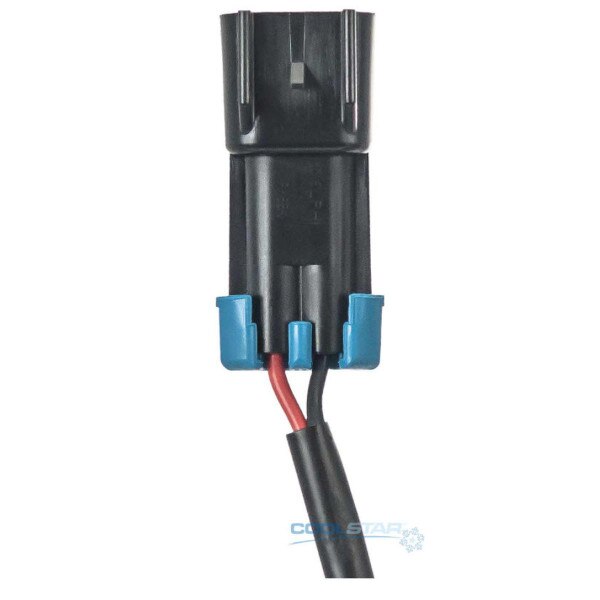

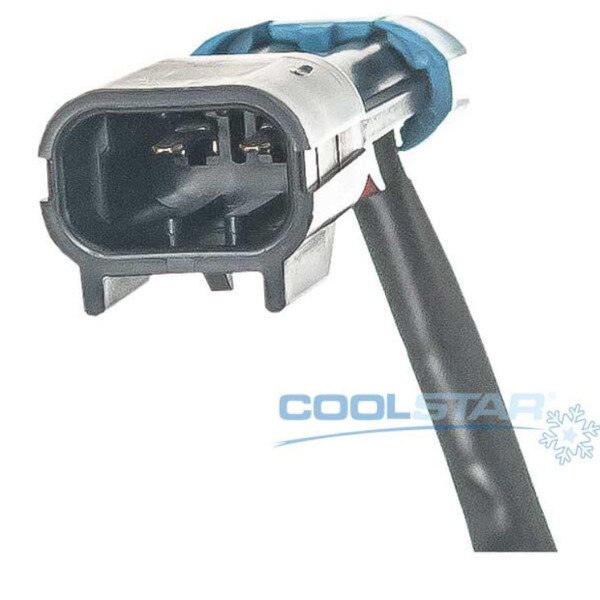

- Wire Type: 2 Wire Female Packard #15300002
- Replacement Compressor: NULL
- Replacement Clutch Assy.: NSS
- Replacement Head Assy: NSS
- Model: QP7H15-Super HD
- Oil Type: PAG100
- Product Name: A/C Compressor w/clutch
- Refrigerant Type: R134a
- Rotation: CW
- Shaft Type: Keyed shaft
- Additional Notes: QCC compressor replacement for Sanden
- Diode Protection: Diode/Fuse
Includes
One (1) compressor
Cross Reference
F69-6003-151
Specifications
| Brand | CoolStar |
| MPN | 330-2459 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This compressor has a 126 mm clutch diameter. |
