Meritor Premium ASA - M807006

Product Description

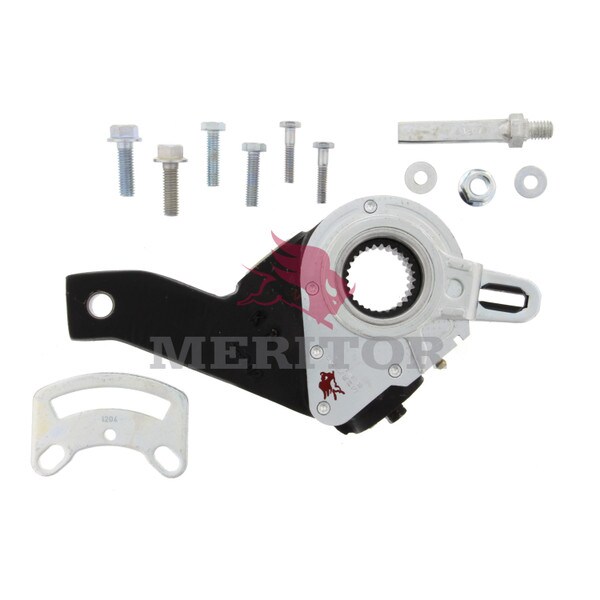

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 34 degrees
• Application: Trailer
• Arm Length: 6.00 in.
• Brake Size: 12.25 in.
• Bushing Inside Diameter: 0.50 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806006A.
• OEM: Haldex
• Production Part Number: 409-10655
• Related Bracket Number: R810301
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

10-400-10305, 1040010305, 400-10305, 40010305, 40010305-MD, 40010305M1D, 40010305MD, 409-10151, 409-10156, 409-10491, 409-10655, 40910151, 40910156, 40910491, 40910655, 429-10655, 42910655, 4W8005, 509-10151, 509-10491, 509-10655, 50910151, 50910491, 50910655, 5396-40010305, 539640010305, 767653143729, 808130, 808167, 813645, 813655, 818148, 8235-M807006, 8235M807006, A273275S1059, ASH40010305, BBH-RB-10305, BBHRB10305, BNDK041877, BXK041877, E-6933, E6933, GTA-40010305, GTA40010305, HA-400-10305, HA40010305, HAL40010305, HDX40010305, HX40010305, K041877, K041877BXW, M807006, MBI40010305, MID40010305, PL-10305, PL10305, R806006, RB-10305, RB10305, SA10305, TDAM807006, WA10305, ZSA40010305, ZZ40010305
