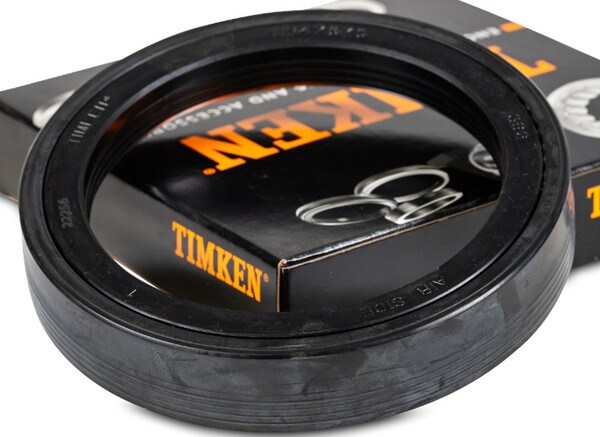

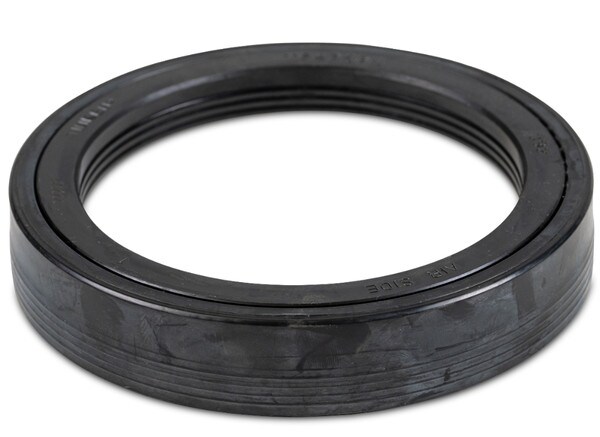

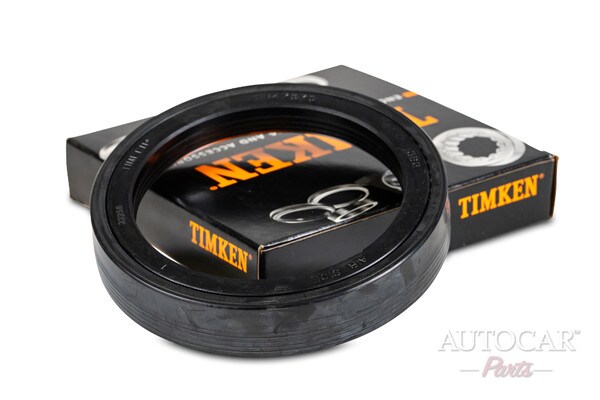

Timken 380003A O-Ring Oil Seal - Inch 11P47670

Product Description

Designed to provide you with an air tight seal, the Timken 380003A O-Ring Oil Seal - Inch 11P47670 gives you the coverage you need for the most popular applications.

This oil seal from the trucking experts at Timken is made using a PTFE material designed to be durable and long lasting. It has a 4.765 in. shaft size, a 6.322 in. outer diameter, and a 1.132 in. overall width.

Warranty information may be based on the product and application. Please contact us for additional information.

For years Timken has been one of the top names in aftermarket parts for semi-trucks, and the Timken Inch Oil Seal is the result of their hardword and dedication.

Features

• Seal Type: 10
• Material: PFTE
• Series: 380000
• Installation Tool: RD305
• Inch/Metric: Inch
• Shaft Size: 4.765 in.
• Outer Diameter: 6.322 in.
• Overall Width: 1.132 in.
• Housing Bore: 6.309 in.

Includes

One o-ring oil seal

Warranty

Warranty varies by product type. Call us for details.

Cross Reference

Timken 11P47670 Cross References

0003A, 001QD3147, 0031A, 003BG, 01005503, 02009111, 031BG, 033BG, 070HH134, 0HH134, 1-09625495-0, 1-87061-350-0, 10005431, 10045887, 10045888, 10045888CON, 10082954, 10082970, 101012, 1010456, 1010476, 101590, 1045273, 107552, 11004, 1100D6D, 114229, 116444, 1175A, 1175A1A, 1175AA, 1175B, 1192D6, 1199U1217, 11CH0210, 11FTB0210, 11P47670TRB, 11S47670T, 1204-380003A, 1204370031A, 1204380003A, 1205V2, 12303845, 12303846, 128861, 12960, 12P46250, 12P46250TRB, 13521, 1436900007, 1458-39988, 1458-42673, 145839977, 145839988, 145842672, 145842673, 1522606, 15527768, 1649628C1, 16858, 181.370031A, 181.AC0401, 181.CR47691PRO, 181370031A, 181705, 181AC0401, 181AS3930104, 181CR47691PRO, 18626, 1QFA3147, 20-836, 20101012, 2016W1011RING, 2039W1011RING, 2039W1038RING, 207050360, 20836, 20951088, 21321088, 21321515, 219000SERIES, 219300W, 219305, 219316, 219400, 219400W, 219405, 219416, 25538, 2718/1705, 27181705, 28039, 2960381, 296397C92, 296409C91, 299-29, 299-30, 299-46, 29QJ110A, 29QJ123, 29QJ211, 29QJ29306, 2ER608, 3030099, 3030CLS, 3030L, 3030LCB20, 3030LON, 303100, 303403, 307-0743, 3070743, 309-0903, 309-0904, 309-0912, 309-0973, 3090903, 3090904, 3090912, 3090973, 3096228, 3096240, 30QJ258, 310-1038, 3101038, 31475, 318418, 320-2016, 320-2039, 3202005, 32020101012, 32020103101012, 3202016, 3202016W3101011, 3202039, 3202039W3101011, 3202039W3101038, 3202095, 32020951088, 32020953101088, 3202132, 32021321088, 32021321515, 32021323101088, 32021323151515, 3202213, 32027183171705, 321088, 321515, 3230051, 3230551, 3230951, 3272718317170, 32727183171705, 329J-225, 329J225, 32QJ-133A, 32QJ-225, 32QJ-233, 32QJ-243, 32QJ119, 32QJ133A, 32QJ135A, 32QJ140, 32QJ152, 32QJ1521EA, 32QJ161, 32QJ1611EA, 32QJ19332, 32QJ19360, 32QJ19370, 32QJ225, 32QJ233, 32QJ239, 32QJ243, 32QJ248, 32QJ262, 32QJ264, 32QJ271, 32QJ276, 32QJ29318, 32QJ29320, 330783408, 341SR17, 341SR26, 3534051, 370003A, 370023A, 370024A, 370025A, 370025AFDM, 370031, 370031A, 370031AFDM, 370033, 370033A, 370033AFDM, 370033AW/AR12RING, 370033AWAR12RING, 370165A, 370198A, 370400, 372-7097, 3727097, 373-0143, 373-0243, 3730143, 3730243, 3730243-ST, 3730243ST, 374400, 376400, 377400, 380003A, 380003AFDM, 380025A, 380025AFDM, 380031A, 380031AFDM, 3808023, 3808039, 382-8023, 382-8039, 3828023, 3828039, 383-0139, 383-0239, 383-8139, 3830139, 3830139W3101132, 3830239, 3832051, 383300, 383400, 3838139, 383SERIES, 386025A, 38703, 38709, 389000, 389000SERIES, 389400, 390-9004, 390-9010, 390-9090, 3909004, 3909010, 3909012, 3909015, 3909031, 3909047, 3909056, 3909090, 3909099, 3909712, 391-0004, 3910004, 3918950, 3918972, 392-9010, 392-9090, 392-9094, 392-9112, 392-9130, 392-9131, 3929010, 3929090, 3929092, 3929094, 3929112, 3929130, 3929131, 393-0104, 393-0173, 393-0204, 393-0273, 393000SER, 3930104, 3930104-ST, 3930104370031A, 3930104ST, 3930173, 3930204, 3930273, 393400, 3941956, 397-9704, 3979704, 3979712, 39975, 39977, 39979, 39980, 39981, 39988, 39988-CR, 39988CR, 39990, 4000-47691000L, 400047691000L, 40049, 40051, 400511, 40052, 401216, 4131150, 4131162, 4131171, 4131212, 4131225, 4131226, 4131229, 4131231, 4131235, 413618, 415058, 415188, 417356, 42478, 42631, 42644, 42644CHR, 42650, 42671, 42672, 42673, 42673-CR, 42673CR, 42673PRO, 446070N, 447565C91, 45188, 455031, 455058, 455188, 455211, 455547, 455958, 457356, 46300, 46304, 46306, 46308, 46308CHR, 47494, 47691, 47691-000-L, 47691-000L, 47691000L, 47691000L-HR, 47691000LHR, 47691CHR, 47692, 47692/47691, 47697, 477356, 48086, 48098, 487356, 49884, 49885, 49917, 5010414, 5010435, 5013841, 504516, 5071U, 5071W, 50835610, 511030C1, 5124M1, 521950, 521964, 5294U, 53030039, 532469, 5402409, 5409124, 59966, 60501012, 63038, 63038J, 644081, 64495, 644951, 64567, 65060U, 65060W, 65071, 65071U, 65071W, 65179R91, 65270U, 65270W, 65272W, 65275, 65294, 65294U, 65294W, 65294W63011JRING, 65294W63038JRING, 65556, 659966, 663043R91, 69598, 69616K, 69628, 69628K, 69705, 69754K, 69788, 69788K, 69794K, 69799, 70031BG, 70033BG, 70598, 70788, 70799, 716400, 718657, 719400, 719400P, 719400W, 720659, 72718317170, 750062, 755400P, 770400, 774400, 776400, 7843-3730243, 7843-3930104, 78433090904, 78433101038, 78433202039, 78433730243, 78433929112, 78433930104, 789400, 789400P, 79704, 802541, 821000, 821601, 823000, 835610, 839000, 846D6, 85103658, 85104742, 85107110, 859966, 861, 88319, 88AX11, 88AX110, 88AX110P1, 88AX138, 88AX153, 88AX305, 88AX373, 88AX405, 88AX407, 88AX418, 88AX419, 88AX421, 88AX448, 88AX466, 88AZ110P1, 892487, 90124128, 904000, 90501017, 928000, 940010006, 940010022, 940013409, 940013410, 940013412, 947000, 951088, 954631, 9705K, 9728K, 9745K, 9758K, 9788K, 990000, 998JX, 9J225, A1205C2343, A1205G2191, A1205K999, A1205L1598, A1205P1212, A1205R2566, A1205X1662, A1205X2702, A25538, A56065, A56416, A63038J, A65029, A65294, A65294-W, A65294W, A69616K, A69628K, A69705K, A69728K, A69745K, A69758K, A69788K, ABP10045887, ABP10045888, ABP10082954, ABP10082970, ABPN32805005, ACA-40271700, AOS-9151-CR, AOS9151, AOS9151CR, APL-047691, APL-047697, B370031, B370031BG, B370033, B370033BG, B39988, BB370031A, BB370033A, BB380031A, BF476910, BOS7611, CHR39988, CHR42672, CHR42673, CM10045887, CM10045888, CNM10045887, CNM10045888, CR31475, CR370033A, CR38709, CR39975, CR39977, CR39979, CR39980, CR39981, CR39988, CR40049, CR40051, CR40052, CR42644, CR42671, CR42672, CR42673, CR46308, CR47691, CR504516, CR5124, CR5124M1, CR521950, CR521964, CR532469, CRS39988, CRS46300, D5ZF9601A, D5ZZ1180A, D719400, DI846D6, DIM4478, DR1517, DR1518, DR1519, DR1520, DR17RK, DRE23RK, DRE4523, DRE5019, DRE5070, DRE5074, DRE5076, DRE5077, DRE5083, DRE5093, DRE83RK, DRE93RK, E-5275, E1824, E23RK, E24RKBC, E24RKCC, E3202039, E3828039, E5019, E5275, E83RK, E9020491, E93RK, EP49884, EP644081, ET852, FA1824, FA24RKBC, FA24RKCC, FAE1824, FAE24RKBC, FAE24RKCC, FAE5019, FB370031A, FB370033A, FEDNAT370025A, FEDNAT380003A, FEDNAT380025A, FLRTS47691, FLT42673, FLT46300, FLT47691, FLT47692, FLTWS46300, FLTWS47691, FM370031A, FM370033A, FM380031A, FMP370003A, FMP380003A, FMP380031A, FS370031A, FS370033A, FS380031A, FU852, FVCHR39988, FVCHR42672, GI32QJ264, GS1371, H47691000L, HD47691000L, HDR47691000L, HRMER0273, HS39977, HS42671, HS46304, HU001QD3147, HUD47691000L, IH296397C92, IH296409C91, IH447565C91, IH511030C1, IH65179R91, IH663043R91, JM20039, JM8039, M10HH107, M10HH140, M10HH153, M3090904, M3101038, M3202039, M3828039, M3929112, M4478, M5145839977, M51QFA3147, M529QJ29306, M5329J225, M532QJ233, MA219000, MA219000SERIES, MA219400, MA383300, MA383400, MA383SERIES, MA389000, MA389000SERIES, MA389400, MA393000SER, MA393400, MA401216, MA719400, MA776400, MA789400, MADR1517, MADR1518, MADR1519, MADR1520, MADRE23RK, MADRE4523, MADRE5019, MADRE5083, MADRE5093, MADRE83RK, MADRE93RK, MAFA1824, MAFAE1824, MAFAE24RKBC, MAFAE24RKCC, MAFAE5019, MB219000SERIES, MB219400, MB383300, MB383400, MB383SERIES, MB389000SERIES, MB389400, MB401216, MB719400, MBDRE23RK, MBDRE4523, MBDRE5083, MBDRE83RK, MBHS42671, MCR038747, MCR039988, MD219400, MD383400, MER0104, MER0204, MER0243, MER0273, MI716400, MI719400P, MI776400, MI789400, MI789400P, MID719400, MIHS42671, MK1QFA3147, MK29QJ211, MK29QJ29306, MK30QJ258, MK329J225, MK32QJ133A, MK32QJ135A, MK32QJ140, MK32QJ152, MK32QJ1521EA, MK32QJ161, MK32QJ1611EA, MK32QJ19332, MK32QJ19360, MK32QJ19370, MK32QJ225, MK32QJ233, MK32QJ239, MK32QJ243, MK32QJ248, MK32QJ262, MK341SR17, MK341SR26, MK88AX11, MK88AX110, MK88AX110P1, MK88AX138, MK88AX153, MK88AX305, MK88AX373, MK88AX405, MK88AX418, MK88AX421, MK88AX448, MK88AZ110P1, MKHU001QD3147, MPS370033A, MSNA370033A, MSSS3929112, N39988, N42671, N4852, NA370031, NA370031A, NA370033, NA370033A, NA380031A, NA38709, NA39988, NA417356, NA42672, NA446070N, NA455188, NAAR12, NAB370031BG, NAB370033BG, NAT-370023A, NAT-370024A, NAT-370025A, NAT-370031A, NAT-370033A, NAT-370165A, NAT-370198A, NAT-380025A, NAT-380031A, NAT-386025A, NAT-386590A, NAT-415058, NAT-455188, NAT-455547, NAT-455958, NAT-456618, NAT370023A, NAT370024A, NAT370025A, NAT370031A, NAT370033A, NAT370165A, NAT370198A, NAT380003A, NAT380025A, NAT380031A, NAT386025A, NAT386590A, NAT415058, NAT455188, NAT455547, NAT455958, NAT456618, NOS39988, NOS46308, NT370031A, NT370033A, NT380031A, NT415188, NT417356, NT446070N, NT457356, NT477356, NT487356, OS39988, PA7262, PA7611, PABOS7611, PL1146, PL1146ATR, PL1146B, PN318418, PW318100, PZ318100, R1-D06, R1-T03, R1D06, R1T03, R20148222, R39977, R39988, R42672, R63038, R65071U, R65071W, R65275U, R65294, R65294U, R69628, R69788, RBR65071U, RBR65294, RBR69788, REV HD R1-D02, REV HD RM-D02, RM-D06, RM-T03, RMD06, RMT03, ROR69788, RSR63038, RSR65071U, RSR65071W, RSR69788, S-A240, S7262, S7611, S9151, SA240, SAP370033A, SBR307-0743, SBR3070743, SBR309-0904, SBR3090904, SBR372-7097, SBR3727097, SBR373-0143, SBR373-0243, SBR3730143, SBR3730243, SBR392-9112, SBR3929112, SBR393-0273, SBR3930273, SEA0204, SEA0243, SEA0273, SEA370023, SEA370025, SEA370031, SH2172, SI3090904, SI3101038, SI3202039, SI3828039, SI3929090, SI3929112, SKF 47691, SKF46300, SM3090904, SM3101038, SM3202039, SM3202213, SM3828039, SM3838139, SM3909047, SM3929090, SM3929112, SM3930104, SP47494, SS3090904, SS3101038, SS3202039, SS3909004, SS3909090, SS3929090, SS3929112, SS3979704, SS39988, SS42672, SS64236, SS64495, SS644951, SS64567, SS68003, SS68008, ST2005, ST20101012, ST2039, ST2095, ST20951088, ST2132, ST21321088, ST21321515, ST2213, ST2718, ST27181705, ST3090904, ST3101038, ST3202005, ST32020101012, ST32020103101012, ST3202039, ST3202095, ST32020951088, ST32020953101088, ST3202132, ST32021321088, ST32021321515, ST32021323101088, ST32021323151515, ST3202213, ST32027183171705, ST3272718317170, ST32727183171705, ST373-0243, ST3730243, ST3808023, ST3808039, ST3828023, ST3828039, ST3830139, ST3830239, ST3838139, ST3909004, ST3909010, ST3909047, ST3909090, ST3910004, ST3929010, ST3929090, ST3929092, ST3929112, ST393-0104, ST3930104, ST3979704, ST78433090904, ST78433101038, ST78433202039, ST78433929112, ST821000, ST823000, ST839000, ST904000, ST928000, ST947000, ST990000, STE307-0743, STE3070743, STE3202039, STE372-7097, STE3727097, STE373-0143, STE373-0243, STE3730143, STE3730243, STE3828039, STE383-8139, STE3838139, STE393-0104, STE393-0273, STE3930104, STE3930273, STM3090904, STM3101038, STM3202039, STM3730243, STM3828039, STM3929112, STM3930104, STN307-0743, STN3070743, STN372-7097, STN3727097, STN373-0143, STN373-0243, STN3730143, STN3730243, STN393-0104, STN393-0273, STN3930104, STN3930273, SW42672, SX370031A, SX370033A, SX380031A, T150835610, T165071, T165071U, T165294, T165294U, T169616K, T169628K, T169788K, T1A56065, T1A56416, T1A65029, T1A69705K, T1A69728K, T1A69745K, T1A69758K, T1A69788K, T370031A, T370033A, T55188, T55547, TC63038, TC65294, TD47691OSL, TKR852, TM11P47670, TM12P46250, TM18626, TO3808039, TO3909004, TO3909010, TO3909090, TO50835610, TO63038J, TO65071W, TO69788K, TOA56065, TOA56416, TOA63038J, TOA65029, TOA65294, TOA69705K, TOA69728K, TOA69745K, TOA69758K, TOA69788K, TOT55547, TR0243, TR65071U, TR65294U, TR69628, TRB6185, TRI65060U, TS50-22691, TS50-22691-TKIT, TS50-22691ATR, TS5022691, TS5022691ATR, TS5022691TKIT, TS65060U, TS70598, TWD3730243, TWD3930104, TWD47691000L, TWDMER0273, UZ0303E0, V370023A, V370024A, V370025A, V370031A, V370033A, V380003A, V380025A, V380031A, V386025A, V455958, VI47494, VI49885, VI49917, VIEP49884, VIEP644081, VISS64495, VISS644951, VISS64567, WA03-5119, WA035119, WI413618, WI59966, WI659966, WI718657, WI859966, WI892487, WS300, WS3725A, X92181, XCR39988, Z1026T, ZAR39988, ZCP3090904, ZCP3727097, ZCP3730143, ZCP3730243, ZCP3929094, ZCP3929112, ZCP3930104, ZCP3930273, ZF9601A, ZZ1180A, ZZ370031A
