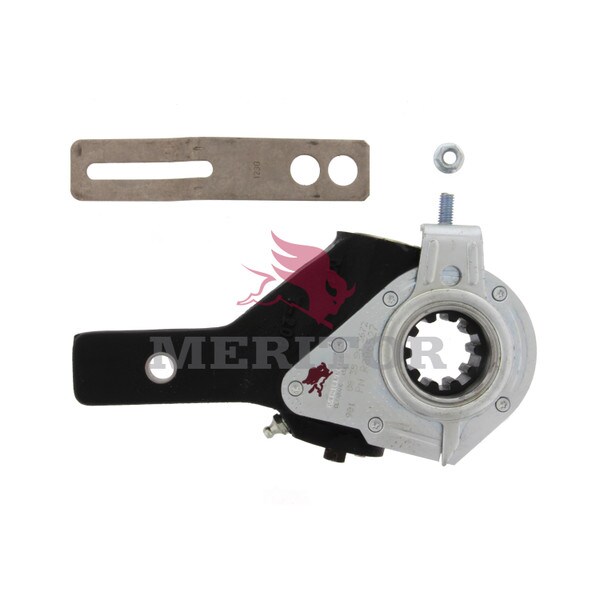

Meritor Premium ASA - M807527

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - City Tra: 1 Year / 100K Miles
• Aftermarket Extended Warranty - Intercit: 2 Years / 200K Miles
• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 16 degrees
• Application: Transit
• Arm Length: 5.50 in.
• Bushing Inside Diameter: 0.50 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version.
• OEM: Haldex
• Production Part Number: 419-10770
• Related Bracket Number: R810305
• Sensing Type: Clearance
• Slack Spline Count: 10
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

30010011, 30010011M1D, 419-10184, 419-10770, 41910184, 41910770, 5396-30010011, 539630010011, 767653144320, A0102507MY, A3275S773, A63275E1279, HDX30010011, MID30010011, ZZ30010011
