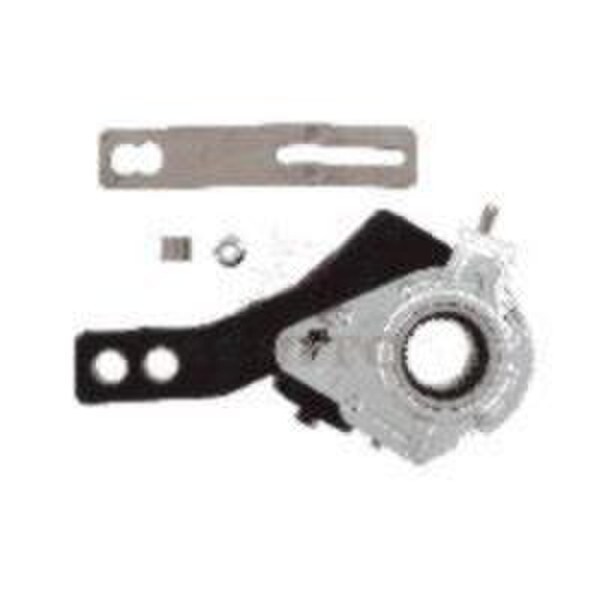

Meritor Premium ASA - M807026

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 34 degrees
• Application: Drive
• Arm Length: 5.50 in.
• Brake Size: 16.50 in.
• Bushing Inside Diameter: 0.625 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806026A. Self-Setting alternative is M808026.
• OEM: Haldex
• Production Part Number: 409-10653
• Related Bracket Number: R810300
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

03-07646, 0307646, 10-400-10141, 1040010141, 10628, 1694309C91, 1694317C91, 2507740C91, 25QD259P8, 25QD340P12, 25QD351M, 25QD351M2, 25QD410P3, 315333, 317507, 3518951, 3946254, 400-10133, 400-10181, 40010133, 40010141, 40010141-MD, 40010141M1D, 40010141MD, 40010154, 40010156, 40010181, 40020211, 40020229, 409-10126, 409-10150, 409-10197, 409-10222, 409-10229, 409-10240, 409-10390, 409-10406, 409-10408, 409-10429, 409-10506, 409-10530, 409-10532, 409-10551, 409-10553, 409-10628, 409-10650, 409-10653, 409-10665, 409-10861, 40910126, 40910150, 40910197, 40910222, 40910229, 40910240, 40910390, 40910406, 40910408, 40910429, 40910506, 40910530, 40910532, 40910551, 40910553, 40910628, 40910650, 40910653, 40910665, 40910861, 4311262, 4W8000, 4W8155, 500-10141, 50010141, 506270, 506728, 507033, 509-10126, 509-10150, 509-10229, 509-10240, 509-10390, 509-10406, 509-10408, 509-10429, 509-10532, 509-10535, 509-10553, 509-10653, 50910126, 50910150, 50910229, 50910240, 50910390, 50910406, 50910408, 50910429, 50910532, 50910535, 50910553, 50910653, 516161, 5396-40010141, 539640010141, 767653143378, 7883-40010141, 788340010141, 808134, 808171, 808178, 808691, 809612, 810047, 810602, 810731, 812351, 812568, 812701, 815788, 815807, 818221, 818553, 819088, 825366, 8311615, 974290, A13275S1059, A143275S1059, A23275J634, A423275S1059, A43275S1059, ABPN42AS40010141, ACCAS1140, AS1040, AS1042, AS1140, AS1142, AS1151, ASA123, ASH40010141, B23275J634, BBH-RB-10141, BBHRB10141, BNDK043197, BP10141, BXK043197, CS52352, CS56042, CS56051, CS56051M1D, E-6927, E-6927A, E-6927B, E6927, E6927A, E6927B, FLT40010141, FLTAS1140, GT-56141, GT56141, GTA-40010141, GTA40010141, GUNAS-1140, GUNAS1140, HA-400-10141, HA40010141, HAE40010141, HAL40010141, HDX400-10141, HDX40010141, HSA-5045, HSA5045, HX400-10141, HX40010141, K043197, K043197BXW, KSA10141, M807026, MBI40010141, MID40010141, MK22102S, MK22102SG, MK42100S, MK42100SJ, N42AS, OTR10141, PL-10141, PL10141, PROSA56141, R806004, R806026, RB-10141, RB10141, S-23850, S23850, SA10101, SA1140A, SAB40910628, SAP10141, WA10141, ZBRAS1040, ZBRAS1140, ZBRAS1142, ZSA40010141, ZZ40010141
