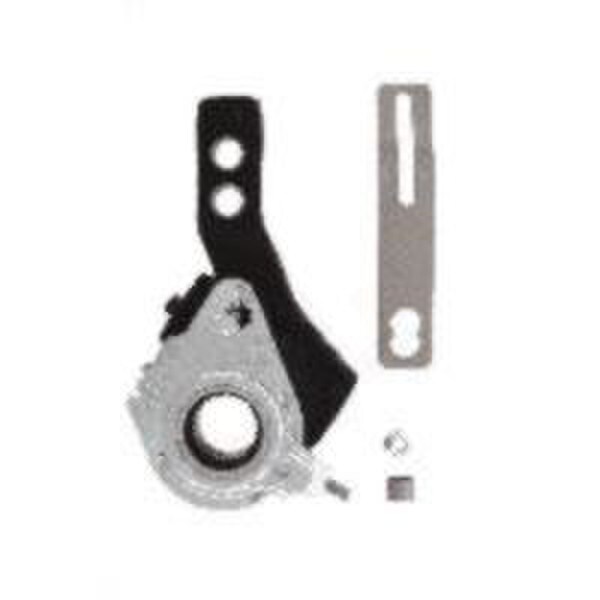

Meritor Premium ASA - M807024

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 34 degrees
• Application: Drive
• Arm Length: 5.00 in. or 6.00 in.
• Brake Size: 16.50 in.
• Bushing Inside Diameter: 0.625 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806024A.
• OEM: Haldex
• Production Part Number: 409-10742
• Related Bracket Number: R810300
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

0034286, 05655, 10-400-10140, 10140, 1040010140, 1666360C91, 25QD259P2, 25QD259P4, 25QD260M, 25QD260M5, 25QD410, 25QD410P5, 313577, 3523702, 3946256, 40010140, 40010140-MD, 40010140M1D, 40010140MD, 409-10093, 409-10125, 409-10149, 409-10178, 409-10225, 409-10241, 409-10314, 409-10343, 409-10360, 409-10404, 409-10405, 409-10426, 409-10428, 409-10457, 409-10531, 409-10552, 409-10561, 409-10566, 409-10615, 409-10680, 409-10732, 409-10741, 409-10742, 409-10858, 409-10868, 40910093, 40910125, 40910149, 40910178, 40910225, 40910241, 40910314, 40910343, 40910360, 40910404, 40910405, 40910426, 40910428, 40910457, 40910531, 40910552, 40910561, 40910566, 40910615, 40910680, 40910732, 40910741, 40910742, 40910858, 40910868, 4W8055, 500-10140, 50010140, 506272, 509-10093, 509-10149, 509-10225, 509-10241, 509-10314, 509-10404, 509-10405, 509-10426, 509-10566, 509-10742, 50910093, 50910149, 50910225, 50910241, 50910314, 50910404, 50910405, 50910426, 50910566, 50910742, 516160, 5396-40010140, 539640010140, 767653143361, 7883-40010140, 788340010140, 808129, 808132, 808142, 808166, 808179, 808685, 808746, 809614, 810601, 810603, 815787, 815806, 815828, 815829, 818223, 818991, 819675, 825703, 8316721, A13275E1279, A19-3275-S-1059, A193275S1059, A20-3275-S-1059, A203275S1059, A3275S1059, A44-3275-S-1059, A443275S1059, A453275S1059, ABPN42AS40010140, ACCAS1141, AS1039, AS1041, AS1139, AS1141, ASH40010140, BBH-RB-10140, BBHRB10140, BNDK041877, BP10140, BXK041877, CS52343, CS56039, E-6925, E-6925A, E-6925B, E6925, E6925A, E6925B, FLT40010140, FLTAS1141, GT-56140, GT56140, GTA-40010140, GTA40010140, GUNAS-1141, GUNAS1141, HA-400-10140, HA40010140, HAE40010140, HAL40010140, HDX400-10140, HDX40010140, HSA-5041, HSA5041, HX400-10140, HX40010140, K041877, K041877BXW, KSA10140, MBI40010140, MID40010140, MK22103S, MK22103SG, MK42106S, MK42106SH, N42AS, OTR10140, PL-10140, PL10140, PROSA56140, R806024, RB-10140, RB10140, S-23849, S23849, SA10100, SAB40010140, SAP10140, WA10140, ZBRAS1139, ZBRAS1141, ZSA40010140, ZZ40010140
