Meritor Premium ASA - M807020

Product Description

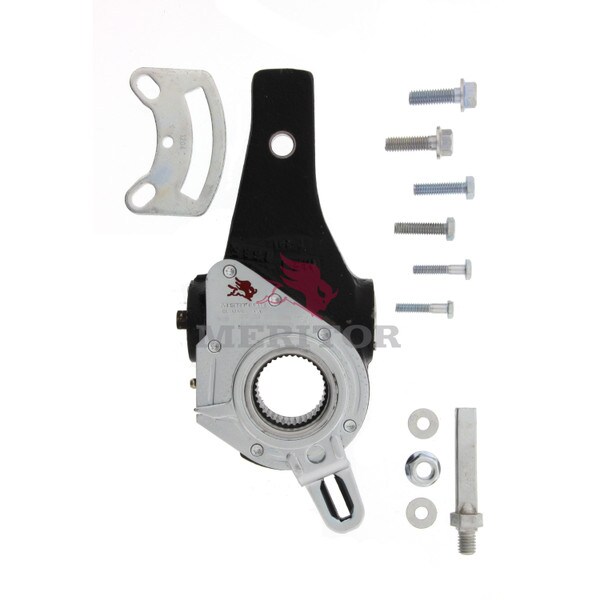

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 0 degrees
• Application: Trailer
• Arm Length: 5.50 in.
• Brake Size: 16.50 in.
• Bushing Inside Diameter: 0.50 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806020A. Self-Setting alternative is M808000.
• OEM: Haldex
• Production Part Number: 409-10684
• Related Bracket Number: R810301
• Sensing Type: Clearance
• Slack Spline Count: 37
• Slack Spline Diameter: 1.625 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

10-400-10213, 10-4NL-10213, 1040010213, 104NL10213, 3099645, 400-10213, 40010213, 40010213-MD, 40010213M1D, 40010213MD, 409-10351, 409-10432, 409-10473, 409-10674, 409-10684, 40910351, 40910432, 40910473, 40910674, 40910684, 429-10684, 42910684, 4NL-10684, 4NL10214, 4NL10684, 4W8100, 500-10213, 50010213, 509-10351, 509-10473, 509-10684, 50910351, 50910473, 50910684, 5396-40010213, 539640010213, 767653143637, 810686, 813640, 813650, 818143, AS1043, AS1143, ASH40010213, CS52357, CS56043, E-6947, E11923, E6947, HA-400-10213, HA40010213, HAL40010213, HDX400-10213, HDX40010213, HX400-10213, HX40010213, M807020, MBI40010213, MID40010213, MK23100S, MK43100S, R806020, SA1143A, STEMK43100S, ZBRAS1143, ZSA40010213, ZZ40010213
