Meritor Premium ASA - M807017

Product Description

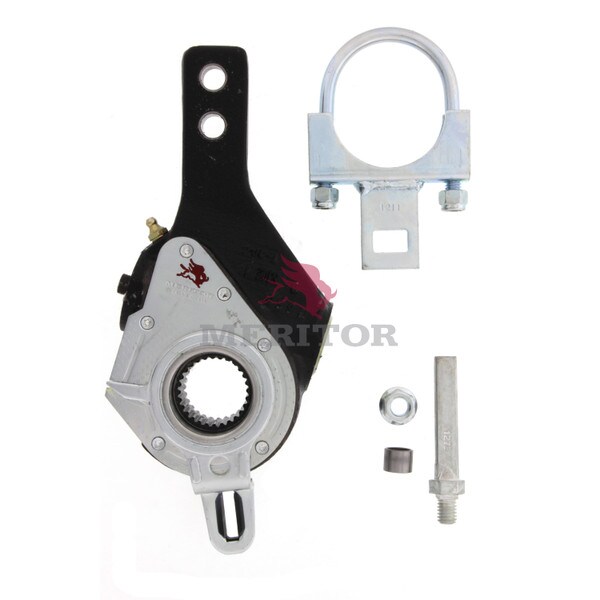

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 16 degrees
• Application: Drive
• Arm Length: 5.50 in. or 6.50 in.
• Brake Size: 16.50 in.
• Bushing Inside Diameter: 0.50 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806017A.
• OEM: Haldex
• Production Part Number: 409-10679
• Related Bracket Number: R810302
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

40020243, 5396-40020243, 539640020243, 767653321691, HDX40020243, M808006, MID40020243, ZZ40020243
