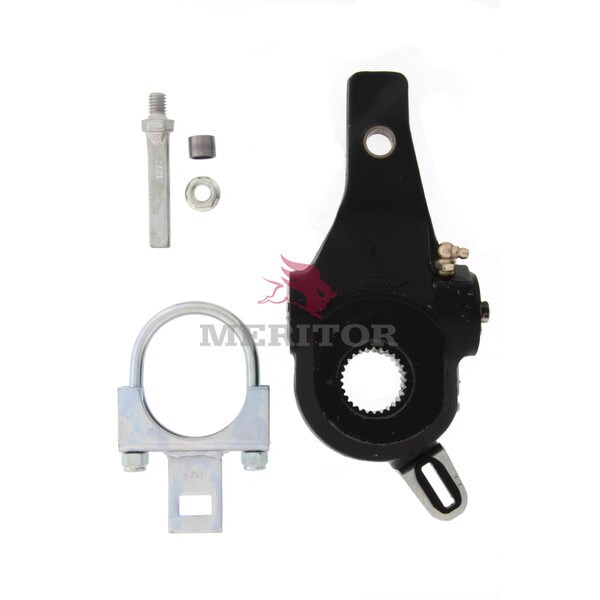

Meritor Premium ASA - M807012

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 0 degrees
• Application: Steer
• Arm Length: 5.50 in.
• Brake Size: 15.00 in.
• Bushing Inside Diameter: 0.625 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806012A. Self-Setting alternative is M808012.
• OEM: Haldex
• Production Part Number: 409-10663
• Related Bracket Number: R810302
• Sensing Type: Clearance
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

25QD340P11, 25QD345P2, 25QD356, 345P2, 3523710, 40010008, 40010008-MD, 40010008M1D, 40010008MD, 409-10166, 409-10168, 409-10258, 409-10384, 409-10502, 409-10625, 409-10637, 409-10663, 40910166, 40910168, 40910258, 40910384, 40910502, 40910625, 40910637, 40910663, 500-10008, 50010008, 506531, 509-10168, 509-10228, 509-10258, 509-10502, 509-10663, 50910168, 50910228, 50910258, 50910502, 50910663, 5396-40010008, 539640010008, 767653142937, 7883-40010008, 788340010008, 808131, 808168, 809611, 810600, 815821, 973648, A233275S1059, ACCAS1140, AS1040, AS1140, ASH40010008, CS52320, CS52320M1D, CS56040, CS56040M1D, E-6905, E-6905A, E6905, E6905A, FLTAS1140, GUNAS-1140, GUNAS1140, HA-400-10008, HA40010008, HAL40010008, HDX40010008, HX400-10008, HX40010008, M807025, MBI40010008, MID40010008, R806012, R806025, ZBRAS1040, ZBRAS1140, ZSA40010008, ZZ40010008, ZZCS56040
