Meritor Premium ASA - M807009

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 0 degrees
• Application: Steer
• Arm Length: 5.50 in.
• Brake Size: 15.00 in.
• Bushing Inside Diameter: 0.625 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806009A. Self-Setting alternative is M808002.
• OEM: Haldex
• Production Part Number: 409-10658
• Related Bracket Number: R810302
• Sensing Type: Clearance
• Slack Spline Count: 10
• Slack Spline Diameter: 1.25 in.
• Type: Unhanded

Includes

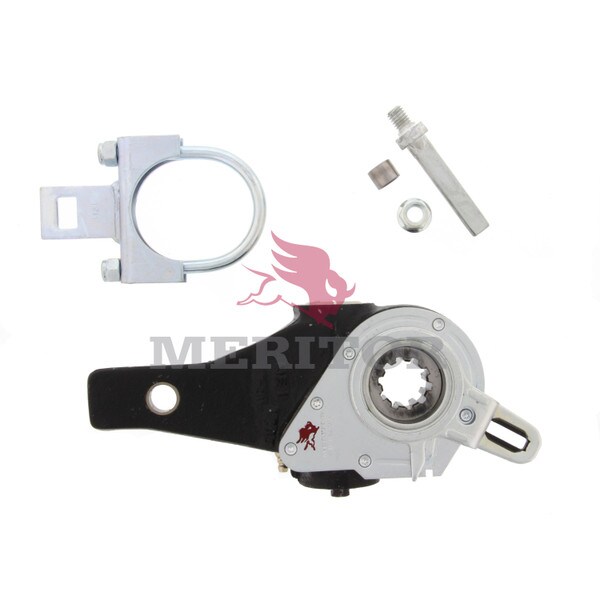

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

10-400-10001, 1040010001, 1598267, 3117418, 315293, 3946252, 40010001, 40010001-MD, 40010001M1D, 40010001MD, 409-10128, 409-10224, 409-10391, 409-10495, 409-10658, 40910128, 40910224, 40910391, 40910495, 40910658, 500-10001, 50010001, 509-10224, 509-10495, 509-10658, 50910224, 50910495, 50910658, 5396-40010001, 539640010001, 767653142869, 7883-40010001, 788340010001, 808123, 808160, 808695, 808774, 809774, 811850, 815795, 815814, 973644, AS1036, AS1136, AS1152, ASA100, ASH40010001, CS52358, CS52360, CS56036, CS56052, E-6900, E-6900A, E-6901, E6900, E6900A, E6901, GUNAS-1136, GUNAS1136, HA-400-10001, HA40010001, HAE40010001, HAL40010001, HDX400-10001, HDX40010001, HX40010001, MBI40010001, MID40010001, R806009, ZBRAS1136, ZSA40010001, ZZ40010001
