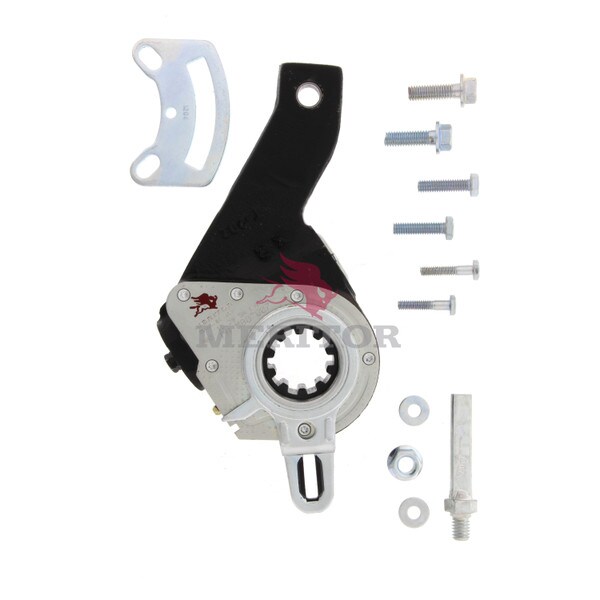

Meritor Premium ASA - M807007

Product Description

AIR BRAKE - ASA - HALDEX AA1 STYLE

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - Linehaul: 6 Years / 1 Million Miles
• Aftermarket Extended Warranty - Severe D: 2 Years / 100K Miles
• Angle: 34 degrees
• Application: Trailer
• Arm Length: 6.00 in.
• Brake Size: 12.25 in.
• Bushing Inside Diameter: 0.50 in.
• Clevis Type: Unclevised
• Maximum Torque Rating: Less than 15 foot pounds
• Model: AA1 Replacement
• Notes: Premium version. Standard version is R806007A.
• OEM: Haldex
• Production Part Number: 409-10656
• Related Bracket Number: R810301
• Sensing Type: Clearance
• Slack Spline Count: 10
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

Premium ASA

Warranty

Warranty depends on application and product type. Contact us to learn more.

Specifications

Cross Reference

10-400-10306, 1040010306, 400-10-306, 40010306, 40010306-MD, 40010306M1D, 40010306MD, 409-10111, 409-10211, 409-10245, 409-10279, 409-10297, 409-10318, 409-10418, 409-10492, 409-10656, 40910111, 40910211, 40910245, 40910279, 40910297, 40910318, 40910418, 40910492, 40910656, 420-10656, 42010656, 429-10656, 42910656, 500-10306, 50010306, 509-10318, 509-10492, 509-10656, 50910318, 50910492, 50910656, 5396-40010306, 539640010306, 767653143736, 7883-40010306, 788340010306, 808118, 808146, 808154, 808183, 813646, 813656, 818149, ASH40010306, BXK041876, E-6928, E6928, GTA-40010306, GTA40010306, HAL40010306, HDX400-10306, HDX40010306, HX40010306, K041876, K041876BXW, MBI40010306, MID40010306, R806007, SA10306, ZSA40010306, ZZ40010306
