Red Dot 73 Series Blower Motor - RD-5-4927-0P

Product Description

Your HVAC unit may need replacement after 10 years; but if you notice leaks or cracks, it may be time to replace evaporators, condensers or compressors sooner than later to maintain comfort while driving your big rig. When in need of replacement HVAC parts, turn to Red Dot.

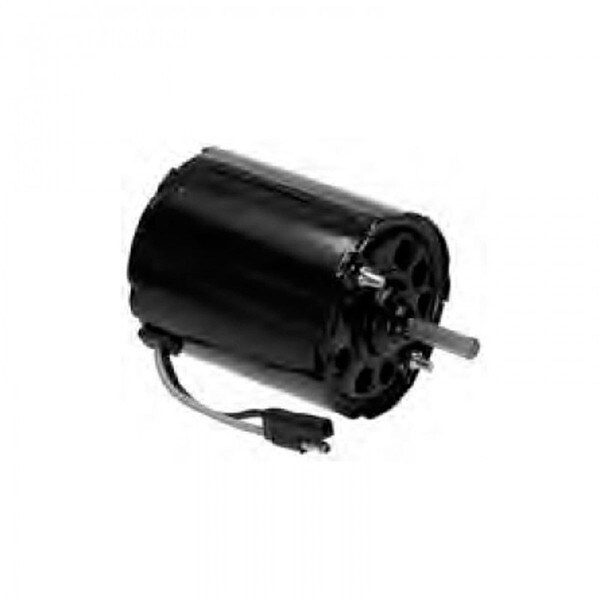

This 73 Series 12V blower motor features an overall length measurement of 4 1/2 inches with a motor length of 3 5/8 inches. Motor diameter measures 3 inches. It contains 2 5/16 inch mounted studs and a single shaft that measures 5/16 inches in diameter. This single speed motor with two conductors, combined male/female bullet connectors, is vented and moves counter clockwise.

This product comes with a one year warranty.

Red Dot Corporation is one of the top names in the HVAC industry with a full line of HVAC components for all types of heavy-duty commercial vehicles. When in need of HVAC parts for your semi-truck, trust Red Dot for quality and reliability!

Features

• Overall length measurement of 4 1/2 inches
• Motor length of 3 5/8 inches
• Motor diameter measures 3 inches
• 2 5/16 inch mounted studs
• Single shaft that measures 5/16 inches in diameter
• Single speed motor with two conductors
• Combined male/female bullet connectors
• Vented
• Moves counter clockwise

Includes

Single shaft motor

Warranty

1 year

Cross Reference

203173, 203225, PM342, PM372, 488831C1, 488831-C1, 488843-C91, 498554-C92, ZGG13628
