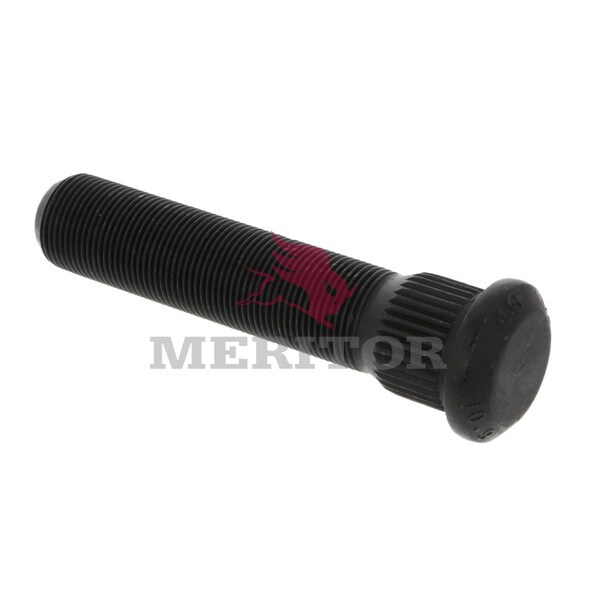

Meritor WHEEL STUD, Pack(10EA) - R0010676

Product Description

WHEEL END HARDWARE - WHEEL STUD

Features

• Body Diameter: 0.975 in.
• Body Length: 0.72 in.
• Grade: 10.9
• Head Diameter: 1.31 in.
• Head Style: Round
• Head Thickness: 0.31 in.
• Length from Under Head: 4 1/4 in.
• Metric Thread Size: M22 x 1.5 - 6g
• Serration: Serrated
• Serration Diameter: 1.015 in.
• Serration Length: 0.50 in.
• Thread: M22 x 1.5
• Thread Diameter: 22.0 mm
• Thread Length: 3.28 in.
• Threads per Inch: 1.5 per mm
• Type: Headed
• Wheel End Thread Direction: RH

Includes

Wheel End Metric Stud R0010676

Warranty

1 Year

Cross Reference

131577, 2R0010676, 610-0095.10, E10676, R0010676
