  • Meritor WHEEL STUD, 5pk - 09002005

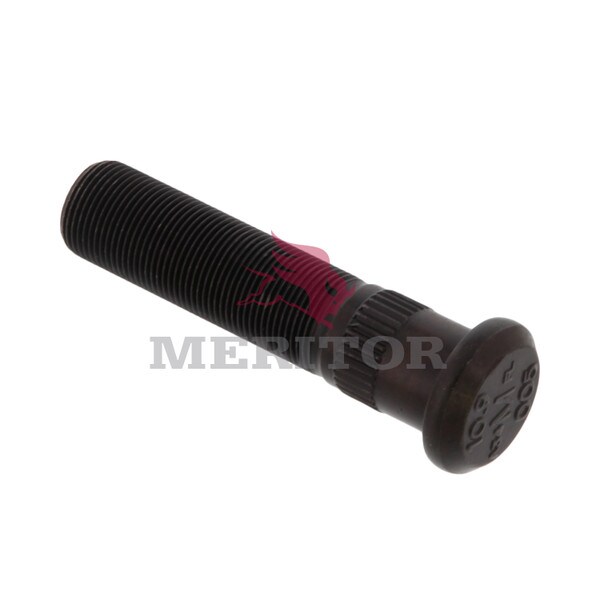

Meritor WHEEL STUD, 5pk - 09002005

SKU 09002005
$77.89
(0)No Reviews yet

Details

Product Description

WHEEL END WHEEL STUD BOLT-SERR M22 x


Features

  • Body Diameter: 0.890 in.
  • Body Length: 1.12 in.
  • Grade: 10.9
  • Head Diameter: 1.31 in.
  • Head Style: Round
  • Head Thickness: 0.31 in.
  • Length from Under Head: 3 55/64 in.
  • Metric Thread Size: M22 X 1.5-6g
  • Notes: Grade 10.9 is the metric equivalent of Grade 8
  • OEM: Euclid E-11717
  • Serration: Serrated
  • Serration Diameter: 0.939 in.
  • Serration Length: 0.38 in.
  • Thread: M22 x 1.5
  • Thread Diameter: 22.0 mm
  • Thread Length: 2.63 in.
  • Threads per Inch: 1.5 per mm
  • Type: Headed
  • Wheel End Thread Direction: RH

Warranty

1 Year


Cross Reference

Euclid E-11717


Specifications

ESC0
BrandMeritor
MPN9002005
Width3.8
VMRS018-003-009
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height3.85

Prop 65
