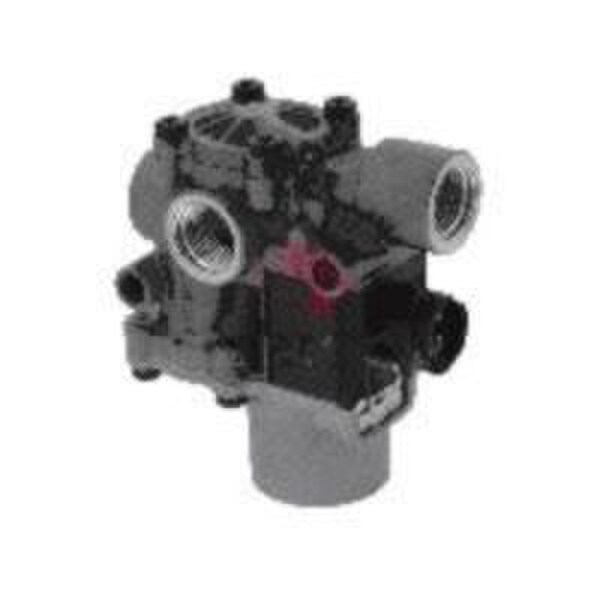

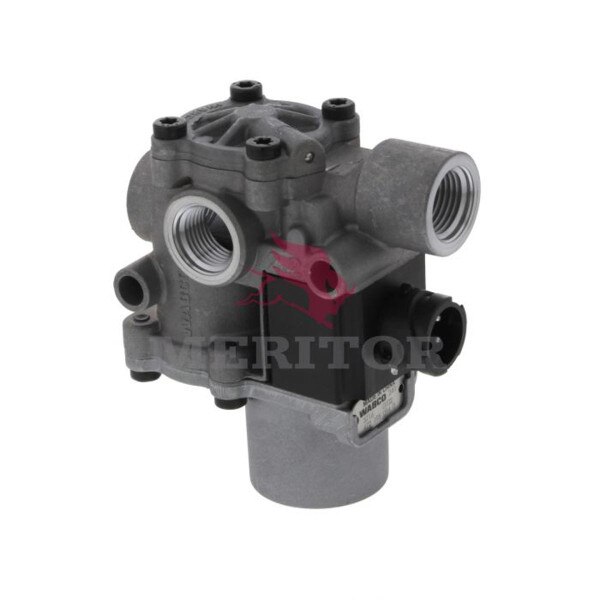

WABCO Air Solenoid Flap Exhaust Tractor - 4721950940 - 472 195 094 0
Details
Product Description
ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.
This ABS solenoid modulator valve for tractors contains air cooling and a 2x" 8.5 mm mounting. In addition to flap exhaust, the unit offers Bayonet DIN 72 585 A1-3.1-Sn/K1 electrical connection with a rated current of 2220 mA. This 12 volt unit has a IP 66 / 69 K protection class; a calculated volume of .69896 and a temperature range of -40°C to +80°C. Ports 1 and 2 each measure 1/2 inch.
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.
Features
- Air cooling
- 2x" 8.5 mm mounting
- Flap exhaust
- Bayonet DIN 72 585 A1-3.1-Sn/K1 electrical connection
- Rated current of 2220 mA
- IP 66 / 69 K protection class
- Calculated volume of .69896
- Temperature range of -40°C to +80°C
- Ports 1 and 2 measure 1/2 inch
Includes
One ABS Valve With Quick Release
Warranty
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
Cross Reference
Wabco 4721950940 Cross References
20851002, 4006110400, 4721950529, 4721950770, 4721950780, 4721950790, 4721950950, 4721950980, 6300-4721950770, 6300-4721950780, 6300-4721950790, 6300-4721950940, 6300-4721950950, 6300-4721950980, 8235-S4721950770, 8235-S4721950780, 8235-S4721950790, 8235-S4721950940, 8235-S4721950950, R955354, S472-195-077-0, S472-195-078-0, S472-195-079-0, S472-195-094-0, S472-195-095-0, S4721950770, S4721950780, S4721950790, S4721950940, S4721950950, S4721950980, TDAS4721950770, TDAS4721950780, TDAS4721950790, TDAS4721950940, TDAS4721950950, WAB4721950770, WAB4721950780, WAB4721950790, WAB4721950940, WAB4721950950, WAB4721950980, WO4721950770, WO4721950950, ZN304016, ZN304018
Specifications
| Volume | 0.69896 |
| Operating Temperature Range | -40 to + 185° F |
| Port Size | 11986 |
| Brand | wabco |
| Supersedes | S4721950940 |
| Protection | IP 66/ IP 69K |
| Voltage | 12V DC |
| MPN | 4721950940 |
| Width | 5 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.1 in. |
| Benefits | This ABS solenoid modulator valve for tractors contains air cooling and a 2x" 8.5 mm mounting. In addition to flap exhaust, the unit offers Bayonet DIN 72 585 A1-3.1-Sn/K1 electrical connection with a rated current of 2220 mA. This 12 volt unit has a IP 66 / 69 K protection class; a calculated volume of .69896 and a temperature range of -40°C to +80°C. Ports 1 and 2 each measure 1/2 inch. |
