WABCO Single Cylinder Flange Water Cooler - 4123520250 - 412 352 025 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

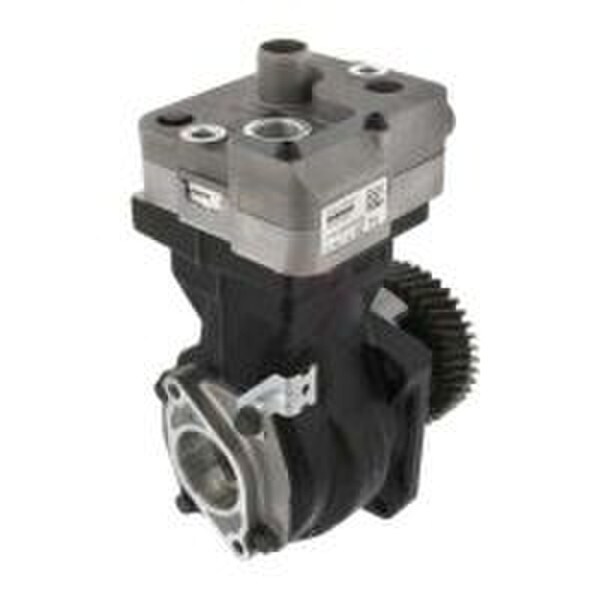

The WABCO Single Cylinder Flange Water Cooler - 4123520250 is the ideal way to make sure your semi-truck has the right parts inside. This single cylinder flange mounted compressor from the trucking specialists at WABCO contains water cooling and lubrication supplied from the engine. It has a max operating pressure of 12.5 bar and a crankshaft thread measurement of M20 x 1.5 LH. Its operating speed is 3000 (1/min) with a piston diameter of 85 millimeters and a piston stroke of 62 millimeters. The WABCO Water Cooler4123520250 has aswept volume of352 cm3 and calculated volume of15.5304. Port thread sizes are as follow: Port 0: " 30 mm; Port 2: M26 x 1.5; Port 4: M12 x 1.5; Port 8.1: " 6 mm; Port 9.1 and 9.2: M14 x 1.5.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

• Flange mounted
• Water cooling
• Lubrication supplied from the engine
• Max operating pressure of 12.5 bar
• Crankshaft thread measurement of M20 x 1.5 LH
• Operating speed is 3000 (1/min)
• Piston diameter of 85 millimeters and a piston stroke of 62 millimeters
• Swept volume is 352 cm3
• Calculated volume is 15.5304
• Port 0: " 30 mm; Port 2: M26 x 1.5; Port 4: M12 x 1.5; Port 8.1: " 6 mm; Port 9.1 and 9.2: M14 x 1.5

Includes

One single-cylinder compressor

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

412 352 025 0, 4123520250, 4123520250X, 4123520259, 6300-4123520250, 9061301315, 9061301415, 9061303015, 9061304315, 9061306215, 9500693, A9061301315, A9061301415, A9061303015, A9061304315, A9061306215, S412-352-025-0, S4123520250, TDAS4123520250, WAB4123520250, WN4123520250412 352 025 0, 4123520250X, 4123520259, 6300-4123520250, 9061301315, 9061301415, 9061303015, 9061304315, 9061306215, 9500693, A9061301315, A9061301415, A9061303015, A9061304315, A9061306215, S412-352-025-0, S4123520250, TDAS4123520250, WAB4123520250, WN4123520250
