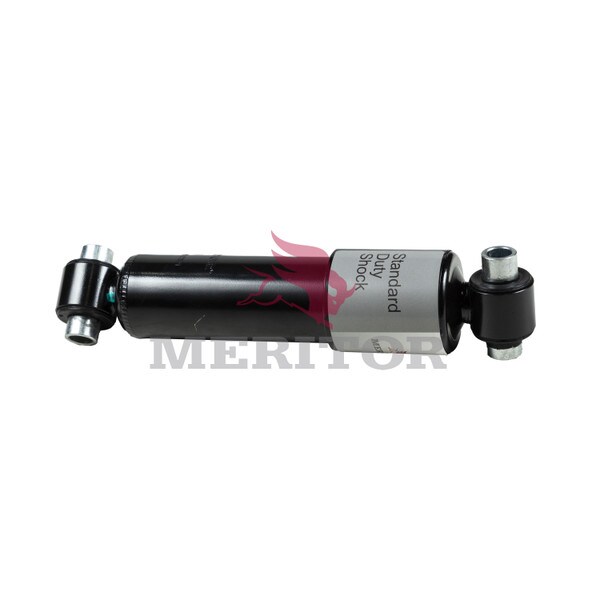

Meritor SHOCK ABSORBER - M83028
Details
Product Description
SHOCK ABSORBER
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor SHOCK ABSORBER - M83028 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Body Diameter (in.): 2.00 in.
- Body Diameter (mm): 50.8 mm
- Bore (in.): 1.26 in.
- Bore (mm): 32 mm
- Collapsed Length (in.): 7.64 in.
- Collapsed Length (mm): 194 mm
- Dust Shield Diameter (in.): 2.36 in.
- Dust Shield Diameter (mm): 60 mm
- Extended Length (in.): 9.96 in.
- Extended Length (mm): 253 mm
- Family Code: 35FC-Cab
- Hydraulic Stop: No
- Stroke: 59 mm
- Stroke Inch: 2.32 in.
- Type: Cab Damper
Includes
Meritor SHOCK ABSORBER - M83028
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
317772, 3949242, 66108, 8078546, 83028, A83028, M83028
Specifications
| Width | 5809 |
| Stroke Inch | 7400 |
| Family Code | 3947 |
| Height | 5748 |
| Model | 7398 |
| Length | 7397 |
| Brand | Meritor |
| Stroke | 55.8 mm |
| MPN | M83028 |
| UPC | 43645705107 |
| Color | Black |
| Width | 3 in. |
| VMRS | 016-008-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3 in. |
| Benefits | SHOCK ABSORBER |
