Meritor AIR SPRING - FS9422

Product Description

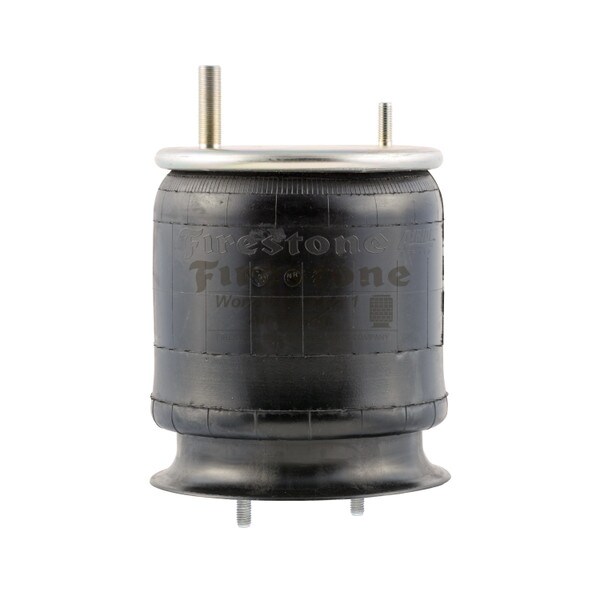

FIRESTONE AIR SPRING

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / 300K Miles
• Application: Kenworth K303-6; Kenworth K303-14; Kenworth K303-15 ; Airglide 100 - older version with no bracket
• Bead Plate Diameter Bottom: 9.50 in.
• Bead Plate Diameter Top: 9.00 in.
• Collapsed Height: 3.80 in.
• Convoluted Style: 1T Reversible Sleeve
• Max. Height: 13.30 in.
• Part Diameter: 9.12 in.
• Piston Height: 2.80 in.
• Stud Configuration-Bottom: 02
• Stud Configuration-Top: 02
• Stud Mount-Bottom Flat: Stud
• Stud Mount-Top Flat: Stud

Includes

AIR SPRING

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

019422, 1000-AS9422, 1000AS9422, 1003589422C, 1R11-028, 1R11028, 1T15KW15, 3040-W013589422, 3040W013589422, 3529422, 3918326, 551001, 64255, 8314, 9205, 9422, 9614, 9615, 9912P314, ABPN32019422, AS0017, AS9422, ASPR9L129422, CS111028, FIRW01-358-9422, FIRW013589422, FIW013589422, FLRTMX1R11028, FLT1R11028, FLTA1R11028, FSIW013589422, G2299422200, GTK-358-9422, GTK3589422, GY1R11028, GYR1R11028, HDV9422, K-303-14, K-303-15, K-303-6, K303-14, K303-15, K303-6, K30314, K30315, K3036, M3525, MAF9422, PR9L12, RCAS9422, S13032, TAS9422, TR9422, TWDW013589422, VX9422, W01-358-9422, W01-544-9614, W013589422, W015449614, WA01-9422C, WA019422C
