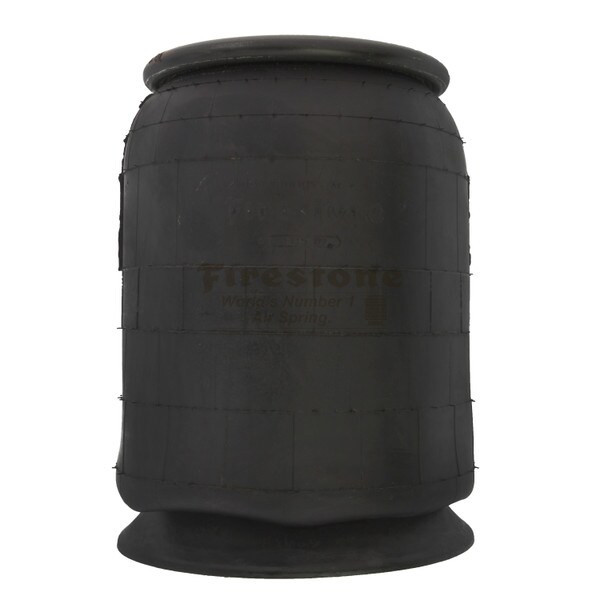

Meritor AIR SPRING - FS8852
Details
Product Description
SUSPENSION - AIR SPRING
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Features
- Aftermarket Extended Warranty - General: 3 Years / 300K Miles
- Bead Plate Diameter Bottom: 10.25 in.
- Bead Plate Diameter Top: 9.00 in.
- Collapsed Height: 6.70 in.
- Convoluted Style: 1T Reversible Sleeve
- Max. Height: 23.50 in.
- Part Diameter: 10.12 in.
- Piston Height: 5.69 in.
- Stud Configuration-Bottom: 01
- Stud Configuration-Top: 03
- Stud Mount-Bottom Flat: Stud
- Stud Mount-Top Flat: Flat
Includes
AIR SPRING
Warranty
Warranty depends on application and product type. Contact us to learn more.
Cross Reference
Meritor FS8852 Cross References
03-07887, 0307887, 10-19, 1000-AS8852, 1000AS8852, 141010800, 1R12-1081, 1R12-568, 1R121081, 1R12568, 307887, 64339, 91019P472, AS8852, AS88520, FIW013588852, FLT1R12568, FLTA1R12568, FS8852, FSIW013588852, G2298852200, GTK-358-8852, GTK3588852, GY1R12568, HDV8852, MAF8852, RCAS8852, TAS8852, TR8852, TWDW013588852, VX8852, W01-358-8852, W013588852, WA01-8852C, WA018852C
Specifications
| Brand | Meritor Genuine |
| MPN | FS8852 |
| Width | 10.5 |
| VMRS | 016-008-000 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 10.25 |
| Benefits | AIR SPRING |
