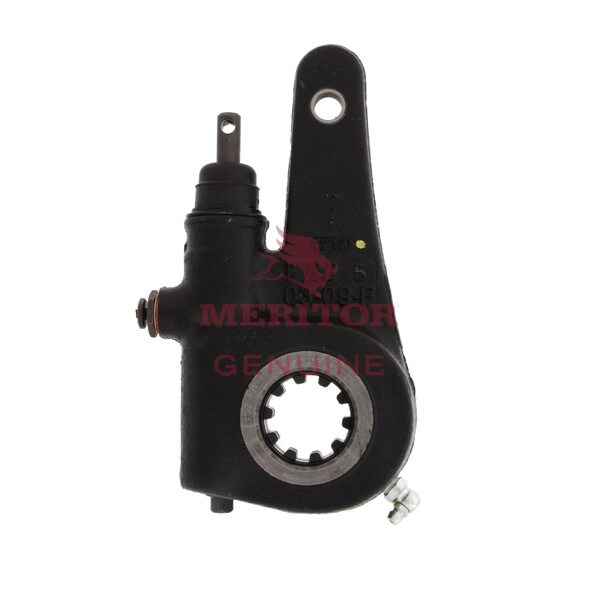

Meritor Genuine AY-ASA 1.50-10 - R803195

Product Description

AIR BRAKE - ASA - MERITOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.50 in.
• Chamber Sizes: 24
• Clevis Type: Unclevised
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Yellow piston. Drum brake.
• OEM: Meritor
• Related Clevis Kit: R810009
• Sensing Type: Stroke
• Slack Spline Count: 10
• Slack Spline Diameter: 1.50 in.
• Type: Unhanded

Includes

AY-ASA 1.50-10

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

03-05886, 03-06008, 0305886, 05-561, 05-651, 055-040-0410-400-10144, 055-040-0410-400-10212, 05561, 05CB21100, 065170, 065170N, 065175, 065700, 10-400-10143, 10-400-10155, 10-4NL-10212, 1004585, 10143HDA, 10144HDA, 101988, 102115/16, 10211516, 10212, 102538, 102539, 1040010143, 1040010144, 1040010155, 1040010212, 10480701, 104NL10212, 10600055, 106195, 106201, 106205, 106926, 106958, 106959, 107101, 107103, 107106, 107127, 107176, 107262, 107273, 107277, 107278, 107297, 107736, 107772, 107773, 107787, 107907, 107994, 107995, 107999, 108091, 108093, 108117, 108430, 108647, 1090266, 109519, 1132HDA, 1132TP, 11398, 1191037, 131026, 133.2841, 1331031, 1332832, 1351031, 1351034, 1352832, 1352833, 1352835, 1352841, 1361031, 13656, 138.1011, 138.283, 1391031, 1391032, 1391033, 15809, 1694310C91, 1694312C91, 1694313C91, 1694318C91, 1694319C91, 20212, 20527305, 2105-0006, 214618, 23275N768S, 25QD259P7, 25QD260M6, 25QD340P6, 25QD410P4, 25QD412, 25QD419, 25QD49, 25QD51P2, 25QD51P3, 25QDA259P7, 25QDA340, 289312, 28931213, 289313, 289654, 289654/55, 28965455, 289655, 289746, 289747, 289748, 289748/49, 28974849, 289749, 289933, 289934, 2R803024, 2R803025, 306008, 317166, 317167, 3398-AS1132, 3398-AS1141, 3398-AS1168, 3398AS1132, 3398AS1141, 3398AS1168, 3508802, 3508808, 3508814, 3513965, 3513971, 3820002201, 386918A, 386942, 3946099, 3946255, 3947623, 3947668, 40--10673, 400-10071, 400-10103, 400-10143, 400-10144, 400-10145, 400-10155, 400-10183, 400-10212, 400-10215, 400-20212, 400-20215, 400-20225, 400-20226, 40010005, 40010012, 40010071, 40010071-MD, 40010071M1D, 40010071MD, 40010103, 40010104, 40010106, 40010121, 40010143, 40010143-MD, 40010143M1D, 40010143MD, 40010144, 40010144-MD, 40010144M1D, 40010144MD, 4001015, 40010155, 40010155M1D, 40010200, 40010212, 40010212-MD, 40010212M1D, 40010212MD, 40010215, 40010215M1D, 40020212, 40020212M1D, 40020215, 40020215M1D, 40020236, 4010673, 4017A23665, 409-10070, 409-10085, 409-10101, 409-10134, 409-10135, 409-10167, 409-10223, 409-10232, 409-10233, 409-10234, 409-10235, 409-10238, 409-10288, 409-10293, 409-10294, 409-10313, 409-10352, 409-10370, 409-10371, 409-10387, 409-10394, 409-10396, 409-10397, 409-10412, 409-10417, 409-10443, 409-10472, 409-10475, 409-10505, 409-10509, 409-10529, 409-10548, 409-10555, 409-10565, 409-10579, 409-10605, 409-10635, 409-10649, 409-10662, 409-10673, 409-10678, 409-10733, 409-10760, 409-10787, 409-10817, 409-10860, 409-10980, 409-20000, 409-20006, 40910070, 40910085, 40910101, 40910111, 40910134, 40910135, 40910146, 40910167, 40910211, 40910223, 40910234, 40910235, 40910238, 40910245, 40910279, 40910288, 40910294, 40910313, 40910352, 40910370, 40910387, 40910396, 40910397, 40910412, 40910417, 40910418, 40910443, 40910472, 40910492, 40910505, 40910509, 40910529, 40910548, 40910555, 40910565, 40910579, 40910627, 40910635, 40910649, 40910662, 40910673, 40910678, 40910733, 40910760, 40910787, 40910860, 40920000, 40920006, 410P4, 42521, 429-10673, 429-10685, 429-10760, 42910673, 42910760, 4311205, 480 MTRR806013, 4NL10071, 4NL10212, 4W8045, 500-10071, 500-10143, 500-10144, 500-10155, 50010071, 50010143, 50010144, 50010155, 50010212, 5011233, 506269, 506726, 507032, 509-10070, 509-10085, 509-10101, 509-10134, 509-10135, 509-10223, 509-10234, 509-10238, 509-10294, 509-10370, 509-10387, 509-10396, 509-10412, 509-10417, 509-10443, 509-10472, 509-10548, 509-10565, 509-10579, 509-10635, 509-10673, 509-10678, 509-10733, 509-10760, 50910070, 50910085, 50910101, 50910134, 50910135, 50910223, 50910234, 50910238, 50910294, 50910370, 50910387, 50910396, 50910412, 50910417, 50910443, 50910472, 50910548, 50910565, 50910579, 50910635, 50910673, 50910678, 50910733, 50910760, 516162, 516163, 516165, 52211, 52510, 52512, 52529, 5396-40010071, 5396-40010143, 5396-40010144, 5396-40010155, 5396-40010212, 5396-40020212, 5396-40020215, 539640010071, 539640010143, 539640010144, 539640010155, 539640010212, 539640020212, 539640020215, 5504004, 556510, 56041, 600028, 65170, 65170P, 65171, 65175, 65176, 65700, 6814205738, 6918A, 6919A, 6924A, 6924B, 70910673, 737238548423, 76401-0100, 76401-0134, 76401-3455, 76401-3498, 76401-3505, 76401-3509, 76401-3805, 764010100, 764010134, 764013455, 764013498, 764013505, 764013509, 764013805, 767653143231, 767653143392, 767653143408, 767653143446, 767653143620, 767653289175, 767653289205, 77065170, 77065700, 7883-40010071, 7883-40010143, 7883-40010144, 7883-40010155, 7883-40010212, 788340010071, 788340010143, 788340010144, 788340010155, 788340010212, 801041, 801041HDA, 801353, 801358, 8060851, 8060858, 807566, 808113, 808125, 808137, 808139, 808143, 808149, 808162, 808163, 808174, 808176, 808180, 8084129, 8084132, 8086519, 808679, 808684, 808688, 809610, 809613, 809614, 810180, 810728, 810815, 811847, 813246, 813247, 813639, 813649, 813656, 813824, 815787, 815790, 815792, 815801, 815809, 815811, 815812, 817533, 818142, 818220, 818301, 818552, 819036, 8235-M807022, 8235-R801041, 8235-R803195, 8235M807022, 8235R801041, 8235R803195, 823661, 825468, 8313769, 85100210, 9628R803195, 973530, 973649, 973802, 973803, 973971, 974239, 974294, 975628, 975628N, A-3275-X-596, A1-3275-G-1151S, A1-3275-N-768S, A1-3275-U-1139, A1-3275-V-1139S, A1-3275A599S, A1-3275N768S, A1-3275U593S, A1-3275V1139S, A10-3275-A-599S, A10-3275-N-716S, A10-3275-U-593S, A10-3275A599S, A10-3275N716S, A10-3275U593S, A103275A599S, A103275N716S, A103275U593S, A11-3275-N-716S, A11-3275-U-593S, A11-3275N716S, A11-3275U593S, A113275N716S, A113275U593S, A13-3275-C-1147S, A13275A599, A13275A599S, A13275C601, A13275C601S, A13275N768S, A13275U1139, A13275U593, A13275U593S, A13275V1139S, A13275W595, A13275W595S, A15-3275-A-599S, A15-3275-H-1152S, A15-3275A599S, A15-3275N716S, A153275A599S, A153275H1152S, A153275N716S, A16-3275-B-600S, A16-3275-H-1152S, A16-3275-N-716S, A16-3275-V-594S, A16-3275B600S, A16-3275N716S, A16-3275U593S, A16-3275V594S, A163275B600S, A163275H1152S, A163275N716S, A163275U593S, A163275V594S, A17-3275-B-600S, A17-3275-H-1152, A17-3275-V-594S, A17-3275B600S, A17-3275V594S, A173275B600S, A173275H1152, A173275V594S, A19-3275-N-716S, A19-3275N716S, A193275N716S, A2-3275-L-792S, A2-3275-Q-1083, A2-3275-R-1084, A2-3275-Y-1091S, A2-3275-Z-1092-S, A2-3275B600S, A2-3275L792S, A2-3275N716S, A2-3275Q1083, A2-3275R1084, A2-3275V594S, A2-3275Y1091S, A2-3275Z1092S, A20-3275-N-716S, A20-3275N716S, A203275N716S, A22-3275-B-600S, A22-3275-N-768S, A22-3275-V-594S, A22-3275B600S, A22-3275N768S, A22-3275V594S, A223275B600S, A223275N768S, A223275V594S, A23222F1072, A23275B600, A23275B600S, A23275L792S, A23275N716S, A23275Q1083, A23275R1084, A23275V59, A23275V594S, A23275Y1091S, A23275Z1092S, A23275Z598, A23275Z598S, A25-3275-A-1145S, A25-3275-Z1144S, A25-3275M1079, A253275M1079, A26-3275-N-768S, A26-3275N768S, A263222F1072, A263275N768S, A29-3275-A-1145S, A293275Z1144S, A3-3275-W-1089S, A3-3275-X-1090S, A3-3275W1089S, A3-3275X1090S, A3275X596, A33275E1149S, A33275W1089S, A33275X1090S, A39-3275-N-768, A393275N768, A4-3275-B-1042S, A4-3275-W-1089S, A4-3275-X-1090S, A4-3275W1089S, A4-3275X1090S, A4-3780B28, A4-3780C29, A4-3780K11, A4-3780M13, A42-3275-A-599S, A42-3275-U-593S, A42-3275A599S, A42-3275U593S, A423275A599S, A423275U593S, A43-3275-A-599S, A43-3275-U-593S, A43-3275A599S, A43-3275U593S, A43275W1089S, A43275X1090S, A433275A599S, A433275U593S, A43780B28, A43780C29, A43780K11, A43780M13, A49-3275A599S, A49-3275U593S, A493275A599S, A493275U593S, A5-3275-N-716S, A51041, A53275N716S, A6-3275-A-599S, A60-3275A599S, A60-3275U593S, A603275A599S, A603275U593S, A63275A599S, A7-3275-N-768S, A7-3275-U-593S, A73275N768S, A73275U593S, A78-3275-A-1145, A78-3275-Z-1144, A8-3275-N-716S, ABPN42AS40010143, ABPN42AS40010212, ABPN42ASR801041, ACA-0888B700, ACA0888B700, ACCAS1141, ACF004205828, AS1001, AS1003/04, AS100304, AS1032, AS1034, AS1041, AS1119, AS1132, AS1134, AS1141, AS1146, AS1148, AS1150, AS1168, AS1173, ASA112, ASA122, ASH40010143, ASH40010144, ASH40010155, ASH40010212, ASM801041, ATIR801041, ATIR803195, B53275J634, B801041, BBH-RB-10143, BBH-RB-10144, BBH-RB-10212, BBH-RBR801041, BBHRB10143, BBHRB10144, BBHRB10212, BBHRBR801041, BE065170, BG40010144, BGCS56004, BGICS56004, BH065170, BH065700, BH65170, BNDK041877, BP065170, BP10143, BP10212, BSJ975628N, BW065170, BW065171, BW065176, BW101988, BW102538, BW102539, BW106958, BW106959, BW107273, BW107297, BW289654, BW289655, BW289746, BW289748, BW289749, BW65170, BWBW065170, BWS065170, BX975628N, BXK041870, BXK041877, CB21100, CB21102, CI21102, CI211A2, CI22103, CI221A3, CI41100, CI411A0, CI42106, CI421A6, CI71100, CI72106, CS52316, CS52321, CS52322, CS52345, CS52346, CS52349, CS52351, CS52354, CS52355, CS52362, CS52365, CS56004, CS56006, CS56032, CS56034, CS56041, CS56041M1D, CS56046, CS56048, CS56050, DLR801041, DLR801074, E-10780A, E-10781A, E-10786A, E-10788A, E-10892, E-11398, E-11402, E-11409, E-11410, E-11411, E-11412, E-11421, E-11422, E-11423, E-11424, E-11426, E-294K, E-6903, E-6903A, E-6904, E-6908, E-6909, E-6915, E-6918, E-6918A, E-6924, E-6924A, E-6924B, E-6940, E-6941, E-6942, E-6943, E-6949, E-6962, E-6992, E-6992A, E-6993, E-6993A, E10780, E10780A, E10781A, E10786A, E10788A, E10892, E111K, E11398, E11398A, E11402, E11409, E11410, E11411, E11412, E11421, E11422, E11423, E11424, E11426, E11922, E11925, E146K, E15051, E238K1, E2813656, E2815811, E294K, E443K, E6903, E6903A, E6904, E6908, E6909, E6915, E6918, E6918A, E6919A, E6924, E6924A, E6924B, E6926, E6940, E6941, E6942, E6943, E6962, E6992, E6992A, E6993, E6993A, E9HT2314AA, EA813656, EA815809, EC813656, EC815811, ECE6918A, ECE6924A, EIE6918, EIE6918A, EM50420, ET317166, ET815809, ET815811, ET815812, EU6918A, EUE10780, EUE111K, EUE146K, EUE238K1, EUE443K, EUE6914A, EUE6918, EUE6918A, EUE6919A, EUE6924, EUE6924A, EUE6924B, EUE6926, EUE6928, F8HT 2314 BA, F8HT2314BA, F8HZ2314BA, FC10212, FLT40010143, FLT40010212, FLTAS1132, FLTAS1141, FRL 42012261, FS-R801041, FS10143, FS10144, FS398, FSR801041, FU815809, FU815812, GHE6918A, GHE6919A, GHE6924B, GHE6928, GLBGTA-40010212, GLBGTA40010212, GNAS1041, GS1132, GT-56143, GT-56212, GT56143, GT56212, GTA-40010143, GTA-40010144, GTA-40010212, GTA40010143, GTA40010144, GTA40010212, GUA51041, GUAS1001, GUAS1003, GUAS1019, GUAS1032, GUAS1041, GUAS1132, GUAS1134, GUAS1141, GUN AS1132, GUN AS1141, GUN AS1168, GUN/ AS1168, GUNAS-1132, GUNAS-1141, GUNAS1132, GUNAS1141, GUNAS1150, GUNAS1168, GUNSA099 02, GUNSA09902, GUNSA102 03, GUNSA10203, H2063, HA-400-10143, HA-400-10144, HA-400-10155, HA-400-10212, HA-400-20212, HA-400-20215, HA40010143, HA40010144, HA40010155, HA40010212, HA40010306, HA40020212, HA40020215, HA40910070, HA40910111, HA40910146, HA40910211, HA40910245, HA40910279, HA40910288, HA40910418, HA40910443, HA40910492, HA40910505, HA40910579, HAE40010143, HAE40010144, HAE40010212, HAL-40010212, HAL/40010143, HAL/40010143M1D, HAL/40010144, HAL/40010212, HAL400-20212, HAL40010143, HAL40010144, HAL40010155, HAL40010212, HAL40010215, HAL40020212, HB40010005, HB40010071, HB40020212, HDV-10143, HDV-10144, HDV-10212, HDV-51132, HDV-51141, HDV-801041, HDV10143, HDV10144, HDX 40010143, HDX400-10143, HDX400-10144, HDX400-10212, HDX40010071, HDX40010143, HDX40010144, HDX40010155, HDX40010212, HDX40020212, HDX40020215, HE40010012, HE40010104, HE40010106, HE40010143, HE40010144, HE40010146, HE40010306, HE40910238, HRR801041, HSA-5042, HSA-5044, HSA5042, HSA5044, HX400-10143, HX400-10144, HX400-10155, HX400-10212, HX400-20212, HX40010071, HX40010143, HX40010144, HX40010155, HX40010212, HX40020212, HZ40010012, HZ40010144, HZ40010146, HZ40010306, HZ40910238, ICS56004, K041870, K041870BXW, K041877, K041877BXW, KEAS1001, KEAS1019, KEAS1032, KEAS1041, KH556510, KH600028, KHAS1001, KHAS1003, KHAS1019, KHAS1032, KHAS1041, KHAS1132, KHAS1141, KN44051, KN47011, KN52210, KN52211, KN52212, KN52213, KN52214, KN52230, KN52231, KN52232, KN52233, KN52234, KSA10143, KSA10144, KSA10212, M16WR1332, M16WR1333, M525QD49, M807002, M807013, M807016, M807021, M807022, M808013, M808021, MB21102, MB21182, MB21952, MB22103, MB22104, MB22183, MB22184, MB22953, MB40010071, MB40010144, MB40010212, MB41100, MB41180, MB42106, MB42186, MB71100, MB72106, MBCS56004, MBI40010071, MBI40010143, MBI40010144, MBI40010212, MBI40020212, MBI40020215, MBKN52211, MBR801041, MD400-10212, MD40010143, MD40010144, MD40010146, MD40010215, MD40010306, MDCS52321, MDCS56004, MDCS56006, MDKN52211, MERR803195, MI40010012, MI40010071, MI40010104, MI40010106, MI40010143, MI40010144, MI40010146, MI40010306, MI788340010144, MICS52321, MICS56004, MICS56006, MICS56032, MICS56041, MID40010071, MID40010143, MID40010144, MID40010155, MID40010212, MID40020212, MID40020215, MK21010S, MK21100S, MK21102S, MK21106S, MK22102S, MK22102SG, MK22103S, MK22106S, MK25QDA259P7, MK25QDA340, MK41010S, MK41100S, MK41100SJ, MK42106S, MK71100S, MK72106S, MSA40010212, MSAS1001, MSMD40010143, MSMDCS56006, MSZBE6928, N42AS, OTR OTR10212, OTR-10143, OTR-10144, OTR-51132, OTR-65170, OTR-801041, OTR10143, OTR10144, OTR10212, OTR65170, OTR801041, P0065170, P065170, P813656, P815809, PL-10143, PL-10144, PL-10155, PL-10212, PL-10215, PL-R801041, PL10143, PL10144, PL10155, PL10212, PLR801041, PPAS1041, PRO-SA56212, PROSA56143, PROSA56144, PROSA56212, R21097004, R2A163275H1152S, R2A223275N768S, R2R801041, R2R803195, R801040, R801041, R801041-RI, R801041RI, R801043, R801045, R801047, R801050, R801069, R801071, R801074, R801075, R801086, R801087, R802170, R802178, R802290, R802291, R802292, R802293, R802300, R802301, R802302, R802303, R802310, R802311, R802312, R802313, R802314, R802315, R802316, R802317, R802318, R802319, R802320, R802321, R802330, R802331, R802332, R802333, R802417, R802480, R802481, R802482, R802483, R802486, R802487, R802488, R802489, R802490, R802491, R802492, R802493, R802644, R802645, R802666, R802667, R802678, R802686, R802687, R803022, R803023, R803024, R803025, R803026, R803027, R803028, R803029, R803032, R803033, R803054, R803055, R803056, R803057, R803103, R803111, R803113, R803195-RI, R803195RI, R806002, R806013, R806015, R806016, R806016A, R806021, R806022, R806024, RB-10143, RB-10144, RB-10155, RB-10212, RB-10215, RB10143, RB10144, RB10155, RB10212, RBA13275N768S, RBA163275H1152S, RBA223275N768S, RBA23222F1072, RBA233299D3046, RBA233299E3047, RBA243722P406, RBA263222F1072, RBA263275N768S, RBR801041, RBR801074, RBR802332, RBR802333, RBR803028, RBR803029, RBR803103, RBR803195, RBTDAR801041, RDR801041, RDR801074, REB801041, RI737238548423, RIA13275N768S, RIA223275N768S, ROA13275N768S, ROR801041, ROR801074, ROR803195, ROR806016, RSR801041, RSR801074, RSR803195, RW-R801041, RWR801041, RWR803195, RWTDAR801041, S-23556, S-23852, S-23853, S-23855, S-23856, S-B888, S065170, S213992, S23556, S23852, S23853, S23855, SA00102, SA00201, SA00502, SA00805, SA00901, SA00907, SA01101, SA01202, SA02001, SA02104, SA02201, SA02206, SA02401, SA02502, SA03602, SA04202, SA04803, SA05401, SA05502, SA05505, SA05701, SA05802, SA06402, SA06502, SA07003, SA07103, SA07203, SA07213, SA07802, SA08103, SA08403, SA08602, SA08903, SA08913, SA09102, SA09203, SA09213, SA09902, SA10103, SA10144, SA10203, SA10212, SA10213, SA10215, SA1041, SA10503, SA10602, SA10803, SA11002, SA11103, SA11202, SA11303, SA1132, SA1132A, SA1136, SA11602, SA2170, SA2179, SA56143, SA56144, SA56212, SAP-R801041, SAP10143, SAP10212, SAPR801041, SAS1019, SAS1032, SAS1041, SAS1049, SAS1055, SAS1057, SAS1058, SAS1062, SAS1132, SAS1141, SAS1146, SAS1150, SAS1162, SAS1166, SAS1168, SB888, SBRMK41100S, SBRMK42106S, SCSA1041, SIRSA10212, STEMK41100S, STEMK42106S, STNMK42106S, TDAM807022, TDAR801041, TDAR803195, TWDR801041, TWDR803195, WA10143, WA10144, WA10212, WAAS1132, WAR801041, ZBE6928, ZBRAS1132, ZBRAS1134, ZBRAS1141, ZBRAS1146, ZBRAS1150, ZBRAS1168, ZCPMK21102S, ZCPMK41100S, ZSA40010071, ZSA40010143, ZSA40010144, ZSA40010155, ZSA40010212, ZY40010012, ZY40010143, ZY40010144, ZY40010146, ZY40010306, ZY40910238, ZZ40010071, ZZ40010143, ZZ40010144, ZZ40010155, ZZ40010212, ZZ40010215, ZZ40020212, ZZ40020215, ZZ40910649
