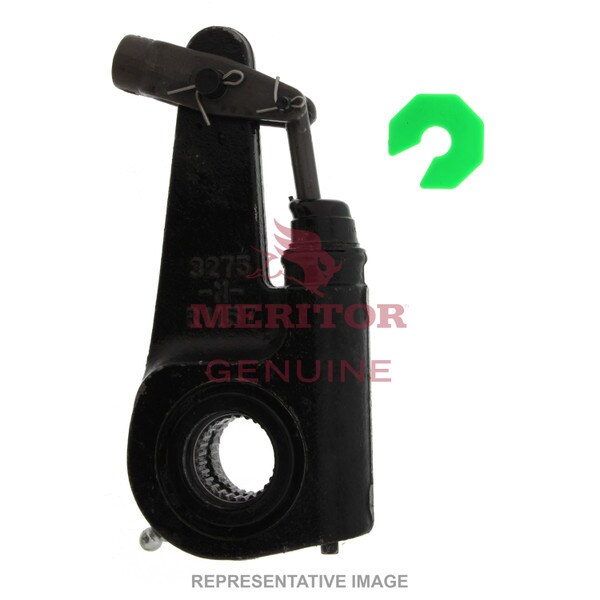

Meritor Genuine AY-ASA-1.50-28 - R802513

Product Description

AIR BRAKE - ASA - MERITOR

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-ASA-1.50-28 - R802513 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 6.50 in.
• Brake Size: 20.25 in. x 7.00 in.
• Chamber Sizes: 36
• Clevis Thread Diameter: 0.625 in.
• Clevis Threads per inch: 18
• Clevis Type: Straight
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Green piston. Drum brake.
• OEM: Meritor
• Production Part Number: A8-3275-E-1149
• Related Clevis Kit: R810019
• Related Unclevised Number: R803059
• Sensing Type: Stroke
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Type 2

Includes

Meritor Genuine AY-ASA-1.50-28 - R802513

Warranty

Warranty information may be based on the product and application. Please contact us for additional information.

Cross Reference

00-20105, 00-20125, 03-05459, 05-563, 05563, 102117/18, 10211718, 10345905, 10345908, 10345911, 10480801, 1142HDA, 1332831, 1352831, 1362831, 20105, 20125, 20434458, 289314/15, 28931415, 289654/55, 28965455, 289748/49, 28974849, 2R802513, 305459, 3398-AS1042, 3398-AS1142, 3398AS1042, 3398AS1142, 3520576, 3523736, 3918361, 3949413, 400-10011, 400-10101, 400-10106, 400-10146, 400-10215, 40010011, 40010011M1D, 40010101, 40010106, 40010146, 40010203, 40010215, 40010215M1D, 409-10085, 409-10091, 409-10094, 409-10126, 409-10174, 409-10197, 409-10215, 409-10222, 409-10228, 409-10229, 409-10232, 409-10233, 409-10236, 409-10237, 409-10240, 409-10312, 409-10394, 409-10395, 409-10408, 409-10416, 409-10444, 409-10475, 409-10506, 409-10530, 409-10532, 409-10551, 409-10553, 409-10580, 409-10679, 409-10682, 409-416, 40910085, 40910091, 40910094, 40910126, 40910174, 40910197, 40910215, 40910222, 40910228, 40910229, 40910232, 40910233, 40910236, 40910237, 40910240, 40910312, 40910394, 40910395, 40910408, 40910416, 40910444, 40910475, 40910506, 40910530, 40910532, 40910551, 40910553, 40910580, 40910679, 40910682, 409416, 509-10174, 50910174, 5396-40010011, 539640010011, 556528, 6814201949, 76401-3510, 76401-3806, 764013510, 764013806, 767653142968, 7883-40010011, 788340010011, 805812, 808115, 808132, 808134, 808141, 808151, 808169, 808171, 808173, 808178, 808254, 808691, 808692, 810047, 810600, 810602, 810731, 810843, 811120, 811121, 811336, 812351, 813652, 813655, 815788, 815793, 815807, 815812, 8235-R802513, 8235R802513, A1-3275A1119, A1-3275Z1118S, A12-3275C601S, A12-3275W595S, A123275C601S, A123275W595S, A13275A1119, A13275A599, A13275A599S, A13275C601, A13275C601S, A13275U593, A13275U593S, A13275W595, A13275W595S, A13275Z1118S, A15-3275C601S, A15-3275W595S, A153275C601S, A153275W595S, A2-3275A1119S, A2-3275C601S, A2-3275P718S, A2-3275W595S, A2-3275W59S, A23275A1119S, A23275A599, A23275A599S, A23275C601, A23275C601S, A23275P718S, A23275U593, A23275U593S, A23275W595, A23275W595S, A23275W59S, A2375W595, A293275Z1144S, A33275E1149S, A34-3275M1079, A343275M1079, A35-3275M1079, A353275M1079, A4-3275P718S, A43275P718S, A463275Z1144S, A7-3275-E-1149S, A73275E1149S, APA0994-2, APA09942, AS1003, AS1040, AS1042, AS1142, CI22102, CI221A2, CS52320, CS52356, CS56001, CS56042, D00-20011, D0020011, E-091K, E-11403, E-11873, E-11902, E-168K, E-168K1, E-215K, E-229K, E-236K, E-237K, E-240K, E-6919, E-6919A, E-6920, E-6927, E-6927A, E-6927B, E-6940, E-6994, E-6994A, E091K, E11403, E11873, E11902, E168K, E168K1, E215K, E229K, E236K, E237K, E240K, E6919, E6919A, E6920, E6927, E6927A, E6927B, E6940, E6994, E6994A, GUAS1026, GUAS1042, GUAS1142, GUN AS1042, GUN AS1142, GUNAS1042, GUNAS1142, HAL40010011, HAL40010215, HDX40010011, KN44061, KN52240, KN52241, KN52242, KN52243, KN52244, MB22102, MB22182, MB42101, MID40010011, MK22102S, MK42101S, MSA40010215, PPAS1026, R801045, R801076, R801081, R802333, R802444, R802445, R802500, R802501, R802502, R802503, R802504, R802505, R802510, R802511, R802512, R802513, R803059, R806021, R806026, RBR802513, ROR802513, SA00203, SA00204, SA00503, SA00902, SA00904, SA01203, SA02204, SA02503, SA05503, SA05803, SA07004, SA07204, SA08104, SA08904, SA09204, SA10101, SA10204, SA10215, SA10804, SAS1004, SAS1026, SAS1042, SAS1142, TDAR802513, TWDR802513, ZBRAS1040, ZBRAS1042, ZBRAS1142, ZZ40010011, ZZ40010215
