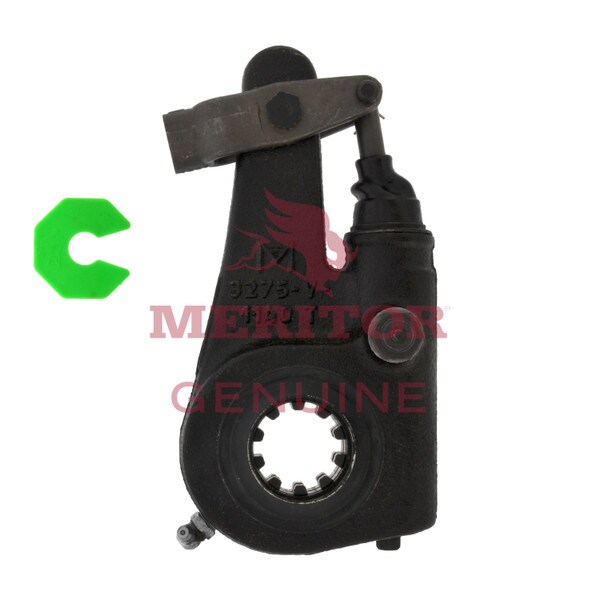

Meritor Genuine AY-ASA-1.50-10 - R802332

Product Description

AIR BRAKE - ASA - MERITOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.50 in.
• Chamber Sizes: 36
• Clevis Thread Diameter: 0.625 in.
• Clevis Threads per inch: 18
• Clevis Type: Straight
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Green piston. Drum brake.
• OEM: Meritor
• Production Part Number: A78-3275-Z-1144
• Related Clevis Kit: R810019
• Related Unclevised Number: R803028
• Sensing Type: Stroke
• Slack Spline Count: 10
• Slack Spline Diameter: 1.50 in.
• Type: Type 1

Includes

AY-ASA-1.50-10

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

03-06008, 065170, 065700, 10480701, 106195, 106205, 107103, 107106, 107176, 107262, 107273, 107297, 107995, 107999, 108647, 1132HDA, 1132TP, 131026, 1361031, 138.1011, 25QD51P2, 289654, 289655, 289746, 289747, 289748, 289749, 2R802332, 306008, 3398-AS1132, 3398AS1132, 40010071, 40010143, 40010155, 40020236, 52211, 52510, 52512, 556510, 65170, 65170P, 65700, 6814205738, 76401-0134, 76401-3455, 76401-3498, 76401-3505, 76401-3805, 764010134, 764013455, 764013498, 764013505, 764013805, 77065700, 801041, 801353, 801358, 8060851, 8084129, 813246, 813247, 815790, 815801, 85100210, 974294, A1-3275A599S, A1-3275N768S, A1-3275U593S, A1-3275V1139S, A10-3275A599S, A10-3275U593S, A103275A599S, A103275U593S, A11-3275U593S, A113275U593S, A13275A599S, A13275N768S, A13275U593S, A13275V1139S, A15-3275A599S, A153275A599S, A16-3275U593S, A163275H1152S, A163275U593S, A2-3275Q1083, A2-3275R1084, A22-3275N768S, A223275N768S, A23275Q1083, A23275R1084, A26-3275N768S, A263275N768S, A3-3275W1089S, A3-3275X1090S, A33275W1089S, A33275X1090S, A4-3275W1089S, A4-3275X1090S, A4-3780B28, A4-3780C29, A4-3780K11, A4-3780M13, A42-3275A599S, A42-3275U593S, A423275A599S, A423275U593S, A43-3275A599S, A43-3275U593S, A43275W1089S, A43275X1090S, A433275A599S, A433275U593S, A43780B28, A43780C29, A43780K11, A43780M13, A49-3275A599S, A49-3275U593S, A493275A599S, A493275U593S, A6-3275-A-599S, A60-3275A599S, A60-3275U593S, A603275A599S, A603275U593S, A63275A599S, A7-3275-N-768S, A7-3275-U-593S, A73275N768S, A73275U593S, AS1032, AS1132, AS1168, BGCS56004, BGICS56004, BH065700, CI21102, CI211A2, CI41100, CI411A0, CI71100, CS52316, CS52321, CS52346, CS52354, CS52362, CS56006, CS56032, CS56041, E-10780A, E-10786A, E-10892, E-11398, E-11409, E-11410, E-11411, E-11412, E-11426, E-294K, E-6903, E-6903A, E-6908, E-6909, E-6915, E-6940, E-6941, E-6992, E-6992A, E10780A, E10786A, E10892, E11398, E11398A, E11409, E11410, E11411, E11412, E11426, E294K, E6903, E6903A, E6908, E6909, E6915, E6940, E6941, E6992, E6992A, GS1132, GUAS1003, GUAS1019, GUAS1032, GUAS1132, GUAS1134, GUAS1141, GUN AS1132, GUNAS1132, GUNSA099 02, GUNSA09902, HDV-51132, ICS56004, K041870, KEAS1019, KEAS1032, KH556510, KHAS1003, KHAS1019, KHAS1032, KHAS1132, KN47011, KN52211, KN52230, KN52231, KN52232, KN52233, KN52234, M16WR1333, MB21102, MB21182, MB21952, MB41100, MB41180, MB71100, MBCS56004, MBKN52211, MDCS52321, MDCS56004, MDCS56006, MDKN52211, MICS52321, MICS56004, MICS56006, MICS56032, MICS56041, MK21010S, MK21100S, MK21102S, MK41100S, MSMDCS56006, OTR-51132, R2R803195, R801041, R801043, R801050, R802290, R802291, R802292, R802293, R802300, R802301, R802302, R802303, R802310, R802311, R802312, R802313, R802314, R802315, R802316, R802317, R802318, R802319, R802320, R802321, R802330, R802331, R802332, R802333, R802666, R802667, R803028, R803029, R803103, R803195, RBA13275N768S, RBA163275H1152S, RBA223275N768S, RBR801041, RBR802332, RBR802333, RBR803028, RBR803029, RBR803103, RIA13275N768S, RIA223275N768S, ROA13275N768S, RSR803195, SA02104, SA02401, SA06402, SA09902, SA11202, SA1132, SA2170, SAS1049, SAS1132, SB888

Specifications
