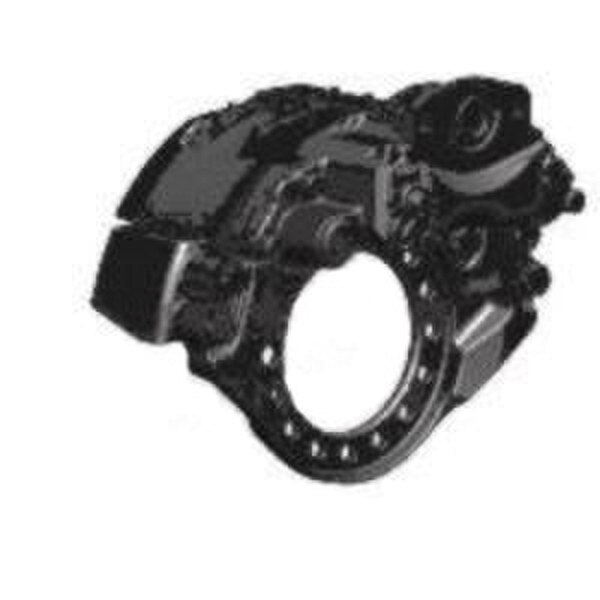

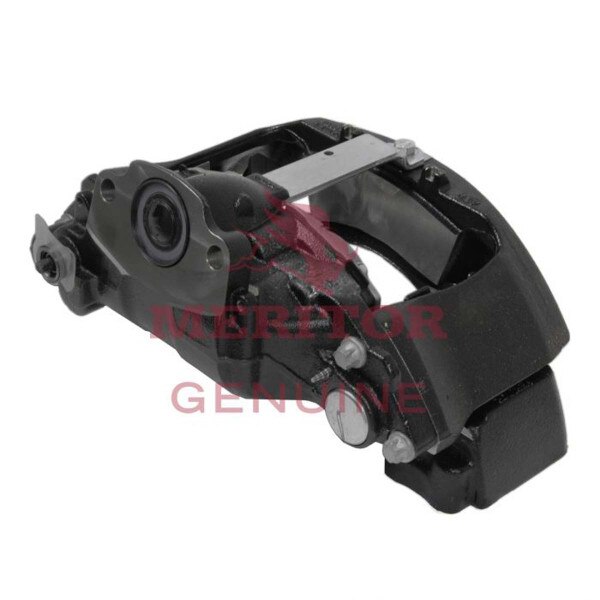

Meritor Genuine SVC CALIPER-SHO - EX225H201XX000
Details
AIR DISC BRAKE - CALIPER
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
04-01-1114, 04011114, 8235-EX225H201XX000, 8235EX225H201XX000, A225H201, ABPN42AA225H201, AMEX225H201XX000, TDAEX225H201XX000
Specifications
| Brand | Meritor Genuine |
| MPN | EX225H201XX000 |
| UPC | 680502366998 |
| Width | 19.5 in. |
| VMRS | 013-013-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 12 in. |
| Benefits | SVC CALIPER-SHO |
Features
- A-B Distance: 4 1/8 in.
- Application: Service Caliper Less Pads/Less Brake Chamber
- Axial or Radial Mount: Axial
- Brake Chamber Angle: 0 degrees
- Carrier Mounting Holes: 6
- Chamber Mount: Axial 0 degrees
- Chamber Position: Axial
- FMSI: 1311
- Left or Right: Right
- Model: EX225H
- Mounting Hole Size: M20 X 1.5
- New or Reman: New
- Notes: Service Caliper. Recommend service chamber also be replaced.
- Numbers Of Pistons: 2
- OE Mfg.: Meritor
- Pad Carrier: Axial
- Pad Length: 9.82 in.
- Related Disc Pad Number: KIT2252H2DD; KIT2252H2CG; MMD1311AF
- Related Hardware Kit: KIT225281
Includes
SVC CALIPER-SHO
Warranty
Warranty depends on application and product type. Contact us to learn more.
Returns, Warranty & Cores
For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
