Match Made QR-1 Style Valve - ACA-02294700

Product Description

Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

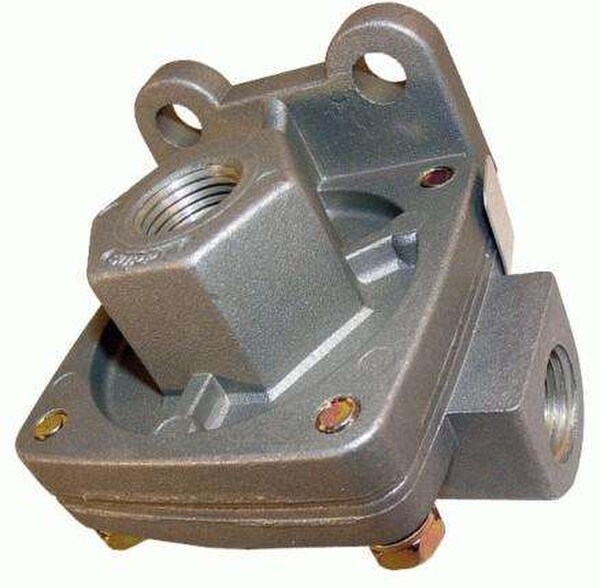

This Match Made QR-1 style (Quick Release) valve serves as replacement for Bendix QR-1 series. Quick release valves were developed to quicken the release of air from the brake chambers to let the brakes release faster. As the brake pedal is depressed and air moves toward the brake chamber, it runs through the quick release valve which is mounted nearby the chamber. The air pressure is held until the pedal is released. When the supply pressure at the quick release valve drops, the air in the brake chamber moves out the bottom of the quick release valve rather than having to move all the way back to the relay valve's exhaust port. This Match Made quick release valve replacement features 3/8 inch NPT Supply - 3/8 and NPT Delivery.

This Match Made truck part comes with a one year warranty.

Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!

Features

• 3/8 inch NPT Supply
• 3/8 inch NPT Delivery

Includes

QR-1 style (Quick Release) valve

Warranty

1 Year

Cross Reference

0R229859BXR, 11602155, 11602155-1, 1676706C, 20-QE-19365, 20-QE-1955, 224417, 229859, 229859NP, 229859X, 274997, 288251, 288251BXW, 288251N, 3918734, 51103, 745-229859N, 745-288251, 745-288251N, 745229859, 745229859N, 745288251, 745288251N, 9246 229859, 9646 229859, 973-500-003-0, A12-16622-000, A12-16622-001, ACA02294700, BAN288251N, BBH-288251CX, BBH288251CX, BEN288251N, BND288251N, BW 065212, BW 229859, BW288251N, BX288251N, G1018845, KN32005 DOHZ 2A095 A, NS229859, OTC 17TN28, R955229859N, TWDBEN288251N, VP 802743, WT 641852A, WT Y641852A, WWS 229859
