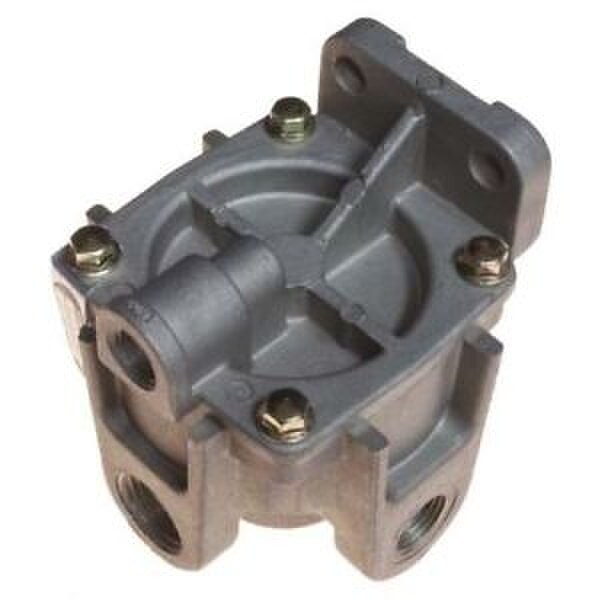

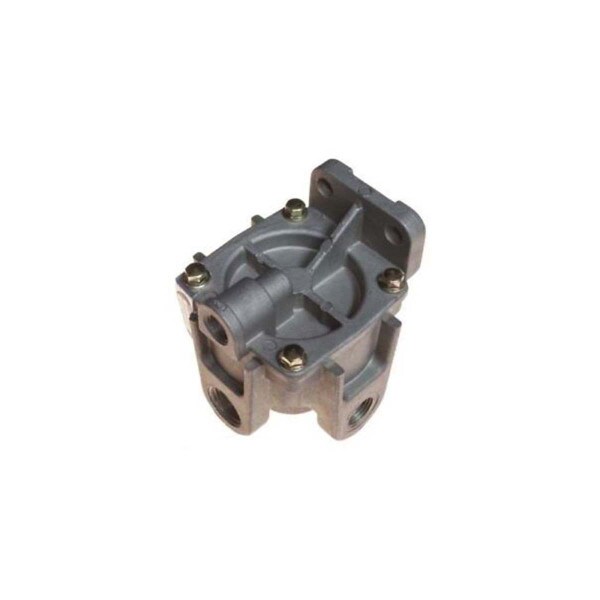

Match Made RG-2 Style Relay Valve - ACA-05806700

Product Description

Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

This Match Made RG-2 style relay valve serves as replacement for RG-2 series. This Match Made relay valve is used in the air brake systems to control the brakes at the rear of a heavy truck or semi-trailer. Perfect for increasing or decreasing the pressure of compressed air and shorten the response and pressure build-up times in air braking systems. This Match Made RG-2 replacement valve contains (1) 1/4 inch NPT control port; (2) 3/8 inch reservoir ports; (2) 3/8 inch NPT delivery ports with .35 inch mounting holes spaced 1.5 inches apart.

This Match Made truck part comes with a one year warranty.

Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!

Features

• (1) 1/4 inch NPT control port
• (2) 3/8 inch reservoir ports
• (2) 3/8 inch NPT delivery ports
• .35 inch mounting holes spaced 1.5 inches apart

Includes

RG-2 style relay valve

Warranty

1 Year

Cross Reference

670-S6085,KN28500,KN-28500,S6085,S-6085
