Match Made PP-1 Style Control Valve - ACA-05765700
Details
Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

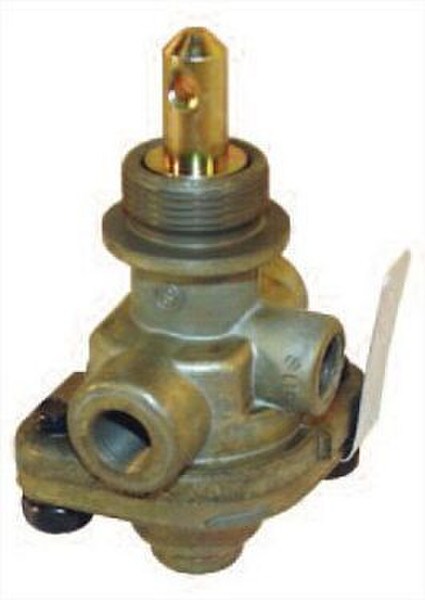

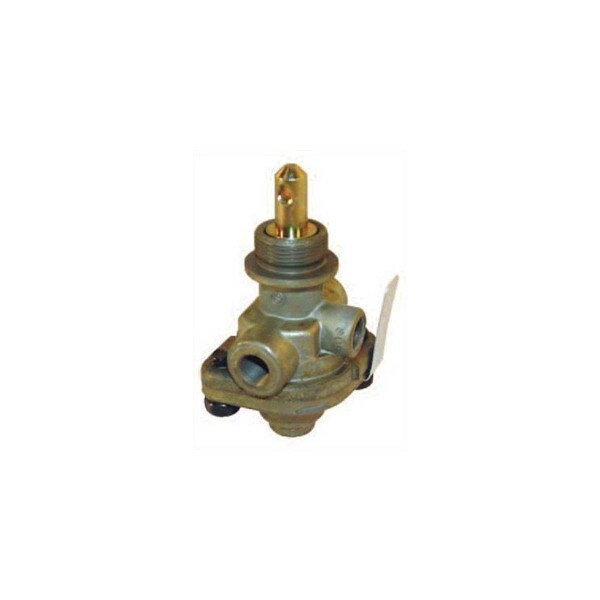

This Match Made PP-1 (push-pull) style control valve serves as replacement for PP-1 series. Push-Pull control valves are most frequent mounted on the vehicle dash board and are used for a variety of control applications. Commonly used to control parking and emergency breaks. The PP-1 is pressure sensitive, normally closed, on/off control valves which automatically return to the exhaust (button out) position when supply pressure is under the required minimum. They may be manually operated to either position when pressure is above the required minimum. Pressure settings and button arrangement and lettering may vary, depending on application. This Push-pull valve from Match Made contains (2) 1/8 inch delivery ports; (1) 1/8 inch supply port and (1) 1/8 inch exhaust port plus has a .38 inch diameter neck.
This Match Made truck part comes with a one year warranty.
Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!
Cross References
034013, 10-276567, 101279, 101279X, 101395, 101478, 101478X, 101850, 101850X, 101993, 10276567, 107434, 10810486, 109123, 1092903, 1113099, 12403X, 1284972, 1321058, 1360242, 1360249, 1361679, 13AV4472, 14028, 15149895, 15149896, 15572831, 15633206, 15739044, 1576016, 1681044C91, 170.276567, 170.2876, 170229635, 170276567, 1702876, 170287600, 17376004, 1802597, 20001P, 2000913, 20021P, 20030X, 20031, 20031P, 2014412, 2090371, 20Q278P5, 20QE1284, 20QE278P1, 20QE278P10, 20QE278P2, 20QE278P3, 20QE278P4, 20QE278P5, 20QE278P7, 20QE278P8, 20QE3113, 20QE3113P2, 20QE3179, 212655014, 217005018, 229635, 229635B1, 229635N, 229635P, 229635R, 229635RX, 229635S, 229635X, 2358375, 2394656, 2477028, 25117989, 2530004859416, 255004, 255005, 25BG0460, 27116875, 275170, 275175, 275175N, 275175NP, 275176, 275176N, 275176X, 275782, 275791, 275796, 276264, 276562, 276566, 276566B1, 276566N, 276566NP, 276566P, 276566RX, 276566S, 276566X, 276566XC5, 276567, 276567B1, 276567BXW, 276567N, 276567NP, 276567P, 276567R, 276567RX, 276567X, 276567XC1, 276567XR, 276568, 276569, 276570, 276571, 276572, 276574, 276575, 276576, 276577, 276578, 276580, 276581, 276582, 276781, 276804, 277015, 277072, 277090, 277282, 277556, 277557, 277638, 277717, 277998, 277999, 279144, 279269, 279429, 279469, 279478, 279761, 279786, 280311, 280710, 282510, 283828, 284171, 284171X, 28432400, 284726, 284726BXW, 284726N, 284728, 284785, 28601P, 287054, 287054B1, 287054BXW, 287054N, 287054X, 287257, 287325, 287325N, 287334, 287379, 287417, 287515, 287600, 287600BXW, 287600N, 287600R, 287600RX, 287600X, 287620, 288005, 288577, 288773, 289034, 30021, 3005453, 3060509, 3060636, 3061136, 3081489, 311698, 3116981, 32037, 334152, 34013, 34014, 3500951, 3507194, 3507376, 3508892, 3519024, 35920, 380509C92, 385975C91, 3915332, 3945116, 401082, 401135, 40969, 416.00.3804.778, 416003804778, 443640, 4820005222074, 4820031P, 48276566P, 48276567P, 5001489, 5002579, 5010048, 5011853, 5012701, 53101201, 5340259028, 538035, 5396-KN20001, 5396-KN20010, 5396KN20001, 5396KN20010, 5396KN20021, 550069, 619502C92, 640136, 655530, 658336, 70311698, 71230547, 745-229635N, 745-276566N, 745-276567N, 745-284726N, 745-287054N, 745-287325N, 745-287600N, 745-OR276566X, 745229635, 745229635N, 745276566N, 745276567N, 745284726, 745284726N, 745287054, 745287054N, 745287325N, 745287600N, 76049094, 76566, 76567, 767653009889, 77024-11, 770241, 770243, 770246, 78210-0001, 78210-0005, 78210-0009, 782100001, 782100005, 782100009, 79014056, 800952, 801175616, 801175617, 8235RKN20021, 825638, 85151442, 87257, 87325, 87379, 87515, 90000606, 90007281, 90016369, 900219A, 92100001034, 921060, 9346490160, 97723481, 98005606, 99410118, 99410120, 99410538, 99410818, 99600-2, 996002, 9990000094, 9M276566X, A68365, ACA-0265A700, ACA-06765700, ACA-08988700, ACA0265A700, ACA05765700, ACA06765700, ACA08988700, AD83580, AE38210, AE770241, AE770243, AE770246, AKA5622, APL-100242, APL-100830, AV20021, AV20031, AV229635, AV276566, AV276567, AYD20791, BAN229635, BAN229635N, BAN276566N, BAN276567, BAN284726N, BAN287054N, BAN287325N, BAN287600N, BAR287054, BBH-229635CX, BBH-RB276566, BBH229635CX, BBHRB276566, BE275175, BE275176, BE276566, BE276566X, BE276567, BE276567X, BE277717, BE279761, BE284726, BE287379, BE287600, BEA1PG, BEBXPP1, BEN229635N, BEN275176, BEN276566, BEN276566N, BEN284726, BEN284726N, BEN287054N, BEN287325N, BEN287600, BEN287600N, BEPP1, BFPA3592, BGIKN20021, BGIKN20031, BGKN20021, BGKN20031, BH229635, BH275175, BH275176, BH276566X, BH276567, BH276567X, BH287600, BND276567N, BP275175, BP275176, BP276566, BP284726, BP287325, BV275175, BV276566S, BW 276567N, BW 287325N, BW229635N, BW275170, BW275175, BW275176, BW276566, BW276566N, BW276566X, BW276567, BW276567N, BW276567X, BW279786, BW283828, BW284726, BW284726N, BW287054N, BW287325, BW287325N, BW287417, BW287600, BW287600N, BW287600X, BWBW275176, BWBW276566, BWBW284726
Specifications
| Port Size | 13093 |
| Brand | Match Made |
| MPN | ACA-05765700 |
| Width | 4 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 4 in. |
| Benefits | This Match Made PP-1 (push-pull) style control valve serves as replacement for PP-1 series. Push-Pull control valves are most frequent mounted on the vehicle dash board and are used for a variety of control applications. Commonly used to control parking and emergency breaks. The PP-1 is pressure sensitive, normally closed, on/off control valves which automatically return to the exhaust (button out) position when supply pressure is under the required minimum. They may be manually operated to either position when pressure is above the required minimum. Pressure settings and button arrangement and lettering may vary, depending on application. This Push-pull valve from Match Made contains (2) 1/8 inch delivery ports; (1) 1/8 inch supply port and (1) 1/8 inch exhaust port plus has a .38 inch diameter neck. |
Features
- (2) 1/8 inch delivery ports
- (1) 1/8 inch supply port
- (1) 1/8 inch exhaust port
- .38 inch diameter neck
Includes
PP-1 (push-pull) style control valve
Warranty
1 Year
