Match Made 1002I Bi Metal King Pin - APL-100767

Product Description

Drag links, idler arms and tie rods work in harmony to help the vehicle safely turn in all directions. Routine maintenance work on your truck's power steering system is critical to having a vehicle easily manuever when needed. The signs of a bad power steering system include: a stiff wheel, squealing noises and sometimes, the steering wheel will be slow to respond. If this is the case in your vehicle, you need replacements quickly.

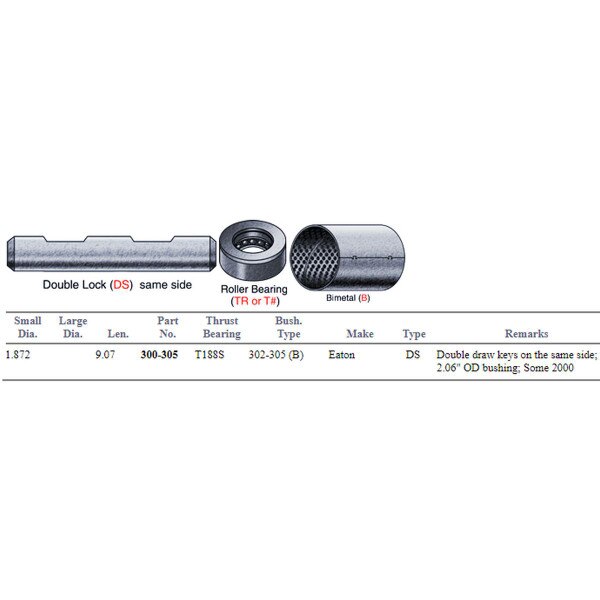

This king pin set is designed to fit Axle Model: 1002I, 1002W, 1202I, 1202W, 1322I, 1322W, 1462I, 1462W with Bi-Metal Bushing. It contains a size measurement of 1.8725 inches x 9.065 inches. Thrust bearing is T188S and its bushing type is 302-305. It is a Type: DS with double draw keys on the same side. Lastly, it has a 2.06 inches measurement on the outer diameter of the bushing.

This power steering system part comes with a 1 year/100,000 mile warranty.

Match Made is a leading aftermarket truck parts company with a full line of quality OEM parts. When in need of reliable undercarriage parts for your truck at an affordable price, look no further than Match Made!

Features

• Designed to fit Axle Model: 1002I, 1002W, 1202I, 1202W, 1322I, 1322W, 1462I, 1462W with Bi-Metal Bushing
• Size measurement of 1.8725 inches x 9.065 inches
• Thrust bearing is T188S
• Bushing type is 302-305
• Type: DS with double draw keys on the same side
• 2.06 inches measurement on the outer diameter of the bushing

Includes

One king pin set

Warranty

One-year/100,000 miles

Cross Reference

328347, 300-305

Specifications
