Match Made D-2 Piston Type Govenor - ACF-06016701
Details
Product Description
Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

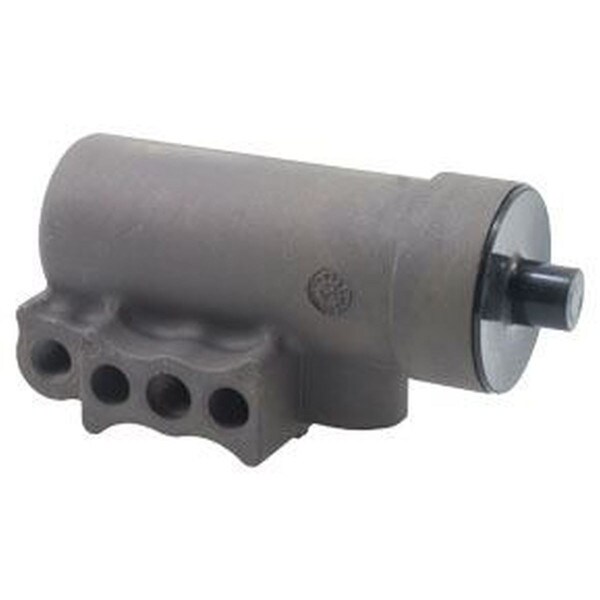

This Match Made D-2 Piston type valve governor assembly controls air pressure in the air supply system between a pre-determined maximum and minimum pressure. This adjustable governor from Match Made operates in conjunction with the compressor unloading mechanism and can be direct or or remote mount. It offers 1/8-27 inch NPT ports with .336 diameter mounting holes. Its cut-in pressure is 105 PSI and cut-out pressure is 130 PSI.
This Match Made truck part comes with a one year warranty.
Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!
Features
- Can be direct or or remote mount
- 1/8-27 inch NPT ports
- .336 diameter mounting holes
- Cut-in pressure is 105 PSI
- Cut-out pressure is 130 PSI
Includes
Air brake valve governor assembly
Warranty
1 Year
Cross Reference
275491, KN18530
Specifications
| Brand | Match Made |
| Supersedes | S-6106 |
| MPN | ACF-06016701 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This Match Made Air brake valve governor assembly controls air pressure in the air supply system between a pre-determined maximum and minimum pressure. This adjustable governor from Match Made operates in conjunction with the compressor unloading mechanism and can be direct or or remote mount. It offers 1/8-27 inch NPT ports with .336 diameter mounting holes. Its cut-in pressure is 105 PSI and cut-out pressure is 130 PSI. |
