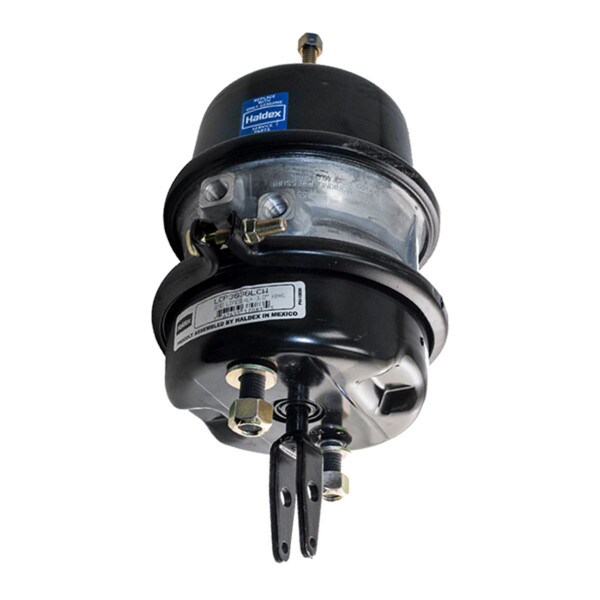

Haldex LifeSeal+ Combination Spring Brake Assembly Size 30/30 - LCP3030LCW

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Haldex LifeSeal+ Series Spring Brake Actuator is the only truly sealed double-diaphragm spring brake on the market. It's road tested for durability that outlasts regular spring brakes. This specific actuator has size T30/30 brake chambers with a welded clevis attached to the pushrod. Its stroke size comes in at 3 inches and it's classified as a long stroke brake chamber.

This product comes with a eight year, unlimited mile warranty for standard duty and a 4 year warranty for severe duty applications.

Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.

Features

• LifeSeal+ Series Spring Brake Actuator
• The only truly sealed double-diaphragm spring brake on the market
• Road tested for durability that outlasts regular spring brakes
• Size T30/30 Brake Chamber
• Long Stroke
• 3 in. Stroke Size
• Welded Clevis
• 8 Year, Unlimited Mile Warranty For Standard Duty, 4 Year for Severe Duty Applications

Includes

One (1) Combination Spring Brake Assembly

Warranty

Eight (8) Year, Unlimited Mile Warranty For Standard Duty, 4 Year for Severe Duty Applications

Cross Reference

1373030050, 1373030051, 179SB3030SLW22, 1824ADSB, 1824HTND2-3628, 1824HTND23628, 1824TLD2, 3030TNW3-2273, 3230951, 3419-TR1724LTH, 3512207, 3520967, 3522890, 3523220, 5017127, 5017128, 5017129, 5017130, 5017661, 5017662, 5020487, 5020488, 5020489, 5396-GC1824D, 5396-GC3030LCW, 5396-LCP3030LCW, 5396GC1824D, 5396GC3030LCW, 5396LCP3030LCW, 5554-TRB1824DT051, 5554TRB1824DT051, 745-K065544, 745K065544, 767653330990, 802477, 802478, 802479, 802480, 802582, 802583, 803154, 803156, 803157, 85146655, ABPN42AW3030CD, BTS3030LSWC, BWK065544, BXK065544, BXNT3030ELSWC, GC1824D, GC3030LCW, HALGC3030LCW, HD12964C, HDX 1373030050, HDX 1373030051, HDX/GC3030LCW, HDX1373030050, HDX1373030051, HDXGC1824D, HDXGC3030LCW, HDXLCP3030LCW, IN-1373030051, IN1373030051, K026127, K026128, K026129, K026336, K026337, K026338, K026451, K026453, K043290, K043291, K043292, K043293, K043294, K043295, K043296, K043297, K043298, K043299, K043300, K043301, K043302, K043303, K043304, K043305, K043306, K043307, K043308, K043309, K043310, K043311, K043312, K043324, K043325, K043329, K043329/K026451, K052174, K052175, K059884, K059885, K059912, K059913, K065156, K065541, K065544, K066986, K066987, K066988, K066989, K099742, K128503, K128504, K132352, K132352BXW, MGMTRB1824DT051, MIDGC1824D, MIDGC3030LCW, MIDLCP3030LCW, NT3030ELS-WC, NT3030ELSWC, OTR1824AD, OTR3030LSWC-2.25, OTR3030LSWC-2.26, OTR3030LSWC-2.27, OTR3030LSWC225, OTR3030LSWC226, PL1824.D, PL1824D, PL3030LSWCR, PLBTS3030LSWC-2.25, PLBTS3030LSWC225, S-25874, S1373030050, SAP-AD1824, SAPAD1824, SB3030LSW, TRB1824DT051, TRB1824DT052, W3030CD, WA12964, ZAJTRB1824DT051, ZZGC3030LCW, ZZLCP3030LCW
