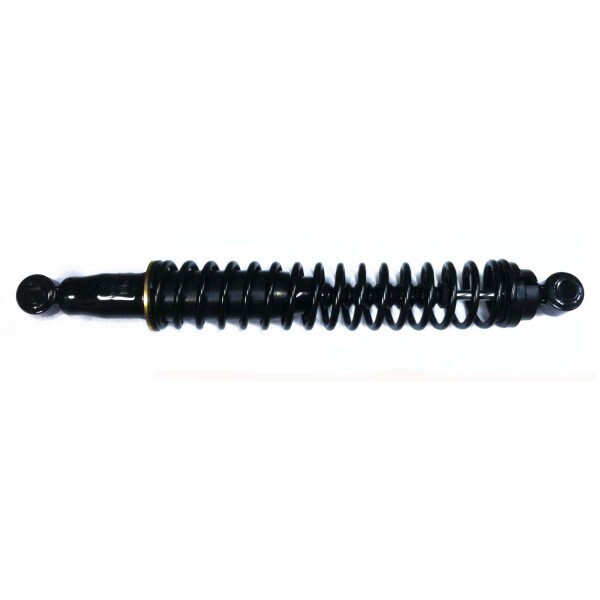

Gabriel Special Applications Shock Absorber - 646177

Product Description

Shock absorbers are a vital piece of any truck's suspension. They quite literally keep you grounded as a driver. Bad shocks not only lead to a bumpy ride, but can increase a truck's stopping distance as well as it's turning accuracy. Don't settle for low quality shocks and get a fresh set that fits your trucks specifications.

This Gabriel Heavy Duty Shock Absorber is built for special applications to deliver maximum control, comfort and durability in high intensity environments. It's also built with a coil-over shock for self-centering suspensions. This specific shock absorber is 14.1 in. fully collapsed and 22.45 in. fully extended. The stroke size on this shock is 8.35 in. and the bore size is 1.1875 in. For Challenge, Challenge Cook, Kenworth, Link/High-Steer, SAF Holland, Spring Valley and Westport Axle Corp vehicle and axle applications.

This particular product comes with a 1 year, 100,000 mile warranty.

Gabriel invented the original auotomotive shock absorber in 1907 and haven't taken their foot off the gas since. Covering more than 96% of North American vehicle, Gabriel is where you go when you want to purchase innovative shock solutions from a brand you trust.

Features

• Special Application Heavy-Duty Cab Shock Absorber
• 14.1 in. to 22.45 in. Collapsed to Extended Length at Bumper Contact
• Delivers maximum control, comfort and durability
• Coil-over shock for self-centering suspensions
• 8.35 in. Stroke Size
• 1.1875 in. Bore Size
• 1 Year, 100,000 Mile Warranty

Includes

Includes One (1) Shock Absorber

Warranty

1 Year, 100,000 Mile Warranty

Cross Reference

020273541, 020273541-4, 020273544, 044162S, 10-13051-001, 10-13776-000, 10-13859-000, 10-83203, 10023, 1012388000, 1012390000, 1012703000, 1013021000, 1013063000, 1013205000, 1013634000, 1013684000, 10147, 10147HD, 102-13441-10, 1021344110, 1023160201, 1080099, 1083203, 1085000, 1085005, 1085300, 1089000, 1091367, 11418, 11599, 1170719, 11931, 1210-0001, 1210-0002, 1210-0007, 1210-0009, 1210-0010, 1210-0012, 12100001, 12100005, 12100007, 12100009, 12100010, 12100012, 12111, 12111ADV, 12111AOV, 1250563B000, 1253069B000, 1266009B000, 1270563B000, 1270563B003, 1288503, 12J510, 1310002, 1310004, 1317570B001, 1360386, 1360386 MTM, 1360386MTM, 142108, 1431085MTM, 143699-0185, 1436990185, 14496, 14583, 1473224, 1491909, 1491909 MTM, 1491909MTM, 14QK-2108, 14QK-2108P1, 14QK2108, 14QK2108P1, 14QK3101M, 1540212, 1540459, 1583470, 16-14759-000, 16135, 1614759000, 16327, 16616, 16652, 16653, 16681, 16773, 16778, 17069, 17186, 17186-01, 1718601, 17358-01, 18800-01, 1880001, 20001, 20002, 200188, 20126, 2018987C3, 20273541, 202735414, 20273544, 2029200C91, 2034140, 2034140MTM, 20889, 21832, 22715, 23013, 2352401, 23566, 24088, 24125, 24392-01, 25621810, 26652, 27058, 280499, 290460, 29432, 30009612284, 301565, 301566, 301627, 301630, 3050961284, 3093252, 315399, 315411, 315546, 315552, 316319, 3199959, 341617, 341625, 341626, 341631, 345604, 345607, 345613, 345617, 345618, 373013401, 373013404, 373013409, 373013412, 3919056, 3919570, 3919913, 3919959, 3U2Z18124EA, 410040, 410056, 42006409, 42019189, 434237, 434277, 436028, 436118, 438013, 471700005079, 48632155, 4940627, 508-26, 508-9, 508-90, 50826, 50839, 50842, 50847, 50859, 510017, 517-05001-23, 517-05110-20, 517-05511-14, 517-05805-20, 517-05808-20, 5170511020, 5170551114, 5170580520, 5170580920, 520001, 524125, 53059, 5348631, 553209, 5559363, 557012, 57306608, 57306893, 57365416, 57365419, 57366634, 57366893, 57639, 58049, 58059, 59019, 59030, 5C3Z18125CF, 5U2Z18V124AA, 5U2Z18V124BA, 600-115994B, 600-11599M, 600-188206, 600104MT, 600115994B, 60011599C, 60011599M, 600188206, 601104, 61310232, 6216001, 62161, 630811, 632147, 632155, 632447, 64442AX, 64442AX MTM, 64442AXMTM, 646124, 646128, 64612840X, 646155, 646168, 646201, 64838001L, 64838002, 64838002L, 64838003L, 650416, 650416MT, 650419, 650419MT, 651056, 653511-01, 65351101, 65416, 65416M, 65419, 65419M, 65458, 65459, 654907, 65495-1, 654951, 65501, 656155, 65911, 659300, 660104MT, 660195, 660195MT, 6608, 661104, 66437, 66502, 66503, 66504, 66506, 665133, 665197, 665246, 66553-6, 665531, 665533, 665536, 66554540I, 665568, 665698, 665724, 665746, 665756, 66576-6, 665761, 665766, 665788, 665813, 665862, 665937, 665950, 66608, 66608M, 66634, 66634M, 66893, 66893M, 671707, 671948, 680268, 6803230200, 680341, 680467, 680509, 680547, 680565, 680568, 680571, 680591, 680616, 680702, 680756, 680769, 69670, 69672, 69715, 69732, 6KP857, 6KP857 MTM, 6KP857MTM, 700098-01, 70009801, 701071-01, 70107101, 70213601, 70623, 70642, 70654, 718718C, 718718CHD, 727603, 728600, 728630, 78013, 7C3418080DCB, 821952, 821954, 821955, 821970, 822158, 822345, 8235-83128, 8235-89436, 823583128, 823589436, 82401029, 82401054, 82401148, 83128, 83130, 83176204, 83176207, 83176211, 83176234, 83176240, 83203, 8320307, 83389, 83911, 84-1168, 85000, 8500007, 85000GA, 85000GAB, 85000HSK, 85005, 85029, 85030, 85043, 85051, 85052, 85137420, 85300, 85323, 85738, 85908, 85911, 85932, 85934, 88-1540, 88-1639, 88-1644, 881644, 8901020, 8901025, 8901030, 890120, 890414, 890449, 89419, 89430, 89436, 89436GSK, 89440, 90-1907-SP1, 90-2396-SP1, 9004162, 90044008, 90044071, 90044081, 90044086, 90044095, 90044162, 90044162S, 90044626, 90044685, 90044981, 90044982, 90044991, 90044992, 90045001, 90045003, 90045040, 90045054, 90045075, 90045298, 90045299, 90045331, 90045337, 90045564, 90045575, 90045666, 90045669, 902291, 902396SP1, 902627, 9423-00, 942300, 97220100008, 97221000170, 97999902634, 98583-019, 98583019, A-10023, A-11931, A-14496, A-14583, A-145B3, A-1667, A-1668, A-20001, A-20002, A-20126, A-20889, A-2232, A1-6-135, A10023, A11931, A14496, A14583, A16135, A1667, A1668, A20001, A20002, A20126, A20889, A21553, A646155, A665937, A83128, A83203, A85000, A85323, A89430, A89436, AMS600102, AMS600103, AMS600104, AMS600167, AMS600169, AMS600172, AMS600173, AMS650110, AMS650410, AMS650416, AMS650419, AMS650459, AMS660102, AMS660104, AMS660167, AMS660169, AMS660172, AMS660173, AMS660195, AMS660215, AMS660502, AMS660504, AMS66893, AMS700405, APL-101743, APL-101748, AR-1434, AR-2451, AR-718-C, AR-718-C-HD, AR-781, AR1434, AR2451, AR718C, AR718CHD, AR781, AS413, AS433, AS563B, ASHV1028, ASHV3, ASHV4, AT547, AT683, AT684, AT685, AT764, B-21832, B-22345, B-22715, B-23013, B-23014, B-23361, B-23566, B-24023, B-24088, B-24125, B-26652, B-27058, B-27747, B-29432, B-29678, B21832, B22715, B23013, B23361, B23566, B24023, B24088, B24125, B24577, B26652, B27058, B29432, B83203, BOOSTERSHOCK, C0062-D, C0062D, C0078, C6PF18077A, CAT730, CAT750, CAT803, CAT817, CAT824, CAT831, CAT832, CAT839, CAT853, CAT868, CAT910, CAT911, CAT919, CAT944, CAX-893, CAX893, D250826, DAY34183300, DN1085000, DN632147, DP34183300, DPM65416, DPM65419, DPM66502, DPM66608, DPM66634, DPM66893, E3129, E7XZ18125A, E83203, E83903, E83910, E83911, E85000, E89436, ECEMN66893, EIE3129, EIE83203, EIE85000, EIEMN66893, EMN65416, EMN65419, EMN66502, EMN66608, EMN66634, EMN66660, EMN66893, EMN6893, EU632147, EU632155, EU65416, EU65419, EU66634, EU66893, EU83911, EUE83203, EUE83903, EUE83910, EUE85000, EUEMN65416, EUEMN65419, EUEMN66502, EUEMN66608, EUEMN66634, EUEMN66893, EUEMN6893, EUSA65416, EUSA65419, EUSA66502, EUSA66634, EUSA66893, F4TZ18124D, F65416, F65419, F66502, F66608, F66634, F66893, F6HT18045AC, F6HT18045CC, F6HT18045EB, F6HT18045EC, F6HT18045HB, F6HZ18124C, F6HZ18124D, F6HZ18124E, F6HZ18124F, FF66893, FLF65416, FLF65419, FLF66502, FLF66608, FLF66634, FLF66893, FLL83203-07I, FLL8320307I, FLL85000-07I, FLL8500007I, FLS-632147, FLS-83128, FLS-83203, FLS-85000, FLS-85323, FLSD66893, GAB/83203, GAB/85000, GAB83203, GAB85000, GAB89436, GB-83128, GB83128, GBL 85000, GBL83128, GBL85000, GBL89436, GF83128, GF89436, GSX-89436, GTK-83128, GTK83128, H1632147, H1A14496, H53-20415-006, HEN/S23566, HENS-20001, HENS-20002, HENS-20126, HENS-22715, HENS-23566, HENS-24088, HENS20001, HENS20002, HENS20126, HENS22715, HENS23566, HENS24088, HOL90045298, HS83128, HTA200001, HTA200002, HTA20001, HTA20002, L57639, L59019, LT66893, LTL57639, LTL59019, M632147, M646155, M646177, M65416, M65419, M66437, M66502, M665937, M66608, M66634, M66893, M83128, M83203, M85000, M85323, M89436, MAE 66608, MAE66608, MB-37737-30, MBSA65419, MBSA66893, MI65416, MI65419, MI66502, MI66634, MI66893, MISA65416, MISA65419, MISA66502, MISA66634, MISA66893, MISA6893, MN65416, MN65419, MN6608, MN66502, MN66608, MN66634, MN66893, MN6893, MNEMN65416, MNEMN65419, MNEMN66502, MNEMN66634, MNEMN66893, MNSA65416, MNSA65419, MNSA66502, MNSA66634, MNSA66893, MO65416, MO65419, MO66502, MO66634, MO66893, MO6893, MON/65416, MON/66893, MON65416, MON66893, MR65419, MR66893, MS632147, MS632155, MS65416, MS65419, MS66502, MS66503, MS66608, MS66634, MS66893, MS6893, MSF66893, N65416, N65419, N66502, N66608, N66634, N66893, NE6893, NE90044162, NEW900-44-162, NEW900-45-054, NEW900-45-298, NEW900-45-299, NEW90044162, NEW90045298, NEW90045299, NS500699, NW57366893, NW6893, NW90044008, NW90044071, NW90044081, NW90044086, NW90044095, NW90044162, NW90044448, NW90045040, NY90044162, OE10455, Part Number, RA14496, RC SA3128, RC SA3203, RC SA5000, RC SA6155, RCSA3128, RCSA3203, RCSA5000, RCSA6155, RWAS563B, S-14583, S-1667, S-1668, S-20001, S-20002, S-20126, S-20889, S-21832, S-2230, S-2232, S-22345, S-22715, S-23013, S-23014, S-23566, S-24088, S-24125, S-24912, S-26652, S-29432, S-29678, S-F384, S14496, S14583, S1667, S1667HAA, S1668, S20001, S20002, S20126, S20889, S21832, S22715, S23013, S23361, S23566, S24023, S24088, S24125, S24577, S24912, S26652, S29432, S6009B, SA3128, SA5000, SA5323, SA6155, SA65416, SA65419, SA66502, SA66608, SA66634, SA66893, SA6893, SAF90045299, SD66893, SF384, SMR560403, SMR560407, SMR560408, TDA83128, TDA89436, TQA14496, TQS14496, TW34183300, UCD-006216-001, UCD-6216-1, UCD006216001, UCD6216001, UCD62161, UDS14496, UEY 1124001, V6F66893, VC85000, WSA0083203, WSA0085000, WSA0646155, XL2Z18125BA, Y34183300, ZYWSA0083203, ZYWSA0085000
