  • WABCO Front Axle Package - 4725003200 - 472 500 320 0

WABCO Front Axle Package - 4725003200 - 472 500 320 0

Back

Details

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

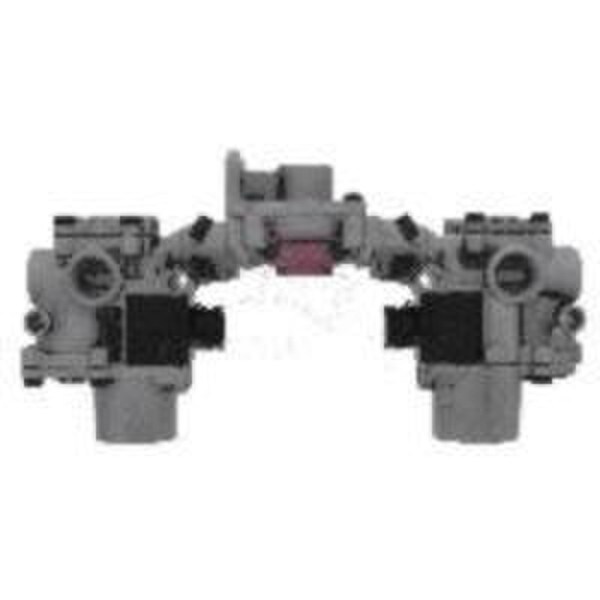

This front axle package provides an alternative to separate valve installation by combining a quick release valve with two ABS modulator valves. This valve package is compatible with C, D and E Version ECUs. It contains a DIN 72585-A1-3.1-Sn/K1 electrical connection; an 11 bar max operating pressure plus a .07 bar response pressure. The 12 volt unit has a IP66, IP69K protection class and a temperature range of -40°C to +80°C. Finally, it's Port thread measurements for 1 and 2.1 are 1/2 inch while Port 3 is the exhaust.


This product's warranty may depend on type and vocation. Please contact our customer service team for more details.


For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.


Back

Cross References

20434416, 2S4725001210, 3521342, 4006110400, 4721950529, 4721950760, 4721950770, 4725001200, 4725001209, 4725001210, 4725001230, 4725003210, 5010422777, 6300-4721950770, 6300-4725001210, 6300-4725001230, 6300-4725003200, 6300-4725003210, 8235-S4721950770, 8235-S4725001230, 8235-S4725003210, MERS4725000072, MERS4725001230, R950058, R950058NX, R955353, R955353NX, R955354, R955354NX, R955355, R955355NX, R955356, R955356NX, R955410, R955411, R955412, S472-195-076-0, S472-195-077-0, S472-500-120-0, S472-500-121-0, S472-500-123-0, S472-500-320-0, S472-500-321-0, S4721950760, S4721950770, S4725000062, S4725000067, S4725000072, S4725000077, S4725001200, S4725001210, S4725001230, S4725003200, S4725003210, TDAS4721950760, TDAS4721950770, TDAS4725001200, TDAS4725001210, TDAS4725001230, TDAS4725003200, TDAS4725003210, WAB4721950770, WAB4725001200, WAB4725001210, WAB4725001230, WAB4725003200, WAB4725003210, WN4725001210, WN4725001230, WO4721950770, ZDRS4725000072, ZN3040215

Back

Specifications

Operating Temperature Range-40°C to +80°C
Port Size12012
Crack Pressure4436
Brandwabco
SupersedesS4725003200
ProtectionIP66, IP69K
Voltage12V DC
MPN4725003200
Width19.49 in.
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height4.76 in.
Benefits

This front axle package provides an alternative to separate valve installation by combining a quick release valve with two ABS modulator valves. This valve package is compatible with C, D and E Version ECUs. It contains a DIN 72585-A1-3.1-Sn/K1 electrical connection; an 11 bar max operating pressure plus a .07 bar response pressure. The 12 volt unit has a IP66, IP69K protection class and a temperature range of -40°C to +80°C. Finally, it's Port thread measurements for 1 and 2.1 are 1/2 inch while Port 3 is the exhaust.


Features

  • Compatible with C, D and E Version ECUs
  • DIN 72585-A1-3.1-Sn/K1 electrical connection
  • 11 bar max operating pressure
  • .07 bar response pressure
  • 12 volts
    • IP66, IP69K protection class
  • Temperature range of -40°C to +80°C
    • ,
  • Port thread measurements for 1 and 2.1 are 1/2 inch while Port 3 is the exhaust

Includes

One front axle package


Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
