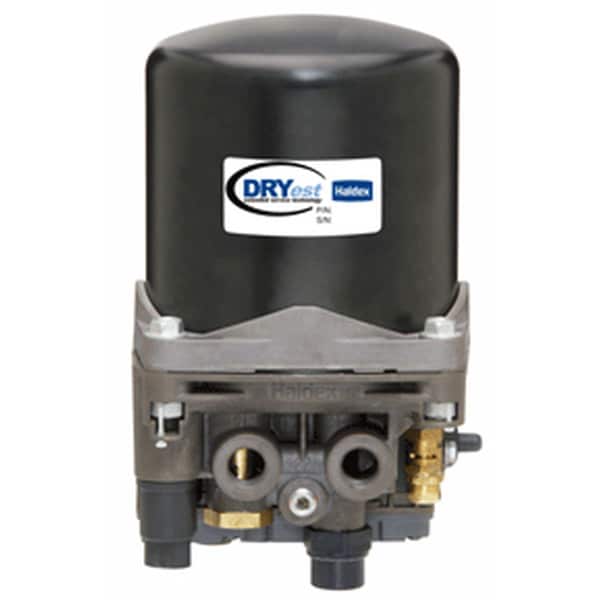

Haldex Dryer Assembly 12V - DA35200

Product Description

When it comes to your air and brake systems, not just any parts will do. Trust Haldex brake solutions for enhanced safety, environment, and vehicle dynamics. Haldex Dryer Assembly 12V - DA35200 has System Regeneration and Integrated Governor included. There are 5 Stages of Drying with an Inlet Temperature of -40 degrees F to 170 degrees F. Maximum Working Pressure of 150 psi with a Safety Relief Pressure of 160 psi. Drying Capacity is 5.8 SCF with a Desiccant Cartridge of 3.5 lbs. Assembly Weight is 13.5 lbs, Governor Cut-Out is 125‚plus/minus 5 psi. Maximum Inlet Airflow is 35 SCFM, Pressure Drop is 2.5 psi at 15 SCFM/120 psi and a Silencer type Regeneration Valve System Purge Drain. Turbo Protection is 35 psi. Inlet is required.

Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.

Haldex is a Sweden-based company that operates worldwide in 19 countries. Haldex develops and produces reliable and innovative solutions that improve safety, vehicle dynamics and environmental sustainability in the global commercial vehicle industry. They are one of the world-leading suppliers of brake and suspension solutions, and are developing new technology for electrical and autonomous vehicles. From air compressors and air dryers to valves and hose clamps, Haldex has everything you need to keep your brake and suspension systems at peak performance all year long. Invest in the best with Haldex.

Features

• System Regeneration: Yes
• Integrated Governor: Yes
• Stages of Drying: 5
• Inlet Temperature: -40 degrees F to 170 degrees F
• Maximum Working Pressure: 150 psi
• Safety Relief Pressure: 160 psi
• Drying Capacity: 5.8 SCF
• Desiccant Cartridge: 3.5 lbs
• Assembly Weight: 13.5 lbs
• Governor Cut-Out: 125‚plus/minus 5 psi
• Maximum Inlet Airflow: 35 SCFM
• Pressure Drop: 2.5 psi at 15 SCFM/120 psi
• Regeneration Valve System Purge Drain: Silencer
• Turbo Protection: 35 psi Inlet Required

Includes

One (1) air dryer assembly

Warranty

Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.

Cross Reference

47010013, 5396-DA35200, 5396DA35200, 767653283104, DA35200, DA35200-MD, DA35200M1D, DA35200MD, HDXDA35200, MBIDA35200, MIDDA35200, N4261, ZZDA35200
