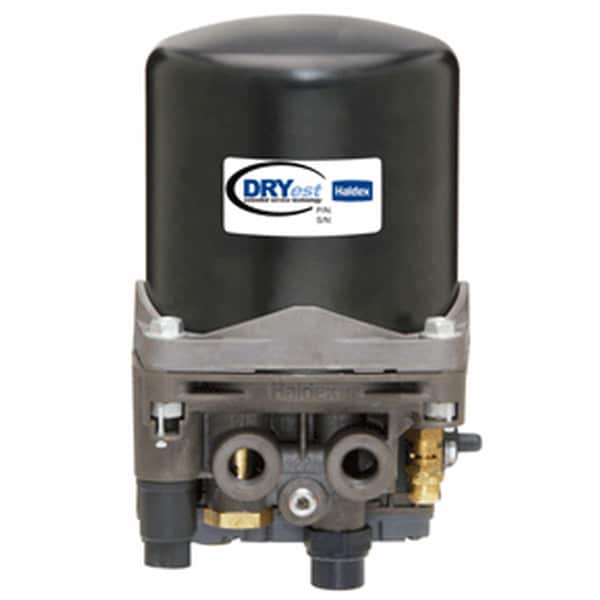

Haldex Air Dryer Assembly 24V - DA35230
Details
*THIS PART IS NON-RETURNABLE*
Product Description
When it comes to your air and brake systems, not just any parts will do. Trust Haldex brake solutions for enhanced safety, environment, and vehicle dynamics. Haldex Air Dryer Assembly 24V - DA35230 features an Integrated Governor with 5 Stages of Drying. Inlet Temperature is -40 degrees F to 170 degrees F. Maximum Working Pressure is 150 psi and Safety Relief Pressure is 160 psi. Drying Capacity is 5.8 SCF and Desiccant Cartridge is 3.5 lbs. Assembly Weight is 13.5 lbs and Governor Cut-Out is 135‚plus/minus 5 psi. Maximum Inlet Airflow is 35 SCFM and Pressure Drop is 2.5 psi at 15 SCFM/120 psi. Regeneration Valve System Purge Drain is Silencer and Turbo Protection is 35 psi. Inlet Required.
Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.
Haldex is a Sweden-based company that operates worldwide in 19 countries. Haldex develops and produces reliable and innovative solutions that improve safety, vehicle dynamics and environmental sustainability in the global commercial vehicle industry. They are one of the world-leading suppliers of brake and suspension solutions, and are developing new technology for electrical and autonomous vehicles. From air compressors and air dryers to valves and hose clamps, Haldex has everything you need to keep your brake and suspension systems at peak performance all year long. Invest in the best with Haldex.
Features
- Integrated Governor: Yes
- Stages of Drying: 5
- Inlet Temperature: -40 degrees F to 170 degrees F
- Maximum Working Pressure: 150 psi
- Safety Relief Pressure: 160 psi
- Drying Capacity: 5.8 SCF
- Desiccant Cartridge: 3.5 lbs
- Assembly Weight: 13.5 lbs
- Governor Cut-Out: 135‚plus/minus 5 psi
- Maximum Inlet Airflow: 35 SCFM
- Pressure Drop: 2.5 psi at 15 SCFM/120 psi
- Regeneration Valve System Purge Drain: Silencer
- Turbo Protection: 35 psi Inlet Required
Includes
One (1) air dryer and one (1) desiccant cartridge
Warranty
Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.
Cross Reference
N4261F
Specifications
| Brand | Haldex |
| MPN | DA35230 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | Integrated Governor is included with 5 Stages of Drying. Inlet Temperature is -40 degrees F to 170 degrees F. Maximum Working Pressure is 150 psi and Safety Relief Pressure is 160 psi. Drying Capacity is 5.8 SCF and Desiccant Cartridge is 3.5 lbs. Assembly Weight is 13.5 lbs and Governor Cut-Out is 135‚plus/minus 5 psi. Maximum Inlet Airflow is 35 SCFM and Pressure Drop is 2.5 psi at 15 SCFM/120 psi. Regeneration Valve System Purge Drain is Silencer and Turbo Protection is 35 psi. Inlet Required. |
