Meritor Genuine DRUM X30-LTWT - 53123771002

Product Description

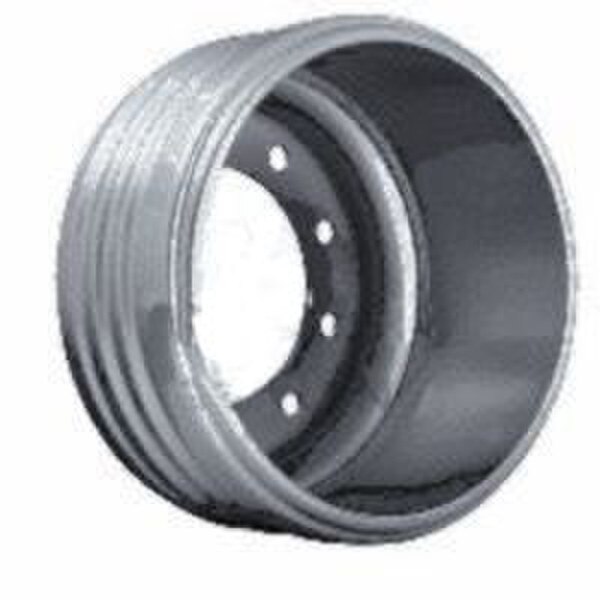

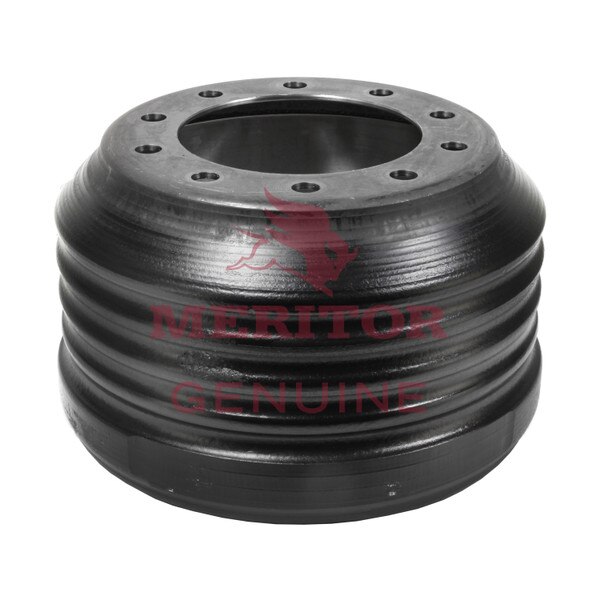

BRAKE DRUM - X30 BRAKE DRUM

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Axle Capacity: 23,000 lbs.
• Bolt Circle Diameter: 11.25 in.
• Bolt Hole Diameter: .94 in.
• Bolt Hole Number: 10
• Brake Diameter: 16.50 in.
• Brake Diameter: 16.50 in.
• Brake Shoe Width: 8.62 in.
• Brake Size: 16.50 in. x 8.62 in.
• Brake Surface Width: 9.07 in.
• Brake Width: 8.62 in.
• Drum Mounting: OUTBOARD
• Overall Depth: 11.16 in.
• Pilot Diameter: 8.78 in.
• Type: X30 Balanced
• Wheel Type: Disc

Includes

DRUM X30-LTWT

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

13104720, 53-123771-002, 53123771002, TDA-53-123771-002, TDA-53123771002, TDA53-123771-002, TDA53123771002
