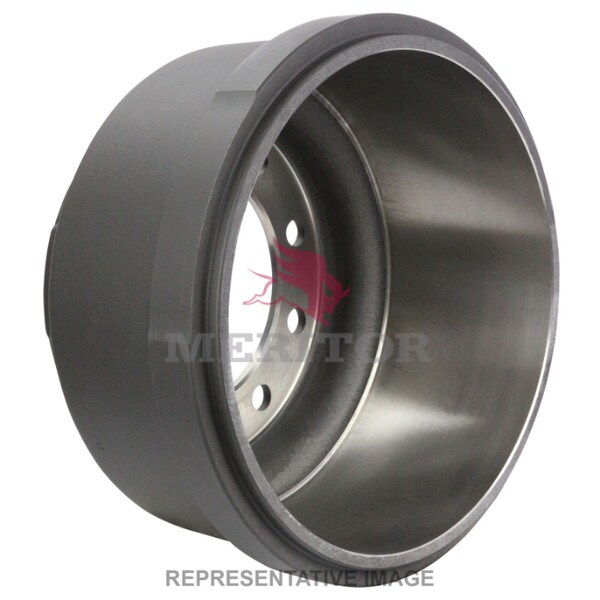

Meritor Drum/Cast CTI - 85123652002
Details
BRAKE DRUM, BALANCED
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor DRUM/CAST CTI - 85123652002 is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
123652, 3576X, 35BD76B, 8235-85123652002, 823585123652002, 85123652002, GUN3576X, KIC-54261-018, KIC54261018, TDA85123652002, TWD85123652002, ZBR3576X
Specifications
| Brand | Meritor |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Type / Style | simple |
| Benefits | DRUM/CAST CTI |
Features
- Axle Capacity: 30,000 lbs.
- Bolt Circle Diameter: 11.25 in.
- Bolt Hole Diameter: 1.00 in.
- Bolt Hole Number: 10
- Brake Diameter: 16.50 in.
- Brake Diameter: 16.50 in.
- Brake Shoe Width: 7.00 in.
- Brake Size: 16.50 in. x 7.00 in.
- Brake Surface Width: 7.60 in.
- Brake Width: 7.00 in.
- Drum Mounting: OUTBOARD
- Overall Depth: 10.54 in.
- Pilot Diameter: 8.78 in.
- Type: Cast Balanced
- Wheel Type: Disc
Includes
Meritor DRUM/CAST CTI - 85123652002
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
