Gunite Brake Drum, 16.50 x 7.00 - 3600A

Product Description

Typically, brake drums last for 150,000-200,000 miles; however, brake shoes and components will need replacement much sooner. When in need of replacement brake parts, turn to Gunite.

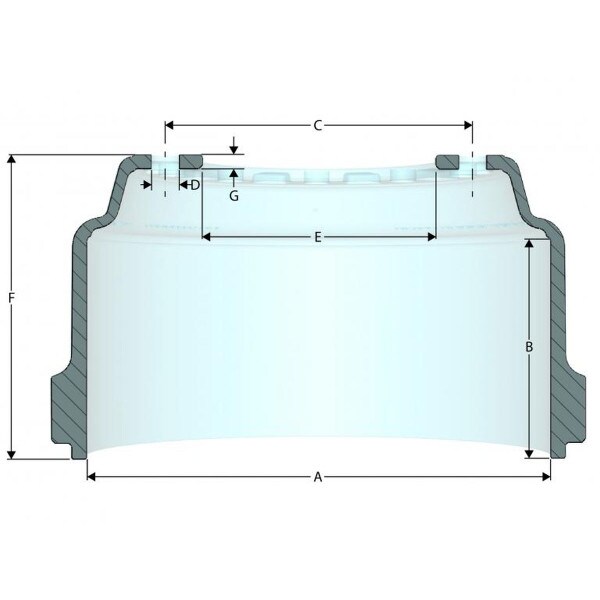

This brake drum features a brake surface diameter measurement of 16.5 inches and a brake surface width of 7.6 inches. The outboard brake drum has 10 bolt holes with a 11.25 inch bolt circle diameter and a bolt hole size of 1 inches. Its overall depth measures 10.56 inches and its pilot diameter measures 8.78 inches. Its maximum wear diameter is 16.62 inches. Mounting flange thickness measures .53 inches. Disc wheel.

Gunite parts come with a limited warranty. Contact us for more information.

Gunite brand products include brake drums, hubs, spoke wheels, rotors, and slack adjusters. Gunite Products are made or assembled in Rockford, IL for just-in-time delivery and OEM quality.

Features

• Designed for on highway applications

Includes

Brake Drum, Cast Iron, Outboard, 16.50x7.00

Warranty

Limited warranty

Cross Reference

03-00043, 03-05449, 03-123207-005, 03-123365-002, 03-123788-002, 10001776, 10001778, 10001800, 10009830, 100098301, 10009830A, 1000BD16701, 107150, 107885, 109681251, 1143B, 1202437, 123022, 123207, 123365, 123537, 1238660, 13-00043, 1302467, 13104765, 13123207, 151.6700BA, 151.6700BA-LW, 151.6726BA, 1516700BA, 1516700BALW, 1516726BA, 1648360C1, 1652871C1, 165X7BDRUM, 16792, 17QJ4116, 17QJ4123, 2308709, 2308712, 233566864B20, 233566864F20, 2359002, 2605072C1, 2608681C1, 27645, 300043, 305449, 306613, 3123022, 3123207, 3123207002, 3123207005, 3123365, 3123365002, 3123788002, 3188224, 33983600A, 33983922X, 33983922XTL, 3401X, 3518323, 3520485, 3570A, 3570AX, 3576X, 3600A, 3600AX, 3773X, 3853A, 3922X, 3946066, 42013918, 42021815, 43877, 4400B, 4865719, 519008, 519302, 53-123537, 53-123537-002, 53033, 5303301, 53033018, 53123537, 53123537002, 53123537002-RI, 53123537002RI, 533033-01, 5420201, 54261-018, 56864, 56864B, 60000-018, 60000018, 60001-01, 60001-018, 6000101, 60001018, 60793, 60794, 60794DT, 60794GU, 60794WE, 60864, 60864B, 61120, 61120DT, 61143GU, 65701, 65701F, 65719, 65719PB, 66774, 66864, 66864B, 66864B20, 66864F, 66864F20, 66864FFX, 66874, 66874B, 66884B, 66884F, 69996, 69996B, 76864B, 77864B, 77864BW, 80000-018, 80000018, 80002-018, 80002018, 8071947, 8235-53123537002, 823553123537002, 823585123365002, 85-123788-002, 85123207002, 85123788002, 89996B, 9006X, 904303, 96864B, 99864, A1657VB, ABPN42A, ATI53123537002, BD16.5X7BM, BD16.5X7BML, C25161, CMT10001776, CMT10009830, CON10009830, D:DB1657B, DAY123207, DB1657B, DB1657BSTW, DB1657U, DB1657USTW, DN03123022, DN03123207, DN03123207002, DN03123365, DN123022, DN123207, DN123365, DP03123207, DP123207, DR123207, DR16792, DR65701, DR66864, DR97173, DT03123207002, DT03123365, DT123207, DT123365, DT13123207, DU16792, DU60793, DU6185, DW03123207002, DW123207, DW123537, DW53123537, E9HZ1126A, ER27645, EU03123207002, F224935, FLT-4400B, FLT4400B, FVGUN3600A, GN3600A, GU3401, GU3401X, GU3570A, GU3570AX, GU3576, GU3593, GU3600, GU3600A, GUN 3600AX, GUN-3600A, GUN-3600AX, GUN/3600AX, GUN3600A, GUN3600AX, GUN3922X, GUN9006X, HDV1601B, HZ1126A, IH1648360C1, K12187, KE3401, KE3401X, KH3568, KH3570A, KH3593, KH3600A, KIC60001-018, KIC80002-018, KIC80002018, MAC/ZBR3922X, MER53-123537-002, MER53123537002, MOT89996B, MSWD66864F, MSWW66864F, MW2308709, MW89996B, N42A1657VB, NRX60794, ORT1601B, OTR1601, OTR1601B, OTR2601B, P865701, P865719, PC65701, PP1601B, PP65719, PROBD16.5X7, PROBD16.5X7BM, PROBD16.5X7BML, PROBD165X7, PX65719, RB03123207002, RB03123365002, RB53123537002, RE5303301, RW53-123537-002, RW53123537002, RY5303301, RY60001018, RZ53-123537-002, RZ53123537002, SBR89996B, STE89996B, TDA53123537, TDA53123537002, TLD103, TLD103V, UP3518323, UP3520485, UP3946066, UPWGV3946066, V3946066, W66774, WB-66864B, WB66864, WB66864B, WB66864F, WB66864FB, WB66884, WB66884B, WB66884F, WB66884FB, WD66864F, WE66864, WE66864B, WE66864F, WE66864F20, WE66884, WE66884B, WE69996, WE99864, WEB 77864BW, WEB-66864F, WEB/DB1657B, WEB/DU60793, WEB66864B, WEB66864B20, WEB66864F, WEB66864F20, WEB77864BW, WGV3946066, WLT-03-00043, WLT-13-00043, WW60794DT, WW60794GU, WW60794WE, WW61143GU, WW65701, WW65701F, WW66864, WW66864B, WW66864F, WW66884, WW66884B, WW66884F, WW69996B, WWD 56864BD, WWD 77864BW, WWD77864BW, WWP66864B20, X-60794, X60793B, X60794, X60794B, X:85123207, XX60794DT, XX60794GU, XX61120, XX61120DT, XX61143GU, Y123207, ZBR3600A, ZBR3600AX, ZBR3600E, ZBR3922X, ZBR9006X

Specifications
