Gunite Brake Drum 16.50 x 7.00 - 3112A
Details
Product Description
Typically, brake drums last for 150,000-200,000 miles; however, brake shoes and components will need replacement much sooner. When in need of replacement brake parts, turn to Gunite.

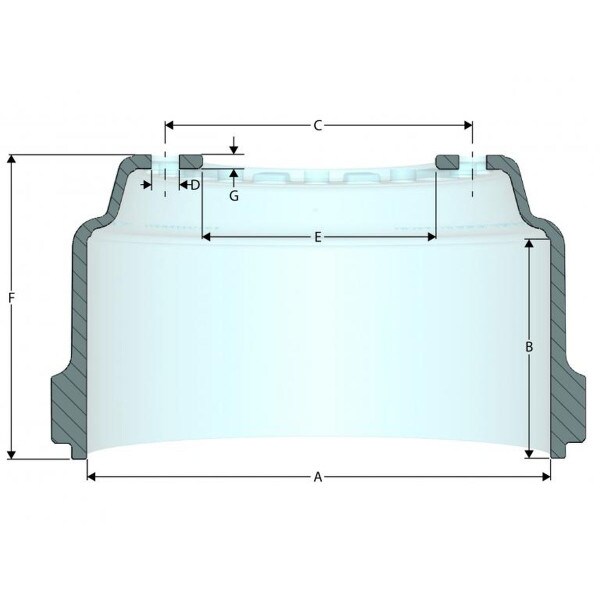

This brake drum features a brake surface diameter measurement of 16.5 inches and a brake surface width of 7.4 inches. The inboard brake drum has 6 bolt holes with a 12.75 inch bolt circle diameter and a bolt hole size of .78 inches. Its overall depth measures 8.22 inches and its pilot diameter measures 11.25 inches. Its maximum wear diameter is 16.62 inches. Mounting flange thickness measures .56 inches. Spoke wheel.
Gunite parts come with a limited warranty. Contact us for more information.
Gunite brand products include brake drums, hubs, spoke wheels, rotors, and slack adjusters. Gunite Products are made or assembled in Rockford, IL for just-in-time delivery and OEM quality.
Features
- Designed for on highway applications
Includes
Brake Drum, Cast Iron, Inboard, 16.50x7.00
Warranty
Limited warranty
Cross Reference
3112A, 61041, 61041GU, 61195WE, 63032, 63032F, DR63032, GU3265, WB63032, WB63032F, WE63032, WE63032F, WW61041GU, WW61195WE, WW63032, WW63032F, XX61041, XX61041GU, XX61195WE
Specifications
| Depth | 8.22 in. |
| Brand | Gunite |
| MPN | 3112A |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This brake drum features a brake surface diameter measurement of 16.5 inches and a brake surface width of 7.4 inches. The inboard brake drum has 6 bolt holes with a 12.75 inch bolt circle diameter and a bolt hole size of .78 inches. Its overall depth measures 8.22 inches and its pilot diameter measures 11.25 inches. Its maximum wear diameter is 16.62 inches. Mounting flange thickness measures .56 inches. Spoke wheel. |
