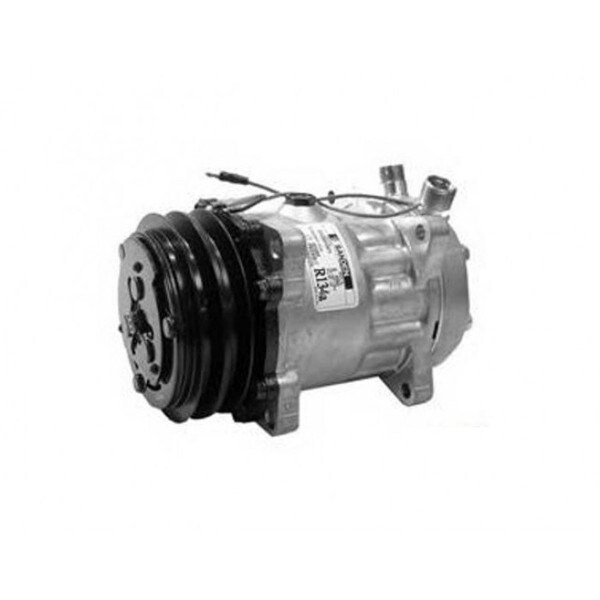

Red Dot SD7H15 Compressor - RD-5-10273-0P
Details
Product Description
Your HVAC unit may need replacement after 10 years; but if you notice leaks or cracks, it may be time to replace evaporators, condensers or compressors sooner than later to maintain comfort while driving your big rig. When in need of replacement HVAC parts, turn to Red Dot.
This SD7H15 model compressor features 7 pistons and 9.5 cubic inch 155cc displacement per revolution. With direct long mounting, this 12 volt compressor rotates clockwise and contains a GSA head ( 3/4 x 7/8 inch measurement) with laterpal pad positioning. This Red Dot compressor has 6,000 max allowed continuous R.P.M. and a R-12 / 134A refrigerant.
This product comes with a one year warranty.
Red Dot Corporation is one of the top names in the HVAC industry with a full line of HVAC components for all types of heavy-duty commercial vehicles. When in need of HVAC parts for your semi-truck, trust Red Dot for quality and reliability!
Features
- 7 pistons
- 9.5 cubic inch 155cc displacement per revolution
- Direct long mounting
- Rotates clockwise
- GSA head ( 3/4 x 7/8 inch measurement)
- 6,000 max allowed continuous R.P.M.
- R-12 / 134A refrigerant
Includes
Compressor
Warranty
1 year
Cross Reference
4731, 4424
Specifications
| Brand | Red Dot Corporation |
| MPN | 75R84292 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This SD7H15 model compressor features 7 pistons and 9.5 cubic inch 155cc displacement per revolution. With direct long mounting, this 12 volt compressor rotates clockwise and contains a GSA head ( 3/4 x 7/8 inch measurement) with laterpal pad positioning. This Red Dot compressor has 6,000 max allowed continuous R.P.M. and a R-12 / 134A refrigerant. |
