MGM TR3030T Combo Brake Welded, 2.5 In. - 3431951X / TR3030T - 3431951X
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

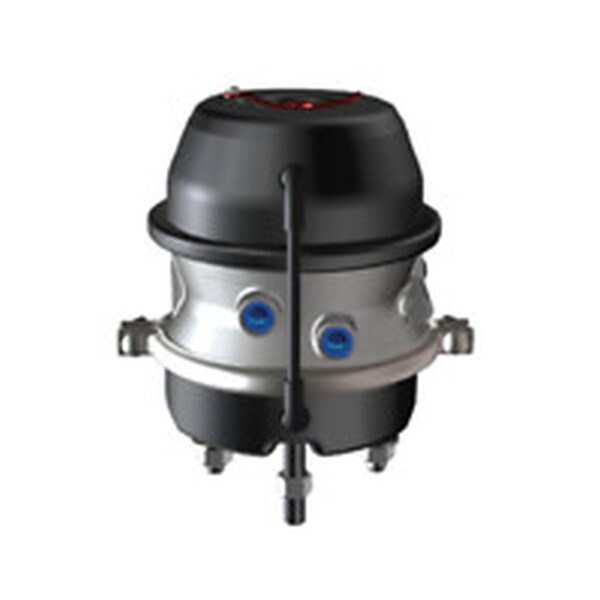

This TR3030T s-cam brake with breather tube is designed for parking brakes. The TR-T model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers a long life power spring (spring size is 30); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber. This aftermarket brake chamber with double diaphragm and standard stroke plus breather tube and welded yoke contains a service size of 30; port size measurement of 3/8-18 NPTF and a stroke of 2.5 inches. Its "A" measurement is 9.04 inches; "B" measurement is 6.71 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC and inlets are 3/8-18 NPTF. Y measures 2.25 inches. Package quantity is 20.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Spring size is 30
- Welded yoke
- Service size of 30
- Port size measurement of 3/8-18 NPTF
- Stroke of 2.5 inches
- "A" measurement is 9.04 inches
- "B" measurement is 6.71 inches
- "C" measurement is 8.32 inches
- "D" measurement is 8.21 inches
- "E" measurement is 4.75 inches
- "F" measurement is 5/8-11 UNC
- Inlets are 3/8-18 NPTF
- Y measures 2.25 inches
- Package quantity is 20
Includes
TR3030T s-cam brake with breather tube
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
3431951, 5554-3431951, 55543431951, MGM3431951, ZAJ3431951
Specifications
| Brand | mgm brakes |
| Model Number | TR3030T |
| MPN | 3431951X |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This TR3030T s-cam brake with breather tube is designed for parking brakes. The TR-T model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers a long life power spring (spring size is 30); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber. This aftermarket brake chamber with double diaphragm and standard stroke plus breather tube and welded yoke contains a service size of 30; port size measurement of 3/8-18 NPTF and a stroke of 2.5 inches. Its "A" measurement is 9.04 inches; "B" measurement is 6.71 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; "F" measurement is 5/8-11 UNC and inlets are 3/8-18 NPTF. Y measures 2.25 inches. Package quantity is 20. |
